Issues with import

[classbproject]

trafficstars

I've been trying to test an import with a few test parts. The headers of my CSV look like this:

I've selected the data fields for Distributors under System Preferences but they won't show up in the Import fields.

Maybe I do not understand how to work this. Is there a guide that can help me? Using version 1.2.0.

[Drachenkaetzchen]

1. The system preferences for parts have nothing to do with the import, it just defines which fields are required when entering new part data

2. There seems to be a bug that m:n relations aren't being displayed, I'll have a look into it

[Drachenkaetzchen]

I found and fixed the bug; you can check it out in the latest GIT version or wait until the next version is being released.

[classbproject]

I tried this and I'm still not able to do it. I cannot see where I can enter distributor names, their part numbers, manufacturer names and currency. I'm not able to map these fields to the fields that show on the left since I cannot find them in the list. The import does not list an error now but neither does the part show.

[Drachenkaetzchen]

Have you properly updated from GIT? The demo site shows the associations for distributor's name, currency and orderNumber:

I know that configuring the importer correctly is complex, but I currently don't have the spare time to prepare a documentation for that.

[classbproject]

I did the whole setup again on a different server and it doesn't show.

[Drachenkaetzchen]

Which version did you install?

[classbproject]

[Drachenkaetzchen]

Hmm, the git revision looks OK to me. Can you make a screenshot when you scroll down the field list in the importer?

[classbproject]

[Drachenkaetzchen]

This is very odd - can you double-check if the field mappings appear when you are using the demo system?

[classbproject]

Yes they do but only after I opened it in an incognito window. I guess its cached somewhere. I then opened my installation in an incognito window but no joy :(

[Drachenkaetzchen]

Well to be honest, I've seen such a behavior in the past, where some associations disappear without any clear reason. I thought at first that in your case the GIT version was old or that this might be a browser issue, but I guess the issue is back.

Note for myself: Seems that I need to refactor storage of m:n associations somehow, as it seems that ExtJS is not reliable in that regards.

I'm sorry that I can't provide an immediate fix :( . If you have ideas on how to reproduce or to narrow down the issue please let me know.

[classbproject]

:( Let me try to reinstall this on a separate server again. The last time I installed it the installation took a while but this time when I installed from git I just breezed through it. Not sure if there was something that I did there which may be causing this. Once I get this working and manage to successfully import a few part numbers, I can help you write the documentation for that.

[jaimelaborda]

Hi, Regarding this topic, I'm having problems to do some imports. Particularly I'm having some problems when trying to import parts with a Distributor or Manufacturer. Maybe I'm doing something wrong but I cannot manage to properly import Manufacturer or/and Distributor.

This is the .CSV file I'm trying to import:

Cust Part Number,Type,Description,Manufacturer 1,Manufacturer Part Number 1,Manufacturer 2,Manufacturer Part Number 2,Footprint,Cod. RS,Cod. Digikey,Cod. Farnell
URISEC0001,CAPACITOR,Cap Ceramic 1uF 10V X5R 10% 0603,KEMET,C0603C105K8PACTU,,,,461-2708 ,,
URISEC0002,CAPACITOR,Cap Ceramic 100nF 16V X7R 10% 0603,KEMET,C0603C104K4RACTU,,,,264-4630,,

There are two components.

This is the steps I have follow (in demo.partkeepr.org):

1. Open import dialog

2. Upload the CSV file: Parts are loaded correctly no issue there.

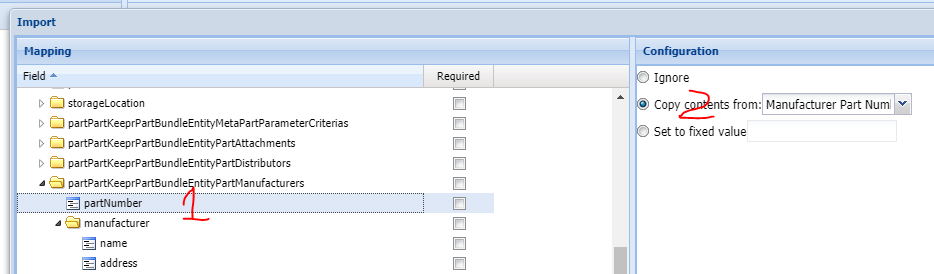

3. I do select partPartKeeprPartBundleEntityPartManufacturers, select "Create new item" and then enter partNumber as "Copy content from:" (image attached)

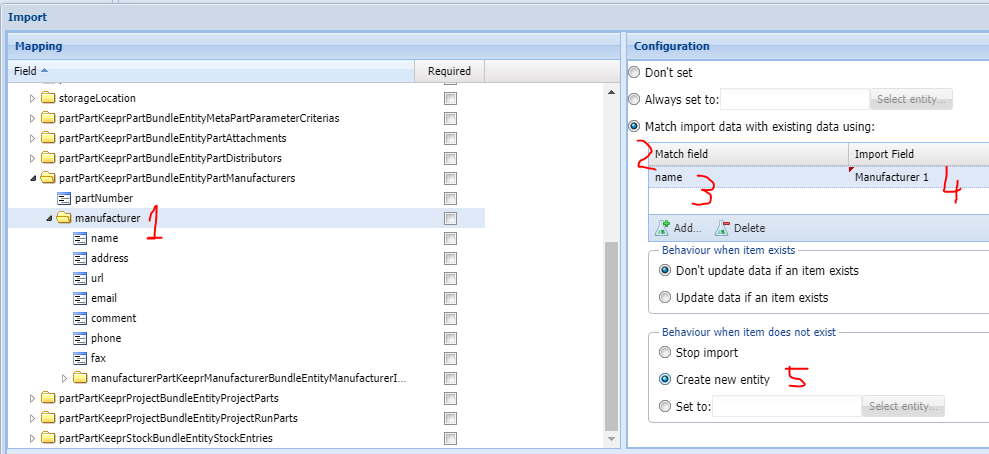

4. Select manufacturer "directory" and then the option to "Match import data with existing data using:". Then I select the manufacturer name match field with the Import Field in my CSV. (image attached)

These produce no result neither in the preview section or importing.

May I doing something wrong? There is some documentation to import parts¿? I have not found it.

Thank you very much.

Best regards, Jaime.
