IReactPackageBuilder AddMethod created methods don't work correctly

[MaciejNiklasinski]

trafficstars

Problem Description

Native Module method created by custom IReactPackageProvider are causing application fatal crash when callback function is given as a parameter. AddSyncMethod works correctly (in release). Adding initializer as well as consts via IReactPackageProvider also works correctly.

IReactPackageProvider is missing SetName() method, (had to comment it out) from Native Modules (advanced) tutorial but I don't think that's the reason for the crash.

Exactly the same methods created using [ReactMethod] Attribute called in exactly the same way are working correctly.

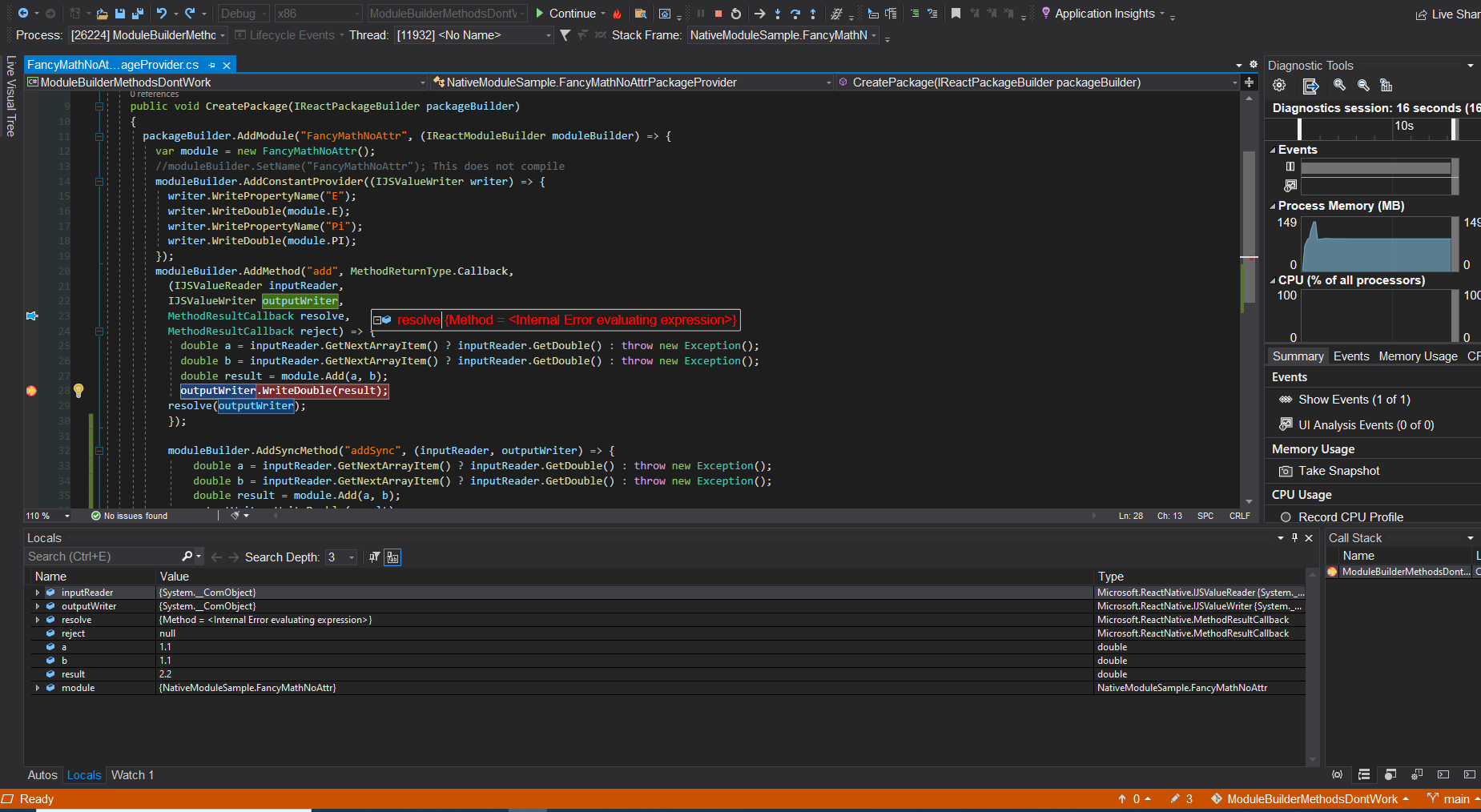

When debbuging AddMethod MethodDelegate I noticed that resolve delegate is in invalid state.

Debug build (Method = <Internal Error evaluating expression>):

Release build gave me few more details (Method = Evaluation of method System.Delegate.System.Delegate.get_Method() requires use of the static field Internal.Runtime.TypeLoader.CallConverterThunk.s_thunkPoolHeap, which is not available in this context.):

Tested both on RN 0.66.4 & RNW 0.66.25 as well as on RN 0.70.0 & RNW 0.70.0

Steps To Reproduce

Follow step-by-step Native Modules (advanced): https://microsoft.github.io/react-native-windows/docs/native-modules-advanced

Or

clone https://github.com/MaciejNiklasinski/ModuleBuilderMethodsDontWork yarn yarn start yarn windows

Expected Results

When "FancyMath" button is pressed to call the native module function, function returns result correctly When "FancyMathNoAttr - Async" button is pressed to call the native module function application will crash. When "FancyMath" button is pressed (in release) to call the native module function, function returns result correctly.

CLI version

6.4.0

Environment

System:
    OS: Windows 10 10.0.19044
    CPU: (32) x64 AMD Ryzen 9 5950X 16-Core Processor
    Memory: 51.35 GB / 63.91 GB
  Binaries:
    Node: 16.16.0 - C:\Program Files\nodejs\node.EXE
    Yarn: 1.22.19 - ~\AppData\Roaming\npm\yarn.CMD
    npm: 8.11.0 - C:\Program Files\nodejs\npm.CMD
    Watchman: Not Found
  SDKs:
    Android SDK: Not Found
    Windows SDK:
      AllowDevelopmentWithoutDevLicense: Enabled
      AllowAllTrustedApps: Enabled
      Versions: 10.0.16299.0, 10.0.17134.0, 10.0.17763.0, 10.0.18362.0, 10.0.19041.0, 10.0.22000.0
  IDEs:
    Android Studio: Not Found
    Visual Studio: 16.11.32802.440 (Visual Studio Community 2019)
  Languages:
    Java: Not Found
  npmPackages:
    @react-native-community/cli: Not Found
    react: 17.0.2 => 17.0.2
    react-native: 0.66.4 => 0.66.4
    react-native-windows: 0.66.25 => 0.66.25
  npmGlobalPackages:
    *react-native*: Not Found

Target Platform Version

10.0.19041

Target Device(s)

Desktop

Visual Studio Version

Visual Studio 2019

Build Configuration

Debug

Snack, code example, screenshot, or link to a repository

https://github.com/MaciejNiklasinski/ModuleBuilderMethodsDontWork

[asklar]

@vmoroz fyi

[chrisglein]

Appears to be a C# only issue. @jonthysell can you take a look?

[jonthysell]

The sample is incorrect. When calling the resolve callback, it needs the outputWriter to contain the input for a callback, i.e. a serialized array of argument values.

So you need to warp the result in an array:

outputWriter.WriteArrayBegin();
outputWriter.WriteDouble(result);
outputWriter.WriteArrayEnd();

Alternatively, you can use the generic helper and call outputWriter.WriteArgs(result); instead.

I will update the sample code in the docs.
