BUG: memory bitmap background image causing artifacts on Ubuntu 20.10
Hi all,
I'm trying to use distro Allegro 5.2.6 on Ubuntu 20.10. Here's a test case showing the problem I'm having. When using a memory bitmap for a background image. If I draw a sprite on top of it, I'm getting black boxes where I should be seeing the background color. It also seems to affect drawing primitives. test image and screen output are attached.
Everything works fine, if I use a video bitmap for the background bitmap (bg), there are no black regions. It only happens when I use a memory bitmap. I'm using a memory bitmap because I'm doing lots of al_put_pixel drawing to it.
What am I doing wrong?
Thanks, all.
p.s: I'd posted the issue to allegro.cc forums earlier, but no solution was found: https://www.allegro.cc/forums/thread/618400
#include <iostream>
#include <allegro5/allegro.h>
#include <allegro5/allegro_primitives.h>
#include <allegro5/allegro_image.h>
using namespace std;
int main()
{
al_init();
al_init_primitives_addon();
al_init_image_addon();
auto display= al_create_display(800, 600);
assert(display);
// load 32-bit sprite with alpha
ALLEGRO_BITMAP* sprite= al_load_bitmap("test2.png");
assert(sprite);
// create memory bitmap background image
auto old_flags= al_get_new_bitmap_flags();
auto old_fmt= al_get_new_bitmap_format();
// al_set_new_bitmap_flags(ALLEGRO_VIDEO_BITMAP); // NOTE: this works
al_set_new_bitmap_flags(ALLEGRO_MEMORY_BITMAP); // BUG: doesn't work
// al_set_new_bitmap_format(al_get_display_format(display));
ALLEGRO_BITMAP* bg= al_create_bitmap(320, 240);
al_set_target_bitmap(bg);
al_clear_to_color(al_map_rgb(0,0,255));
al_set_new_bitmap_flags(old_flags);
al_set_new_bitmap_format(old_fmt);
// draw everything to temp buffer
// it seems to be faster than scaling everything to display width
ALLEGRO_BITMAP* tmp= al_create_bitmap(320, 240);
al_set_target_bitmap(tmp);
al_clear_to_color(al_map_rgb(0,0,0));

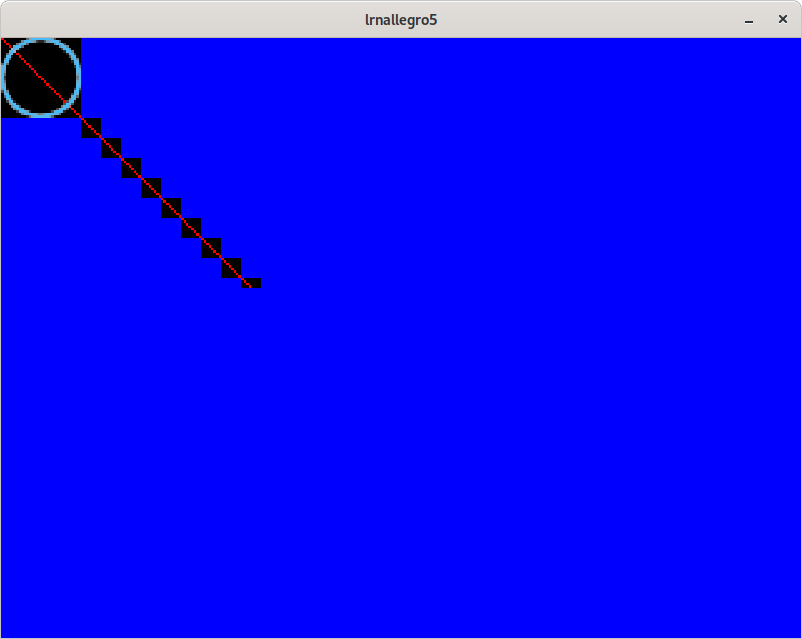

// BUG: black artifacts are appearing here if bg is a memory bitmap
al_draw_bitmap(bg, 0, 0, 0);
al_draw_line(0,0,100,100, al_map_rgb(255,0,0), 0);
al_draw_bitmap(sprite, 0, 0, 0);
// scale tmp buffer to display width
al_set_target_backbuffer(display);
al_clear_to_color(al_map_rgb(0,0,0));
al_draw_scaled_bitmap(tmp, 0, 0, al_get_bitmap_width(tmp), al_get_bitmap_height(tmp), 0, 0, al_get_display_width(display), al_get_display_height(display), 0);
al_flip_display();
getchar();
return 0;
}
hwinfo
=========
$ hwinfo --gfxcard
23: PCI 02.0: 0300 VGA compatible controller (VGA)
[Created at pci.386]
Unique ID: _Znp.euBZA_tOrq0
SysFS ID: /devices/pci0000:00/0000:00:02.0
SysFS BusID: 0000:00:02.0
Hardware Class: graphics card
Model: "Intel 4th Gen Core Processor Integrated Graphics Controller"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x0416 "4th Gen Core Processor Integrated Graphics Controller"
SubVendor: pci 0x1028 "Dell"
SubDevice: pci 0x060d
Revision: 0x06
Driver: "i915"
Driver Modules: "i915"
Memory Range: 0xf7400000-0xf77fffff (rw,non-prefetchable)
Memory Range: 0xd0000000-0xdfffffff (ro,non-prefetchable)
I/O Ports: 0xf000-0xf03f (rw)
Memory Range: 0x000c0000-0x000dffff (rw,non-prefetchable,disabled)
IRQ: 36 (3970864 events)
I/O Port: 0x00 (rw)
Module Alias: "pci:v00008086d00000416sv00001028sd0000060Dbc03sc00i00"
Driver Info #0:
Driver Status: i915 is active
Driver Activation Cmd: "modprobe i915"
Config Status: cfg=new, avail=yes, need=no, active=unknown
glxinfo:
==========
:~/src/allegro5/build$ glxinfo
name of display: :0
display: :0 screen: 0
direct rendering: Yes
server glx vendor string: SGI
server glx version string: 1.4
server glx extensions:
GLX_ARB_create_context, GLX_ARB_create_context_no_error,
GLX_ARB_create_context_profile, GLX_ARB_create_context_robustness,
GLX_ARB_fbconfig_float, GLX_ARB_framebuffer_sRGB, GLX_ARB_multisample,
GLX_EXT_create_context_es2_profile, GLX_EXT_create_context_es_profile,
GLX_EXT_fbconfig_packed_float, GLX_EXT_framebuffer_sRGB,
GLX_EXT_import_context, GLX_EXT_libglvnd, GLX_EXT_no_config_context,
GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating,
GLX_INTEL_swap_event, GLX_MESA_copy_sub_buffer, GLX_OML_swap_method,
GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
GLX_SGIX_visual_select_group, GLX_SGI_make_current_read,
GLX_SGI_swap_control
client glx vendor string: Mesa Project and SGI
client glx version string: 1.4
client glx extensions:
GLX_ARB_context_flush_control, GLX_ARB_create_context,
GLX_ARB_create_context_no_error, GLX_ARB_create_context_profile,
GLX_ARB_create_context_robustness, GLX_ARB_fbconfig_float,
GLX_ARB_framebuffer_sRGB, GLX_ARB_get_proc_address, GLX_ARB_multisample,
GLX_EXT_buffer_age, GLX_EXT_create_context_es2_profile,
GLX_EXT_create_context_es_profile, GLX_EXT_fbconfig_packed_float,
GLX_EXT_framebuffer_sRGB, GLX_EXT_import_context,
GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating,
GLX_INTEL_swap_event, GLX_MESA_copy_sub_buffer,
GLX_MESA_multithread_makecurrent, GLX_MESA_query_renderer,
GLX_MESA_swap_control, GLX_OML_swap_method, GLX_OML_sync_control,
GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
GLX_SGIX_visual_select_group, GLX_SGI_make_current_read,
GLX_SGI_swap_control, GLX_SGI_video_sync
GLX version: 1.4
GLX extensions:
GLX_ARB_create_context, GLX_ARB_create_context_no_error,
GLX_ARB_create_context_profile, GLX_ARB_create_context_robustness,
GLX_ARB_fbconfig_float, GLX_ARB_framebuffer_sRGB,
GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_buffer_age,
GLX_EXT_create_context_es2_profile, GLX_EXT_create_context_es_profile,
GLX_EXT_fbconfig_packed_float, GLX_EXT_framebuffer_sRGB,
GLX_EXT_import_context, GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info,
GLX_EXT_visual_rating, GLX_INTEL_swap_event, GLX_MESA_copy_sub_buffer,
GLX_MESA_query_renderer, GLX_MESA_swap_control, GLX_OML_swap_method,
GLX_OML_sync_control, GLX_SGIS_multisample, GLX_SGIX_fbconfig,
GLX_SGIX_pbuffer, GLX_SGIX_visual_select_group, GLX_SGI_make_current_read,
GLX_SGI_swap_control, GLX_SGI_video_sync
Extended renderer info (GLX_MESA_query_renderer):
Vendor: Intel Open Source Technology Center (0x8086)
Device: Mesa DRI Intel(R) HD Graphics 4600 (HSW GT2) (0x416)
Version: 20.2.6
Accelerated: yes
Video memory: 1536MB
Unified memory: yes
Preferred profile: core (0x1)
Max core profile version: 4.5
Max compat profile version: 3.0
Max GLES1 profile version: 1.1
Max GLES[23] profile version: 3.1
OpenGL vendor string: Intel Open Source Technology Center
OpenGL renderer string: Mesa DRI Intel(R) HD Graphics 4600 (HSW GT2)
OpenGL core profile version string: 4.5 (Core Profile) Mesa 20.2.6
OpenGL core profile shading language version string: 4.50
OpenGL core profile context flags: (none)
OpenGL core profile profile mask: core profile
OpenGL core profile extensions:
GL_3DFX_texture_compression_FXT1, GL_AMD_conservative_depth,
GL_AMD_draw_buffers_blend, GL_AMD_multi_draw_indirect,
GL_AMD_query_buffer_object, GL_AMD_seamless_cubemap_per_texture,
GL_AMD_shader_trinary_minmax, GL_AMD_texture_texture4,
GL_AMD_vertex_shader_layer, GL_AMD_vertex_shader_viewport_index,
GL_ANGLE_texture_compression_dxt3, GL_ANGLE_texture_compression_dxt5,
GL_APPLE_object_purgeable, GL_ARB_ES2_compatibility,
GL_ARB_ES3_1_compatibility, GL_ARB_ES3_compatibility,
GL_ARB_arrays_of_arrays, GL_ARB_base_instance, GL_ARB_blend_func_extended,
GL_ARB_buffer_storage, GL_ARB_clear_buffer_object, GL_ARB_clear_texture,
GL_ARB_clip_control, GL_ARB_compressed_texture_pixel_storage,
GL_ARB_compute_shader, GL_ARB_compute_variable_group_size,
GL_ARB_conditional_render_inverted, GL_ARB_conservative_depth,
GL_ARB_copy_buffer, GL_ARB_copy_image, GL_ARB_cull_distance,
GL_ARB_debug_output, GL_ARB_depth_buffer_float, GL_ARB_depth_clamp,
GL_ARB_derivative_control, GL_ARB_direct_state_access,
GL_ARB_draw_buffers, GL_ARB_draw_buffers_blend,
GL_ARB_draw_elements_base_vertex, GL_ARB_draw_indirect,
GL_ARB_draw_instanced, GL_ARB_enhanced_layouts,
GL_ARB_explicit_attrib_location, GL_ARB_explicit_uniform_location,
GL_ARB_fragment_coord_conventions, GL_ARB_fragment_layer_viewport,
GL_ARB_fragment_shader, GL_ARB_framebuffer_no_attachments,
GL_ARB_framebuffer_object, GL_ARB_framebuffer_sRGB,
GL_ARB_get_program_binary, GL_ARB_get_texture_sub_image, GL_ARB_gl_spirv,
GL_ARB_gpu_shader5, GL_ARB_gpu_shader_fp64, GL_ARB_half_float_pixel,
GL_ARB_half_float_vertex, GL_ARB_indirect_parameters,
GL_ARB_instanced_arrays, GL_ARB_internalformat_query,
GL_ARB_internalformat_query2, GL_ARB_invalidate_subdata,
GL_ARB_map_buffer_alignment, GL_ARB_map_buffer_range, GL_ARB_multi_bind,
GL_ARB_multi_draw_indirect, GL_ARB_occlusion_query2,
GL_ARB_parallel_shader_compile, GL_ARB_pipeline_statistics_query,
GL_ARB_pixel_buffer_object, GL_ARB_point_sprite,
GL_ARB_polygon_offset_clamp, GL_ARB_program_interface_query,
GL_ARB_provoking_vertex, GL_ARB_query_buffer_object,
GL_ARB_robust_buffer_access_behavior, GL_ARB_robustness,
GL_ARB_sample_shading, GL_ARB_sampler_objects, GL_ARB_seamless_cube_map,
GL_ARB_seamless_cubemap_per_texture, GL_ARB_separate_shader_objects,
GL_ARB_shader_atomic_counter_ops, GL_ARB_shader_atomic_counters,
GL_ARB_shader_bit_encoding, GL_ARB_shader_clock,
GL_ARB_shader_draw_parameters, GL_ARB_shader_group_vote,
GL_ARB_shader_image_load_store, GL_ARB_shader_image_size,
GL_ARB_shader_objects, GL_ARB_shader_precision,
GL_ARB_shader_storage_buffer_object, GL_ARB_shader_subroutine,
GL_ARB_shader_texture_image_samples, GL_ARB_shader_texture_lod,
GL_ARB_shader_viewport_layer_array, GL_ARB_shading_language_420pack,
GL_ARB_shading_language_include, GL_ARB_shading_language_packing,
GL_ARB_spirv_extensions, GL_ARB_stencil_texturing, GL_ARB_sync,
GL_ARB_tessellation_shader, GL_ARB_texture_barrier,
GL_ARB_texture_buffer_object, GL_ARB_texture_buffer_object_rgb32,
GL_ARB_texture_buffer_range, GL_ARB_texture_compression_bptc,
GL_ARB_texture_compression_rgtc, GL_ARB_texture_cube_map_array,
GL_ARB_texture_filter_anisotropic, GL_ARB_texture_float,
GL_ARB_texture_gather, GL_ARB_texture_mirror_clamp_to_edge,
GL_ARB_texture_multisample, GL_ARB_texture_non_power_of_two,
GL_ARB_texture_query_levels, GL_ARB_texture_query_lod,
GL_ARB_texture_rectangle, GL_ARB_texture_rg, GL_ARB_texture_rgb10_a2ui,
GL_ARB_texture_stencil8, GL_ARB_texture_storage,
GL_ARB_texture_storage_multisample, GL_ARB_texture_swizzle,
GL_ARB_texture_view, GL_ARB_timer_query, GL_ARB_transform_feedback2,
GL_ARB_transform_feedback3, GL_ARB_transform_feedback_instanced,
GL_ARB_transform_feedback_overflow_query, GL_ARB_uniform_buffer_object,
GL_ARB_vertex_array_bgra, GL_ARB_vertex_array_object,
GL_ARB_vertex_attrib_64bit, GL_ARB_vertex_attrib_binding,
GL_ARB_vertex_buffer_object, GL_ARB_vertex_shader,
GL_ARB_vertex_type_10f_11f_11f_rev, GL_ARB_vertex_type_2_10_10_10_rev,
GL_ARB_viewport_array, GL_ATI_blend_equation_separate,
GL_ATI_texture_float, GL_EXT_EGL_image_storage, GL_EXT_EGL_sync,
GL_EXT_abgr, GL_EXT_blend_equation_separate,
GL_EXT_demote_to_helper_invocation, GL_EXT_draw_buffers2,
GL_EXT_draw_instanced, GL_EXT_framebuffer_blit,
GL_EXT_framebuffer_multisample, GL_EXT_framebuffer_multisample_blit_scaled,
GL_EXT_framebuffer_object, GL_EXT_framebuffer_sRGB,
GL_EXT_packed_depth_stencil, GL_EXT_packed_float,
GL_EXT_pixel_buffer_object, GL_EXT_polygon_offset_clamp,
GL_EXT_provoking_vertex, GL_EXT_shader_framebuffer_fetch_non_coherent,
GL_EXT_shader_integer_mix, GL_EXT_shader_samples_identical,
GL_EXT_texture_array, GL_EXT_texture_compression_dxt1,
GL_EXT_texture_compression_rgtc, GL_EXT_texture_compression_s3tc,
GL_EXT_texture_filter_anisotropic, GL_EXT_texture_integer,
GL_EXT_texture_sRGB, GL_EXT_texture_sRGB_R8, GL_EXT_texture_sRGB_decode,
GL_EXT_texture_shadow_lod, GL_EXT_texture_shared_exponent,
GL_EXT_texture_snorm, GL_EXT_texture_swizzle, GL_EXT_timer_query,
GL_EXT_transform_feedback, GL_EXT_vertex_array_bgra,
GL_EXT_vertex_attrib_64bit, GL_IBM_multimode_draw_arrays,
GL_INTEL_blackhole_render, GL_INTEL_performance_query,
GL_KHR_blend_equation_advanced, GL_KHR_context_flush_control,
GL_KHR_debug, GL_KHR_no_error, GL_KHR_parallel_shader_compile,
GL_KHR_robust_buffer_access_behavior, GL_KHR_robustness,
GL_MESA_framebuffer_flip_y, GL_MESA_pack_invert,
GL_MESA_shader_integer_functions, GL_MESA_texture_signed_rgba,
GL_NV_compute_shader_derivatives, GL_NV_conditional_render,
GL_NV_depth_clamp, GL_NV_packed_depth_stencil, GL_NV_texture_barrier,
GL_OES_EGL_image, GL_S3_s3tc
OpenGL version string: 3.0 Mesa 20.2.6
OpenGL shading language version string: 1.30
OpenGL context flags: (none)
OpenGL extensions:
GL_3DFX_texture_compression_FXT1, GL_AMD_conservative_depth,
GL_AMD_draw_buffers_blend, GL_AMD_multi_draw_indirect,
GL_AMD_query_buffer_object, GL_AMD_seamless_cubemap_per_texture,
GL_AMD_shader_trinary_minmax, GL_AMD_texture_texture4,
GL_ANGLE_texture_compression_dxt3, GL_ANGLE_texture_compression_dxt5,
GL_APPLE_object_purgeable, GL_APPLE_packed_pixels,
GL_ARB_ES2_compatibility, GL_ARB_ES3_1_compatibility,
GL_ARB_ES3_compatibility, GL_ARB_arrays_of_arrays,
GL_ARB_blend_func_extended, GL_ARB_buffer_storage,
GL_ARB_clear_buffer_object, GL_ARB_clear_texture, GL_ARB_clip_control,
GL_ARB_color_buffer_float, GL_ARB_compressed_texture_pixel_storage,
GL_ARB_compute_shader, GL_ARB_compute_variable_group_size,
GL_ARB_conditional_render_inverted, GL_ARB_conservative_depth,
GL_ARB_copy_buffer, GL_ARB_copy_image, GL_ARB_cull_distance,
GL_ARB_debug_output, GL_ARB_depth_buffer_float, GL_ARB_depth_clamp,
GL_ARB_depth_texture, GL_ARB_derivative_control, GL_ARB_draw_buffers,
GL_ARB_draw_buffers_blend, GL_ARB_draw_elements_base_vertex,
GL_ARB_draw_indirect, GL_ARB_draw_instanced,
GL_ARB_explicit_attrib_location, GL_ARB_explicit_uniform_location,
GL_ARB_fragment_coord_conventions, GL_ARB_fragment_layer_viewport,
GL_ARB_fragment_program, GL_ARB_fragment_program_shadow,
GL_ARB_fragment_shader, GL_ARB_framebuffer_no_attachments,
GL_ARB_framebuffer_object, GL_ARB_framebuffer_sRGB,
GL_ARB_get_program_binary, GL_ARB_get_texture_sub_image, GL_ARB_gl_spirv,
GL_ARB_half_float_pixel, GL_ARB_half_float_vertex,
GL_ARB_indirect_parameters, GL_ARB_instanced_arrays,
GL_ARB_internalformat_query, GL_ARB_internalformat_query2,
GL_ARB_invalidate_subdata, GL_ARB_map_buffer_alignment,
GL_ARB_map_buffer_range, GL_ARB_multi_bind, GL_ARB_multi_draw_indirect,
GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_occlusion_query,
GL_ARB_occlusion_query2, GL_ARB_parallel_shader_compile,
GL_ARB_pipeline_statistics_query, GL_ARB_pixel_buffer_object,
GL_ARB_point_parameters, GL_ARB_point_sprite, GL_ARB_polygon_offset_clamp,
GL_ARB_program_interface_query, GL_ARB_provoking_vertex,
GL_ARB_query_buffer_object, GL_ARB_robust_buffer_access_behavior,
GL_ARB_robustness, GL_ARB_sample_shading, GL_ARB_sampler_objects,
GL_ARB_seamless_cube_map, GL_ARB_seamless_cubemap_per_texture,
GL_ARB_separate_shader_objects, GL_ARB_shader_atomic_counter_ops,
GL_ARB_shader_atomic_counters, GL_ARB_shader_bit_encoding,
GL_ARB_shader_clock, GL_ARB_shader_draw_parameters,
GL_ARB_shader_group_vote, GL_ARB_shader_image_load_store,
GL_ARB_shader_image_size, GL_ARB_shader_objects, GL_ARB_shader_precision,
GL_ARB_shader_storage_buffer_object, GL_ARB_shader_texture_image_samples,
GL_ARB_shader_texture_lod, GL_ARB_shading_language_100,
GL_ARB_shading_language_420pack, GL_ARB_shading_language_include,
GL_ARB_shading_language_packing, GL_ARB_shadow, GL_ARB_spirv_extensions,
GL_ARB_stencil_texturing, GL_ARB_sync, GL_ARB_texture_barrier,
GL_ARB_texture_border_clamp, GL_ARB_texture_compression,
GL_ARB_texture_compression_bptc, GL_ARB_texture_compression_rgtc,
GL_ARB_texture_cube_map, GL_ARB_texture_cube_map_array,
GL_ARB_texture_env_add, GL_ARB_texture_env_combine,
GL_ARB_texture_env_crossbar, GL_ARB_texture_env_dot3,
GL_ARB_texture_filter_anisotropic, GL_ARB_texture_float,
GL_ARB_texture_gather, GL_ARB_texture_mirror_clamp_to_edge,
GL_ARB_texture_mirrored_repeat, GL_ARB_texture_multisample,
GL_ARB_texture_non_power_of_two, GL_ARB_texture_query_levels,
GL_ARB_texture_query_lod, GL_ARB_texture_rectangle, GL_ARB_texture_rg,
GL_ARB_texture_rgb10_a2ui, GL_ARB_texture_stencil8,
GL_ARB_texture_storage, GL_ARB_texture_storage_multisample,
GL_ARB_texture_swizzle, GL_ARB_texture_view, GL_ARB_timer_query,
GL_ARB_transform_feedback2, GL_ARB_transform_feedback3,
GL_ARB_transform_feedback_instanced,
GL_ARB_transform_feedback_overflow_query, GL_ARB_transpose_matrix,
GL_ARB_uniform_buffer_object, GL_ARB_vertex_array_bgra,
GL_ARB_vertex_array_object, GL_ARB_vertex_attrib_binding,
GL_ARB_vertex_buffer_object, GL_ARB_vertex_program, GL_ARB_vertex_shader,
GL_ARB_vertex_type_10f_11f_11f_rev, GL_ARB_vertex_type_2_10_10_10_rev,
GL_ARB_window_pos, GL_ATI_blend_equation_separate, GL_ATI_draw_buffers,
GL_ATI_separate_stencil, GL_ATI_texture_env_combine3,
GL_ATI_texture_float, GL_EXT_EGL_image_storage, GL_EXT_EGL_sync,
GL_EXT_abgr, GL_EXT_bgra, GL_EXT_blend_color,
GL_EXT_blend_equation_separate, GL_EXT_blend_func_separate,
GL_EXT_blend_minmax, GL_EXT_blend_subtract, GL_EXT_compiled_vertex_array,
GL_EXT_copy_texture, GL_EXT_demote_to_helper_invocation,
GL_EXT_direct_state_access, GL_EXT_draw_buffers2, GL_EXT_draw_instanced,
GL_EXT_draw_range_elements, GL_EXT_fog_coord, GL_EXT_framebuffer_blit,
GL_EXT_framebuffer_multisample, GL_EXT_framebuffer_multisample_blit_scaled,
GL_EXT_framebuffer_object, GL_EXT_framebuffer_sRGB,
GL_EXT_gpu_program_parameters, GL_EXT_gpu_shader4,
GL_EXT_multi_draw_arrays, GL_EXT_packed_depth_stencil,
GL_EXT_packed_float, GL_EXT_packed_pixels, GL_EXT_pixel_buffer_object,
GL_EXT_point_parameters, GL_EXT_polygon_offset_clamp,
GL_EXT_provoking_vertex, GL_EXT_rescale_normal, GL_EXT_secondary_color,
GL_EXT_separate_specular_color,
GL_EXT_shader_framebuffer_fetch_non_coherent, GL_EXT_shader_integer_mix,
GL_EXT_shader_samples_identical, GL_EXT_shadow_funcs,
GL_EXT_stencil_two_side, GL_EXT_stencil_wrap, GL_EXT_subtexture,
GL_EXT_texture, GL_EXT_texture3D, GL_EXT_texture_array,
GL_EXT_texture_compression_dxt1, GL_EXT_texture_compression_rgtc,
GL_EXT_texture_compression_s3tc, GL_EXT_texture_cube_map,
GL_EXT_texture_edge_clamp, GL_EXT_texture_env_add,
GL_EXT_texture_env_combine, GL_EXT_texture_env_dot3,
GL_EXT_texture_filter_anisotropic, GL_EXT_texture_integer,
GL_EXT_texture_lod_bias, GL_EXT_texture_object, GL_EXT_texture_rectangle,
GL_EXT_texture_sRGB, GL_EXT_texture_sRGB_R8, GL_EXT_texture_sRGB_decode,
GL_EXT_texture_shadow_lod, GL_EXT_texture_shared_exponent,
GL_EXT_texture_snorm, GL_EXT_texture_swizzle, GL_EXT_timer_query,
GL_EXT_transform_feedback, GL_EXT_vertex_array, GL_EXT_vertex_array_bgra,
GL_IBM_multimode_draw_arrays, GL_IBM_rasterpos_clip,
GL_IBM_texture_mirrored_repeat, GL_INGR_blend_func_separate,
GL_INTEL_blackhole_render, GL_INTEL_performance_query,
GL_KHR_blend_equation_advanced, GL_KHR_context_flush_control,
GL_KHR_debug, GL_KHR_no_error, GL_KHR_parallel_shader_compile,
GL_KHR_robust_buffer_access_behavior, GL_KHR_robustness,
GL_MESA_pack_invert, GL_MESA_shader_integer_functions,
GL_MESA_texture_signed_rgba, GL_MESA_window_pos, GL_NV_blend_square,
GL_NV_compute_shader_derivatives, GL_NV_conditional_render,
GL_NV_depth_clamp, GL_NV_fog_distance, GL_NV_light_max_exponent,
GL_NV_packed_depth_stencil, GL_NV_primitive_restart,
GL_NV_texgen_reflection, GL_NV_texture_barrier,
GL_NV_texture_env_combine4, GL_NV_texture_rectangle, GL_OES_EGL_image,
GL_OES_read_format, GL_S3_s3tc, GL_SGIS_generate_mipmap,
GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp,
GL_SGIS_texture_lod, GL_SUN_multi_draw_arrays
OpenGL ES profile version string: OpenGL ES 3.1 Mesa 20.2.6
OpenGL ES profile shading language version string: OpenGL ES GLSL ES 3.10
OpenGL ES profile extensions:
GL_ANGLE_texture_compression_dxt3, GL_ANGLE_texture_compression_dxt5,
GL_APPLE_texture_max_level, GL_EXT_EGL_image_storage,
GL_EXT_base_instance, GL_EXT_blend_func_extended, GL_EXT_blend_minmax,
GL_EXT_buffer_storage, GL_EXT_clip_control, GL_EXT_clip_cull_distance,
GL_EXT_color_buffer_float, GL_EXT_compressed_ETC1_RGB8_sub_texture,
GL_EXT_copy_image, GL_EXT_demote_to_helper_invocation, GL_EXT_depth_clamp,
GL_EXT_discard_framebuffer, GL_EXT_disjoint_timer_query,
GL_EXT_draw_buffers, GL_EXT_draw_buffers_indexed,
GL_EXT_draw_elements_base_vertex, GL_EXT_draw_instanced,
GL_EXT_float_blend, GL_EXT_frag_depth, GL_EXT_geometry_point_size,
GL_EXT_geometry_shader, GL_EXT_gpu_shader5, GL_EXT_map_buffer_range,
GL_EXT_multi_draw_arrays, GL_EXT_occlusion_query_boolean,
GL_EXT_polygon_offset_clamp, GL_EXT_primitive_bounding_box,
GL_EXT_read_format_bgra, GL_EXT_render_snorm, GL_EXT_robustness,
GL_EXT_sRGB_write_control, GL_EXT_separate_shader_objects,
GL_EXT_shader_framebuffer_fetch_non_coherent, GL_EXT_shader_group_vote,
GL_EXT_shader_implicit_conversions, GL_EXT_shader_integer_mix,
GL_EXT_shader_io_blocks, GL_EXT_shader_samples_identical,
GL_EXT_tessellation_point_size, GL_EXT_tessellation_shader,
GL_EXT_texture_border_clamp, GL_EXT_texture_buffer,
GL_EXT_texture_compression_bptc, GL_EXT_texture_compression_dxt1,
GL_EXT_texture_compression_rgtc, GL_EXT_texture_compression_s3tc,
GL_EXT_texture_compression_s3tc_srgb, GL_EXT_texture_cube_map_array,
GL_EXT_texture_filter_anisotropic, GL_EXT_texture_format_BGRA8888,
GL_EXT_texture_norm16, GL_EXT_texture_query_lod, GL_EXT_texture_rg,
GL_EXT_texture_sRGB_R8, GL_EXT_texture_sRGB_decode,
GL_EXT_texture_shadow_lod, GL_EXT_texture_type_2_10_10_10_REV,
GL_EXT_unpack_subimage, GL_INTEL_blackhole_render,
GL_INTEL_performance_query, GL_KHR_blend_equation_advanced,
GL_KHR_context_flush_control, GL_KHR_debug, GL_KHR_no_error,
GL_KHR_parallel_shader_compile, GL_KHR_robust_buffer_access_behavior,
GL_KHR_robustness, GL_MESA_framebuffer_flip_y,
GL_MESA_shader_integer_functions, GL_NV_conditional_render,
GL_NV_draw_buffers, GL_NV_fbo_color_attachments, GL_NV_image_formats,
GL_NV_pixel_buffer_object, GL_NV_read_buffer, GL_NV_read_depth,
GL_NV_read_depth_stencil, GL_NV_read_stencil, GL_OES_EGL_image,
GL_OES_EGL_image_external, GL_OES_EGL_image_external_essl3,
GL_OES_EGL_sync, GL_OES_compressed_ETC1_RGB8_texture, GL_OES_copy_image,
GL_OES_depth24, GL_OES_depth_texture, GL_OES_depth_texture_cube_map,
GL_OES_draw_buffers_indexed, GL_OES_draw_elements_base_vertex,
GL_OES_element_index_uint, GL_OES_fbo_render_mipmap,
GL_OES_geometry_point_size, GL_OES_geometry_shader,
GL_OES_get_program_binary, GL_OES_gpu_shader5, GL_OES_mapbuffer,
GL_OES_packed_depth_stencil, GL_OES_primitive_bounding_box,
GL_OES_required_internalformat, GL_OES_rgb8_rgba8, GL_OES_sample_shading,
GL_OES_sample_variables, GL_OES_shader_image_atomic,
GL_OES_shader_io_blocks, GL_OES_shader_multisample_interpolation,
GL_OES_standard_derivatives, GL_OES_stencil8, GL_OES_surfaceless_context,
GL_OES_tessellation_point_size, GL_OES_tessellation_shader,
GL_OES_texture_3D, GL_OES_texture_border_clamp, GL_OES_texture_buffer,
GL_OES_texture_cube_map_array, GL_OES_texture_float,
GL_OES_texture_float_linear, GL_OES_texture_half_float,
GL_OES_texture_half_float_linear, GL_OES_texture_npot,
GL_OES_texture_stencil8, GL_OES_texture_storage_multisample_2d_array,
GL_OES_vertex_array_object, GL_OES_vertex_half_float,
GL_OES_viewport_array
90 GLX Visuals
visual x bf lv rg d st colorbuffer sr ax dp st accumbuffer ms cav
id dep cl sp sz l ci b ro r g b a F gb bf th cl r g b a ns b eat
----------------------------------------------------------------------------
0x021 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x022 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x145 24 tc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x146 24 tc 0 32 0 r . . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x147 24 tc 0 32 0 r . . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x148 24 tc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x149 24 tc 0 24 0 r . . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x14a 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x14b 24 tc 0 24 0 r . . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x14c 24 tc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x14d 24 tc 0 32 0 r . . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x14e 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x14f 24 tc 0 32 0 r . . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x150 24 tc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 0 0 None
0x151 24 tc 0 24 0 r . . 8 8 8 0 . s 0 0 0 0 0 0 0 0 0 None
0x152 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x153 24 tc 0 24 0 r . . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x154 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x155 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 16 16 16 16 0 0 Slow
0x156 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x157 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 16 16 16 0 0 0 Slow
0x158 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x159 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 16 16 16 16 0 0 Slow
0x15a 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x15b 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 16 16 16 0 0 0 Slow
0x15c 24 tc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 4 1 None
0x15d 24 tc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 8 1 None
0x15e 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 4 1 None
0x15f 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 8 1 None
0x160 24 tc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 4 1 None
0x161 24 tc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 8 1 None
0x162 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 4 1 None
0x163 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 8 1 None
0x164 24 tc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 4 1 None
0x165 24 tc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 8 1 None
0x166 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 4 1 None
0x167 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 8 1 None
0x168 24 tc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 4 1 None
0x169 24 tc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 8 1 None
0x16a 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 4 1 None
0x16b 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 8 1 None
0x16c 24 dc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x16d 24 dc 0 32 0 r . . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x16e 24 dc 0 32 0 r . . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x16f 24 dc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x170 24 dc 0 24 0 r . . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x171 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x172 24 dc 0 24 0 r . . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x173 24 dc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x174 24 dc 0 32 0 r . . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x175 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x176 24 dc 0 32 0 r . . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x177 24 dc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 0 0 None
0x178 24 dc 0 24 0 r . . 8 8 8 0 . s 0 0 0 0 0 0 0 0 0 None
0x179 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x17a 24 dc 0 24 0 r . . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x17b 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x17c 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 16 16 16 16 0 0 Slow
0x17d 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x17e 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 16 16 16 0 0 0 Slow
0x17f 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x180 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 16 16 16 16 0 0 Slow
0x181 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x182 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 16 16 16 0 0 0 Slow
0x183 24 dc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 4 1 None
0x184 24 dc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 8 1 None
0x185 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 4 1 None
0x186 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 8 1 None
0x187 24 dc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 4 1 None
0x188 24 dc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 8 1 None
0x189 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 4 1 None
0x18a 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 8 1 None
0x18b 24 dc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 4 1 None
0x18c 24 dc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 8 1 None
0x18d 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 4 1 None
0x18e 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 8 1 None
0x18f 24 dc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 4 1 None
0x190 24 dc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 8 1 None
0x191 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 4 1 None
0x192 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 8 1 None
0x0d6 32 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x193 32 tc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x194 32 tc 0 32 0 r . . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x195 32 tc 0 32 0 r . . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x196 32 tc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x197 32 tc 0 32 0 r . . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x198 32 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x199 32 tc 0 32 0 r . . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x19a 32 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x19b 32 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
110 GLXFBConfigs:
visual x bf lv rg d st colorbuffer sr ax dp st accumbuffer ms cav
id dep cl sp sz l ci b ro r g b a F gb bf th cl r g b a ns b eat
----------------------------------------------------------------------------
0x0d7 0 tc 0 16 0 r y . 5 6 5 0 . . 0 0 0 0 0 0 0 0 0 None
0x0d8 0 tc 0 16 0 r . . 5 6 5 0 . . 0 0 0 0 0 0 0 0 0 None
0x0d9 0 tc 0 16 0 r y . 5 6 5 0 . . 0 24 8 0 0 0 0 0 0 None
0x0da 0 tc 0 16 0 r . . 5 6 5 0 . . 0 24 8 0 0 0 0 0 0 None
0x0db 24 tc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x0dc 24 tc 0 32 0 r . . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x0dd 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x0de 24 tc 0 32 0 r . . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x0df 24 tc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x0e0 24 tc 0 24 0 r . . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x0e1 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x0e2 24 tc 0 24 0 r . . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x0e3 24 tc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x0e4 24 tc 0 32 0 r . . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x0e5 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x0e6 24 tc 0 32 0 r . . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x0e7 24 tc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 0 0 None
0x0e8 24 tc 0 24 0 r . . 8 8 8 0 . s 0 0 0 0 0 0 0 0 0 None
0x0e9 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x0ea 24 tc 0 24 0 r . . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x0eb 0 tc 0 16 0 r y . 5 6 5 0 . . 0 24 8 0 0 0 0 0 0 None
0x0ec 0 tc 0 16 0 r y . 5 6 5 0 . . 0 24 8 16 16 16 0 0 0 Slow
0x0ed 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x0ee 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 16 16 16 16 0 0 Slow
0x0ef 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x0f0 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 16 16 16 0 0 0 Slow
0x0f1 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x0f2 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 16 16 16 16 0 0 Slow
0x0f3 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x0f4 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 16 16 16 0 0 0 Slow
0x0f5 0 tc 0 16 0 r y . 5 6 5 0 . . 0 0 0 0 0 0 0 4 1 None
0x0f6 0 tc 0 16 0 r y . 5 6 5 0 . . 0 0 0 0 0 0 0 8 1 None
0x0f7 0 tc 0 16 0 r y . 5 6 5 0 . . 0 24 8 0 0 0 0 4 1 None
0x0f8 0 tc 0 16 0 r y . 5 6 5 0 . . 0 24 8 0 0 0 0 8 1 None
0x0f9 24 tc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 4 1 None
0x0fa 24 tc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 8 1 None
0x0fb 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 4 1 None
0x0fc 24 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 8 1 None
0x0fd 24 tc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 4 1 None
0x0fe 24 tc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 8 1 None
0x0ff 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 4 1 None
0x100 24 tc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 8 1 None
0x101 24 tc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 4 1 None
0x102 24 tc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 8 1 None
0x103 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 4 1 None
0x104 24 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 8 1 None
0x105 24 tc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 4 1 None
0x106 24 tc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 8 1 None
0x107 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 4 1 None
0x108 24 tc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 8 1 None
0x109 0 dc 0 16 0 r y . 5 6 5 0 . . 0 0 0 0 0 0 0 0 0 None
0x10a 0 dc 0 16 0 r . . 5 6 5 0 . . 0 0 0 0 0 0 0 0 0 None
0x10b 0 dc 0 16 0 r y . 5 6 5 0 . . 0 24 8 0 0 0 0 0 0 None
0x10c 0 dc 0 16 0 r . . 5 6 5 0 . . 0 24 8 0 0 0 0 0 0 None
0x10d 24 dc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x10e 24 dc 0 32 0 r . . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x10f 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x110 24 dc 0 32 0 r . . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x111 24 dc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x112 24 dc 0 24 0 r . . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x113 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x114 24 dc 0 24 0 r . . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x115 24 dc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x116 24 dc 0 32 0 r . . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x117 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x118 24 dc 0 32 0 r . . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x119 24 dc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 0 0 None
0x11a 24 dc 0 24 0 r . . 8 8 8 0 . s 0 0 0 0 0 0 0 0 0 None
0x11b 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x11c 24 dc 0 24 0 r . . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x11d 0 dc 0 16 0 r y . 5 6 5 0 . . 0 24 8 0 0 0 0 0 0 None
0x11e 0 dc 0 16 0 r y . 5 6 5 0 . . 0 24 8 16 16 16 0 0 0 Slow
0x11f 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x120 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 16 16 16 16 0 0 Slow
0x121 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x122 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 16 16 16 0 0 0 Slow
0x123 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x124 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 16 16 16 16 0 0 Slow
0x125 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 0 0 None
0x126 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 16 16 16 0 0 0 Slow
0x127 0 dc 0 16 0 r y . 5 6 5 0 . . 0 0 0 0 0 0 0 4 1 None
0x128 0 dc 0 16 0 r y . 5 6 5 0 . . 0 0 0 0 0 0 0 8 1 None
0x129 0 dc 0 16 0 r y . 5 6 5 0 . . 0 24 8 0 0 0 0 4 1 None
0x12a 0 dc 0 16 0 r y . 5 6 5 0 . . 0 24 8 0 0 0 0 8 1 None
0x12b 24 dc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 4 1 None
0x12c 24 dc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 8 1 None
0x12d 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 4 1 None
0x12e 24 dc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 8 1 None
0x12f 24 dc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 4 1 None
0x130 24 dc 0 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 8 1 None
0x131 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 4 1 None
0x132 24 dc 0 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 8 1 None
0x133 24 dc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 4 1 None
0x134 24 dc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 8 1 None
0x135 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 4 1 None
0x136 24 dc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 8 1 None
0x137 24 dc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 4 1 None
0x138 24 dc 0 24 0 r y . 8 8 8 0 . s 0 0 0 0 0 0 0 8 1 None
0x139 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 4 1 None
0x13a 24 dc 0 24 0 r y . 8 8 8 0 . s 0 24 8 0 0 0 0 8 1 None
0x13b 32 tc 0 32 0 r y . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x13c 32 tc 0 32 0 r . . 8 8 8 8 . . 0 0 0 0 0 0 0 0 0 None
0x13d 32 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x13e 32 tc 0 32 0 r . . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x13f 32 tc 0 32 0 r y . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x140 32 tc 0 32 0 r . . 8 8 8 8 . s 0 0 0 0 0 0 0 0 0 None
0x141 32 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x142 32 tc 0 32 0 r . . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
0x143 32 tc 0 32 0 r y . 8 8 8 8 . . 0 24 8 0 0 0 0 0 0 None
0x144 32 tc 0 32 0 r y . 8 8 8 8 . s 0 24 8 0 0 0 0 0 0 None
xdpyinfo
=========
:~/src/allegro5/build$ xdpyinfo
name of display: :0
version number: 11.0
vendor string: The X.Org Foundation
vendor release number: 12009000
X.Org version: 1.20.9
maximum request size: 16777212 bytes
motion buffer size: 256
bitmap unit, bit order, padding: 32, LSBFirst, 32
image byte order: LSBFirst
number of supported pixmap formats: 7
supported pixmap formats:
depth 1, bits_per_pixel 1, scanline_pad 32
depth 4, bits_per_pixel 8, scanline_pad 32
depth 8, bits_per_pixel 8, scanline_pad 32
depth 15, bits_per_pixel 16, scanline_pad 32
depth 16, bits_per_pixel 16, scanline_pad 32
depth 24, bits_per_pixel 32, scanline_pad 32
depth 32, bits_per_pixel 32, scanline_pad 32
keycode range: minimum 8, maximum 255
focus: window 0x3e0c5ca, revert to Parent
number of extensions: 28
BIG-REQUESTS
Composite
DAMAGE
DOUBLE-BUFFER
DPMS
DRI2
DRI3
GLX
Generic Event Extension
MIT-SCREEN-SAVER
MIT-SHM
Present
RANDR
RECORD
RENDER
SECURITY
SHAPE
SYNC
X-Resource
XC-MISC
XFIXES
XFree86-DGA
XFree86-VidModeExtension
XINERAMA
XInputExtension
XKEYBOARD
XTEST
XVideo
default screen number: 0
number of screens: 1
screen #0:
dimensions: 1920x1080 pixels (508x285 millimeters)
resolution: 96x96 dots per inch
depths (7): 24, 1, 4, 8, 15, 16, 32
root window id: 0x19d
depth of root window: 24 planes
number of colormaps: minimum 1, maximum 1
default colormap: 0x20
default number of colormap cells: 256
preallocated pixels: black 0, white 16777215
options: backing-store WHEN MAPPED, save-unders NO
largest cursor: 256x256
current input event mask: 0xda0033
KeyPressMask KeyReleaseMask EnterWindowMask
LeaveWindowMask StructureNotifyMask SubstructureNotifyMask
SubstructureRedirectMask PropertyChangeMask ColormapChangeMask
number of visuals: 90
default visual id: 0x21
visual:
visual id: 0x21
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x22
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x145
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x146
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x147
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x148
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x149
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x14a
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x14b
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x14c
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x14d
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x14e
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x14f
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x150
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x151
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x152
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x153
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x154
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x155
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x156
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x157
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x158
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x159
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x15a
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x15b
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x15c
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x15d
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x15e
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x15f
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x160
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x161
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x162
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x163
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x164
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x165
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x166
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x167
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x168
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x169
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x16a
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x16b
class: TrueColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x16c
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x16d
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x16e
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x16f
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x170
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x171
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x172
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x173
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x174
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x175
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x176
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x177
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x178
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x179
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x17a
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x17b
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x17c
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x17d
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x17e
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x17f
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x180
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x181
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x182
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x183
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x184
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x185
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x186
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x187
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x188
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x189
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x18a
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x18b
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x18c
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x18d
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x18e
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x18f
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x190
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x191
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x192
class: DirectColor
depth: 24 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0xd6
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x193
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x194
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x195
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x196
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x197
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x198
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x199
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x19a
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
visual:
visual id: 0x19b
class: TrueColor
depth: 32 planes
available colormap entries: 256 per subfield
red, green, blue masks: 0xff0000, 0xff00, 0xff
significant bits in color specification: 8 bits
As a work-around: I ended up creating another buffer just to copy bg to video-bitmap. That way I can use all video bitmaps in the final draw.
I think we ought to keep this open if there is a bug - your code ought to work AFAICS.
