ERROR - (113: Host is unreachable) while connecting to upstream - After deployed MacVlan - Docker - Synology
The current issue started after I deployed MacVlan to the docker container in question
PiHole - Docker - Synology
It started giving me the error:
2020/11/17 01:06:58 [error] 2302#2302: *200758 connect() failed (113: Host is unreachable) while connecting to upstream, client: 172.17.0.1, server: pi.ans.red, request: "GET /favicon.ico HTTP/1.1", upstream: "http://10.0.12.192:80/favicon.ico", host: "pi.hamra.services", referrer: "https://pi.hamra.services/admin"
2020/11/16 23:29:36 [error] 2220#2220: *194168 connect() failed (113: Host is unreachable) while connecting to upstream, client: 172.17.0.1, server: pi.ans.red, request: "GET /favicon.ico HTTP/1.1", upstream: "https://10.0.12.192:443/favicon.ico", host: "pi.hamra.services", referrer: "https://pi.hamra.services/admin" 2020/11/16 23:33:10 [error] 2230#2230: *194657 connect() failed (113: Host is unre upstream: "http://10.0.12.192:80/", host: "pi.hamra.services" achable) while connecting to upstream, client: 172.17.0.1, server: pi.ans.red, request: "GET / HTTP/1.1",
It's a simple proxy setup:
and
It works internally fine: http://10.0.12.192/admin/
Since the last help you provided in # https://github.com/jlesage/docker-nginx-proxy-manager/issues/79 - @jlesage everything was working fine, until I deployed MacVlan and it got it's own IP address for PiHole
Let me know please if you can help.
It seems that the NginxProxyManager container is not able to reach 10.0.12.192.
Which network type NginxProxyManager is using ? I know that several months ago, there was a limitation where the host couldn't reach a macvlan network.... Can you ping 10.0.12.192 from the host where Docker is running ? Can you ping it from the NginxProxyManager container (docker exec <container name> ping 10.0.12.192)?
@jlesage I think you are right, it seems to be some kind of a limitation to talk to MacVlan network.
I can't ping the MacVlan hosts
However, I can ping other hosts on the same subnet
root@Synology:~#
root@Synology:~# docker exec da1cd6adad0c ping 10.0.12.192
PING 10.0.12.192 (10.0.12.192): 56 data bytes
root@Synology:~#
root@Synology:~# docker exec da1cd6adad0c ping 10.0.12.1
PING 10.0.12.1 (10.0.12.1): 56 data bytes
64 bytes from 10.0.12.1: seq=0 ttl=63 time=0.941 ms
64 bytes from 10.0.12.1: seq=1 ttl=63 time=0.691 ms
64 bytes from 10.0.12.1: seq=2 ttl=63 time=0.690 ms
64 bytes from 10.0.12.1: seq=3 ttl=63 time=0.713 ms
64 bytes from 10.0.12.1: seq=4 ttl=63 time=0.707 ms
root@Synology:~# docker exec da1cd6adad0c ping 10.0.12.18
PING 10.0.12.18 (10.0.12.18): 56 data bytes
64 bytes from 10.0.12.18: seq=0 ttl=127 time=0.625 ms
64 bytes from 10.0.12.18: seq=1 ttl=127 time=0.460 ms
64 bytes from 10.0.12.18: seq=2 ttl=127 time=0.638 ms
64 bytes from 10.0.12.18: seq=3 ttl=127 time=0.502 ms
Is there any existing workaround for that?
I saw some online article talking about passing_proxy or something like that to get it working, any advise?
Thanks
@ansred Not sure if this is the same as what I previously faced, but when I set up a macvlan network on my Synology for Docker, I had to put the following in a .sh file and execute it via a Task Schedule at boot-up:
#!/bin/sh
PATH=/usr/local/bin:/usr/bin:/bin
while ! ip link show bond0 | grep -q 'state UP'; do
sleep 1
done
ip link add macvlan_link link bond0 type macvlan mode bridge
ip addr add 192.168.1.240/32 dev macvlan_link
ip link set macvlan_link up
ip route add 192.168.1.240/28 dev macvlan_link
iptables -P FORWARD ACCEPT
It links the macvlan to the main network as well as defines the routes. Without the last two lines, I got the same errors as you when reverse proxying to containers using the macvlan network.
/Edit: Below is how I had created the macvlan network:
docker network create -d macvlan -o parent=bond0 \
--subnet 192.168.1.0/24 \
--gateway 192.168.1.1 \
--ip-range 192.168.1.240/28 \
--aux-address 'host=192.168.1.240' \
macvlan
@hirenshah thanks for your update.
I think I have the same issue you had.
Here is my networks where created in Portainer
Followed this YouTube video: https://youtu.be/o7nn6Tv-PAw
root@Synology:~# docker network ls
NETWORK ID NAME DRIVER SCOPE
1e2ebdbc7947 AD_MacVlan_Net macvlan local
9ac20bc0cab8 AG_MacVlan_Config null local
And when I do inspect for the two networks related to that docker container
(1)
root@Synology:~# docker network inspect 1e2ebdbc7947
[
{
"Name": "AD_MacVlan_Net",
"Id": "1e2ebdbc79477f523bba7119538354e8cf23dda3a00d6ae90ed7b8e9c25e9070",
"Created": "2020-11-20T16:15:34.391136218-05:00",
"Scope": "local",
"Driver": "macvlan",
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": {},
"Config": [
{
"Subnet": "10.0.12.0/24",
"IPRange": "10.0.12.122/32",
"Gateway": "10.0.12.1"
}
]
},
"Internal": false,
"Attachable": false,
"Ingress": false,
"ConfigFrom": {
"Network": ""
},
"ConfigOnly": false,
"Containers": {
"5792a8c55bd05b9ae4cb1e6809245ef4b72e5822243834cf2696acd0f485615b": {
"Name": "adguardhome",
"EndpointID": "103820b86273e3fd845101ab8b33a6c584b74e401a892ae2828686d92a6a5ce1",
"MacAddress": "02:42:0a:00:0c:7a",
"IPv4Address": "10.0.12.122/24",
"IPv6Address": ""
}
},
"Options": {
"parent": "ovs_eth0"
},
"Labels": {}
}
]
root@Synology:~#
(2)
root@Synology:~# docker network inspect 9ac20bc0cab8
[
{
"Name": "AG_MacVlan_Config",
"Id": "9ac20bc0cab8a28a2fae344667b1431826d7cc80a93dbcda32e305c955d7d817",
"Created": "2020-11-20T16:08:35.313662365-05:00",
"Scope": "local",
"Driver": "null",
"EnableIPv6": false,
"IPAM": {
"Driver": "default",
"Options": null,
"Config": [
{
"Subnet": "10.0.12.0/24",
"IPRange": "10.0.12.122/32",
"Gateway": "10.0.12.1"
}
]
},
"Internal": false,
"Attachable": false,
"Ingress": false,
"ConfigFrom": {
"Network": ""
},
"ConfigOnly": true,
"Containers": {},
"Options": {
"parent": "ovs_eth0"
},
"Labels": {}
}
]
root@Synology:~#

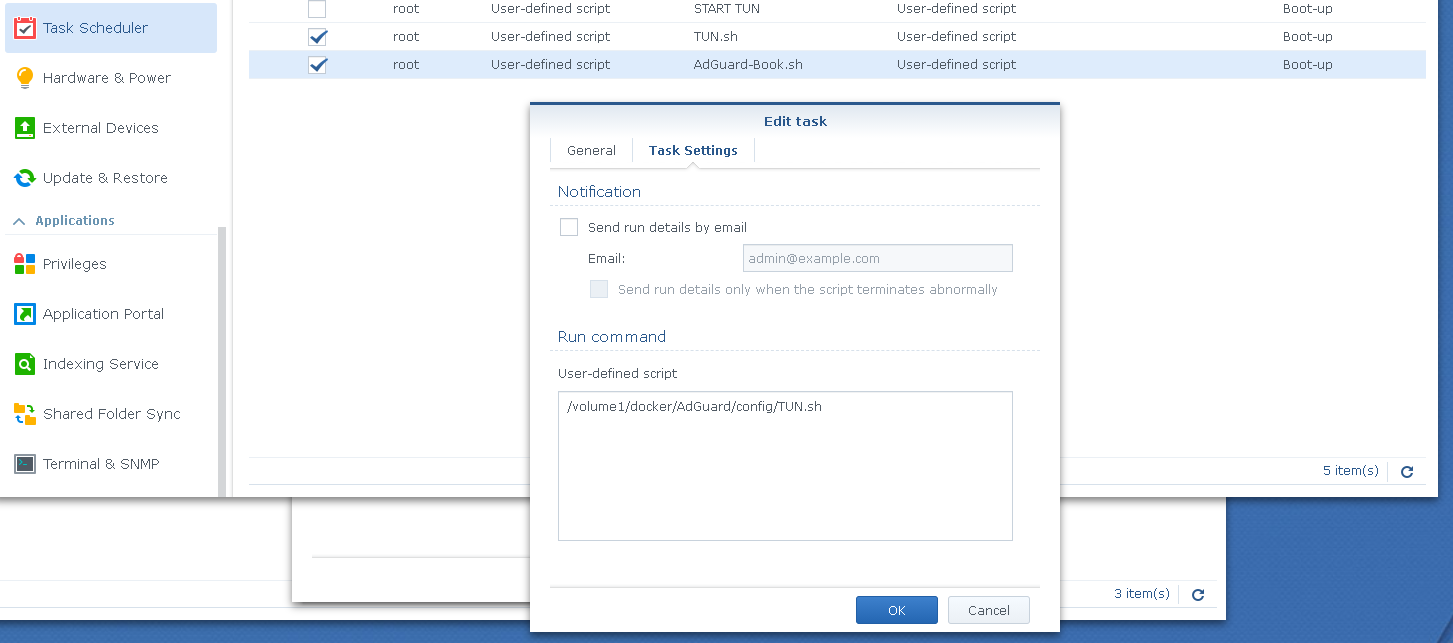

And here is my list of scheduled tasks in Synology DSM, mostly to run a VPN docker container.
Can you advise what should I change? or if you can share the output of network inspect to your macvlan network + screenshot of the scheduled task?

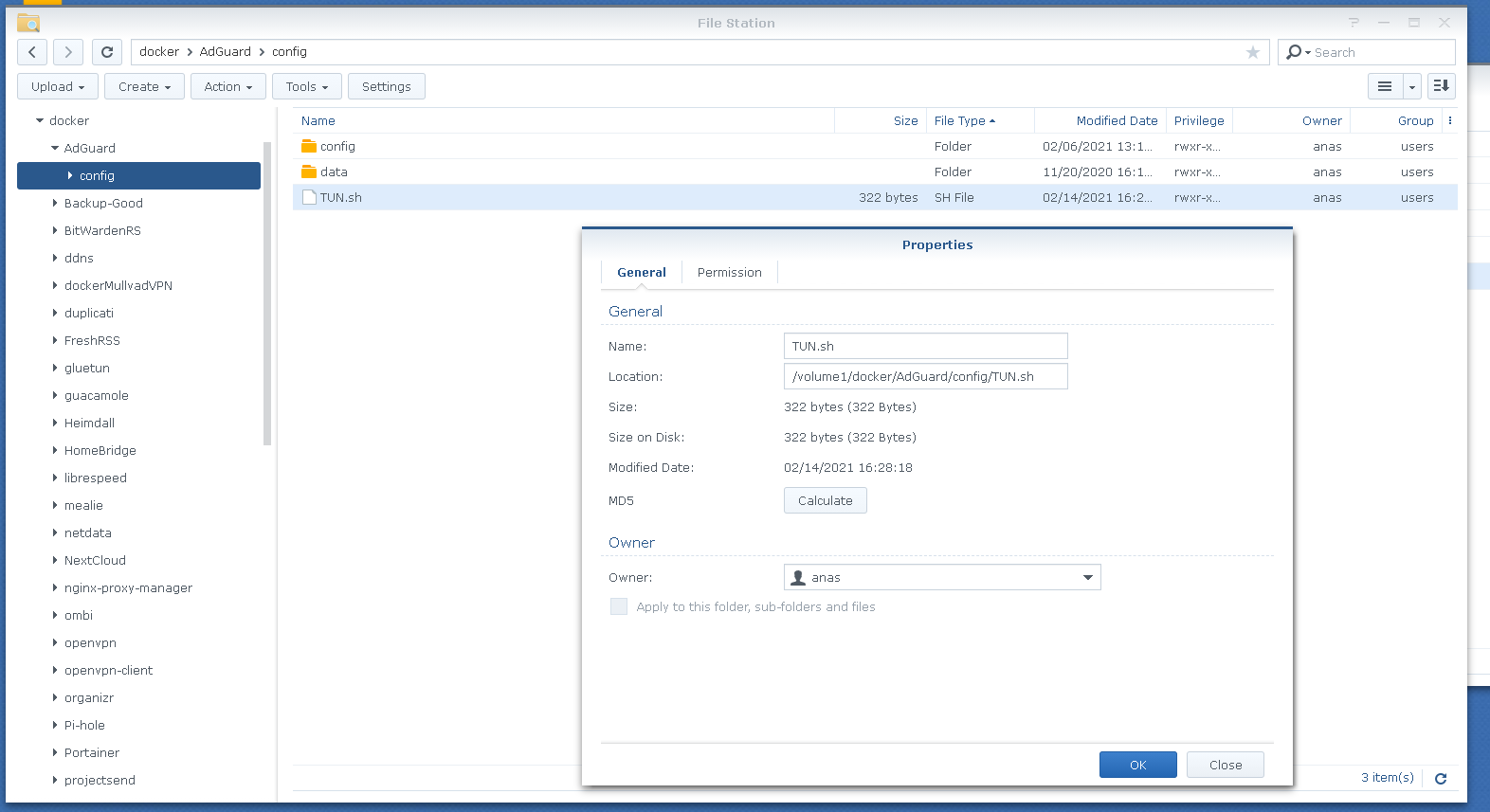

Per your example. I have created the following file
and then created the scheduled task to trigger on Boot from a file script
it has the following
#!/bin/sh
PATH=/usr/local/bin:/usr/bin:/bin
while ! ip link show bond0 | grep -q 'state UP'; do
sleep 1
done
ip link add macvlan_link link bond0 type macvlan mode bridge
ip addr add 10.0.12.122/32 dev macvlan_link
ip link set macvlan_link up
ip route add 10.0.12.122/32 dev macvlan_link
iptables -P FORWARD ACCEPT
Does it look good?
Thanks
