terraform-provider-bigip Changes to a custom PARENT profile values and not pushed on to CHILD profile

Changes to a custom PARENT profile values and not pushed on to CHILD profile

Open soumik612 opened this issue 5 years ago • 5 comments

We have a use case where in we build custom PARENT profiles for different applications/setup. These parent profiles are then inherited by CHILD profiles, which are applied to VIPs.

OBSERVED ISSUE: Whenever a custom resource attribute is changed from default value using TF provider, this causes all the check-boxes in the LTM GUI to be set. Ideally only the custom value that is changed should have the check-box ticked.

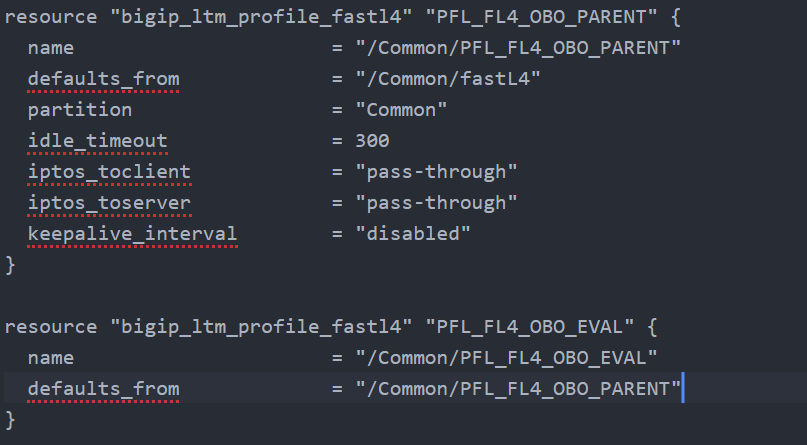

For e.g. I built a custom profile "PFL_FL4_OBO_EVAL" which inherits config from another custom PARENT PROFILE "PFL_FL4_OBO_PARENT"

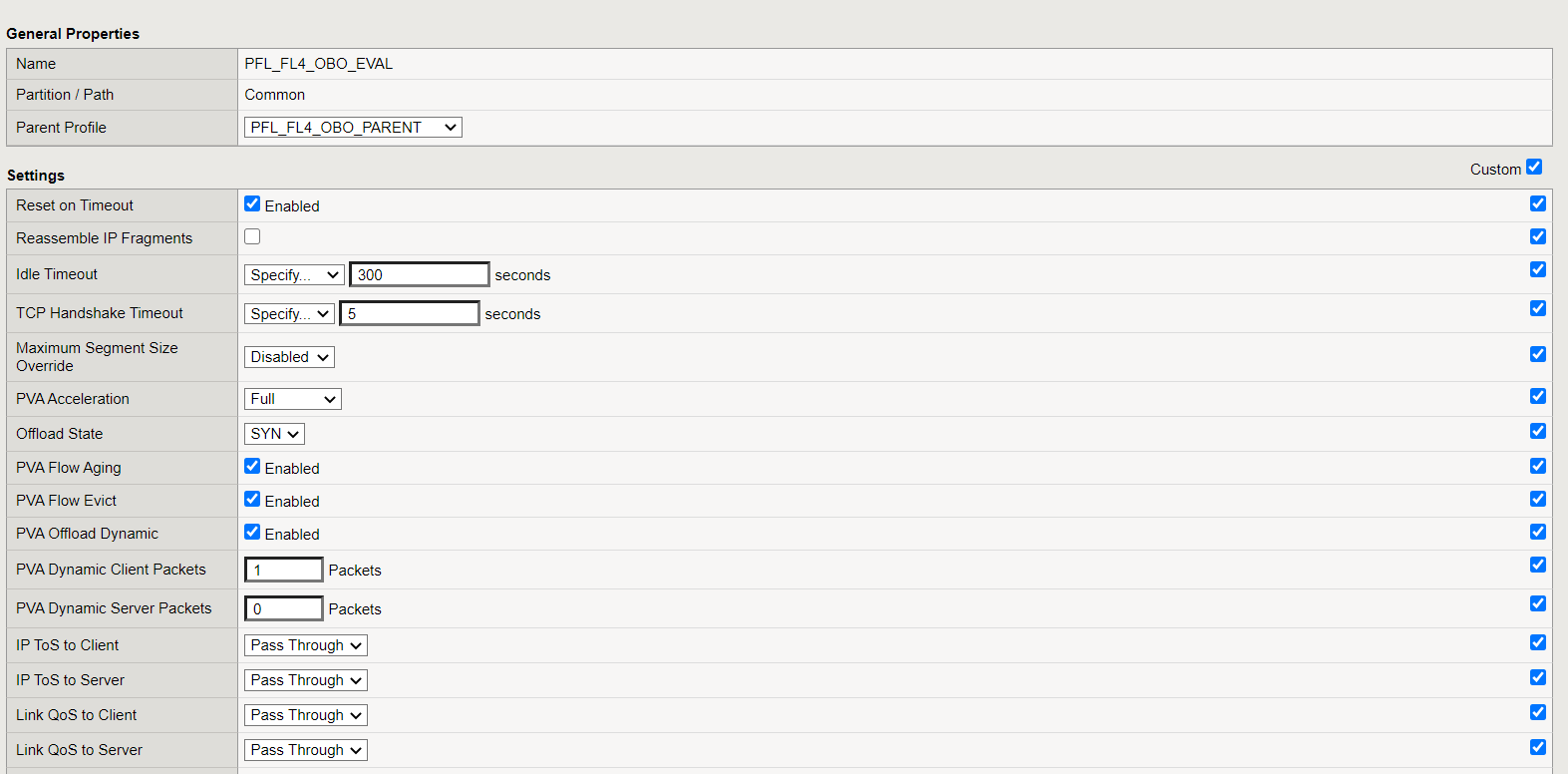

This is how the config looks like in LTM GUI,

If you notice, the "CUSTOM" check-box is selected for all the parameters. F5 recommends that only values that need to be changed/modified from the custom values should be set with a check mark. Having all boxes check affects performance as well.

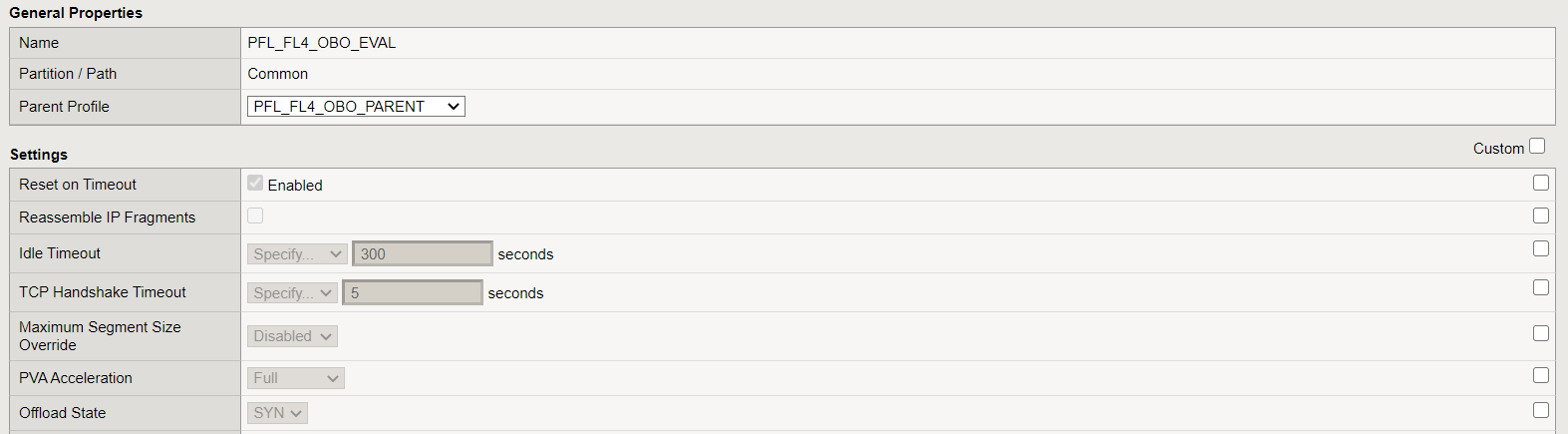

For my use case, since "PFL_FL4_OBO_EVAL" is inheriting attributes from custom PARENT PROFILE "PFL_FL4_OBO_PARENT", the config should look like this,

Another issue observed, is that the change in parent profile does not reflect in the CHILD, if all the custom attributes are "CHECKED"

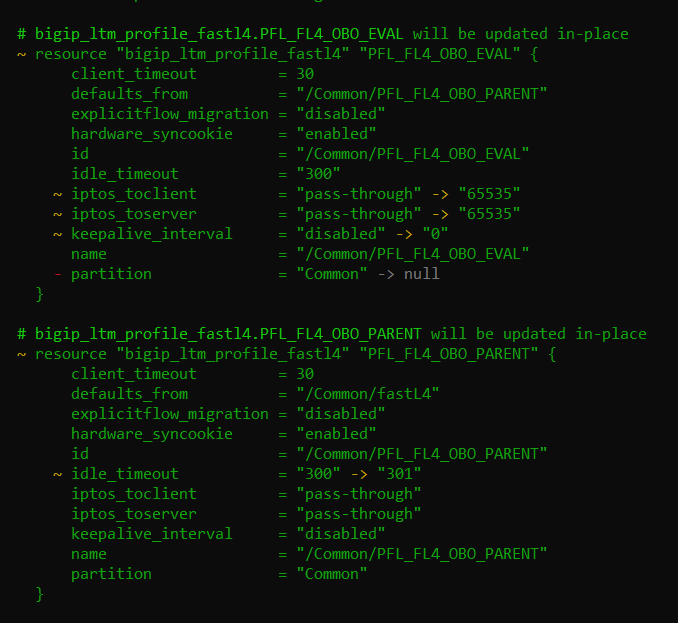

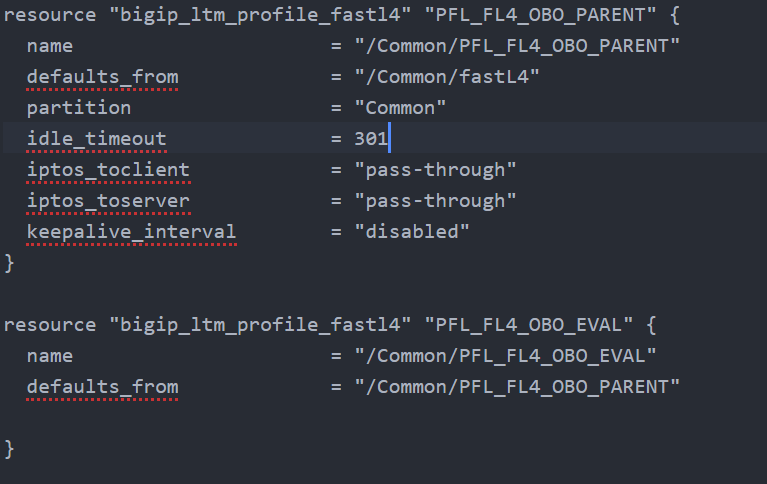

For , e.g. I change the idle_timeout value to chage from "300" to 301. Resource config and TF plan output below

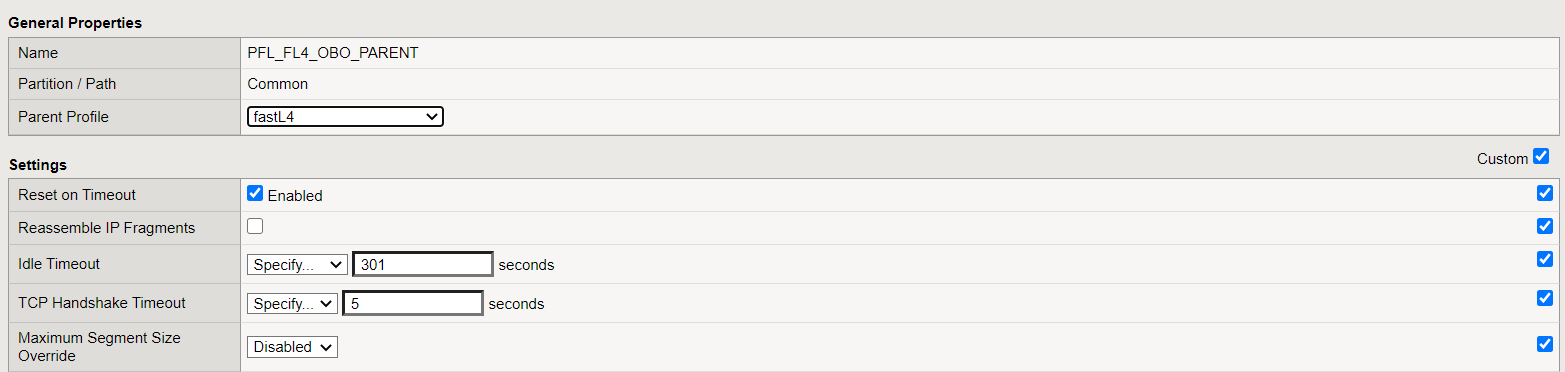

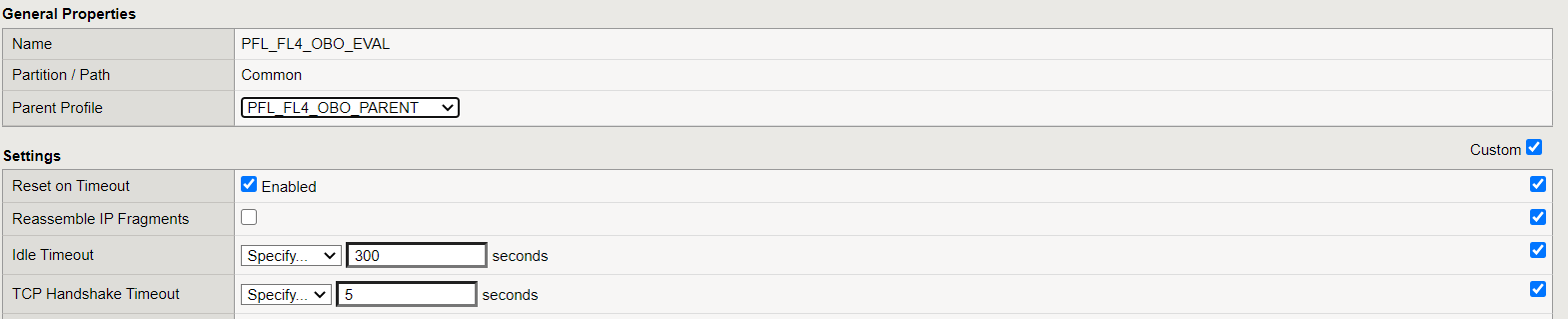

Changes are applied on the LTM, however, "idle_timeout" value is not inherited by the child profile.

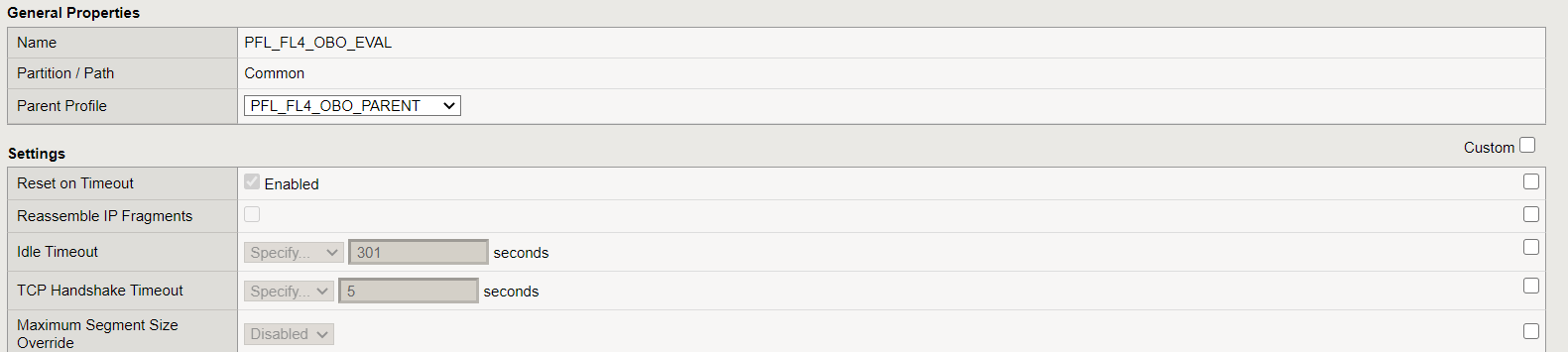

` If remove the custom checkbox manually in GUI, I see that the attribute has been inherited.

Jun 08 '20 14:06 soumik612

It's observed in other profiles too( fasthttp,http2), but in some profiles ( like tcp, ssl ) custom attributes are checked only in parent , not in child with the proper inheritance.

Jun 24 '20 13:06 papineni87

It is important to keep in mind that Terraform itself is declarative, so the concept of having a parent objective drive inheritance can cause some anti-patterns.

Tracking via multiple backlog items TER.
