F.Cu/F.Mask layer option not working

Open mMuck opened this issue 3 years ago • 1 comments
trafficstars

KiBuzzard 1.2.0 works great with different inputs and fonts. Thanks. An example output on the F.Silkscreen layer: grafik

I tried to use the F.Cu/F.Mask option but after clicking OK nothing happens. No entry in the log and the window seems to stop working (no preview updates).

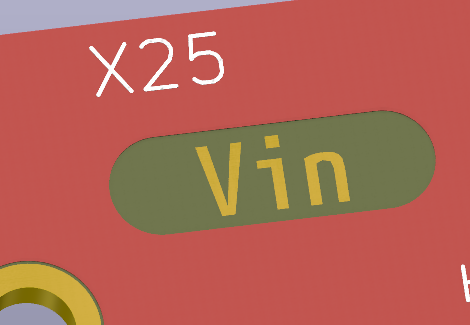

I expected something like this: grafik grafik

Can someone confirm that this is(n't) working? Thanks.

KiCad 6.0.7 @Win10

mMuck avatar Sep 12 '22 12:09 mMuck

It currently doesn't work the way you're describing. Although that output does look better. for the inverted options, IMO.

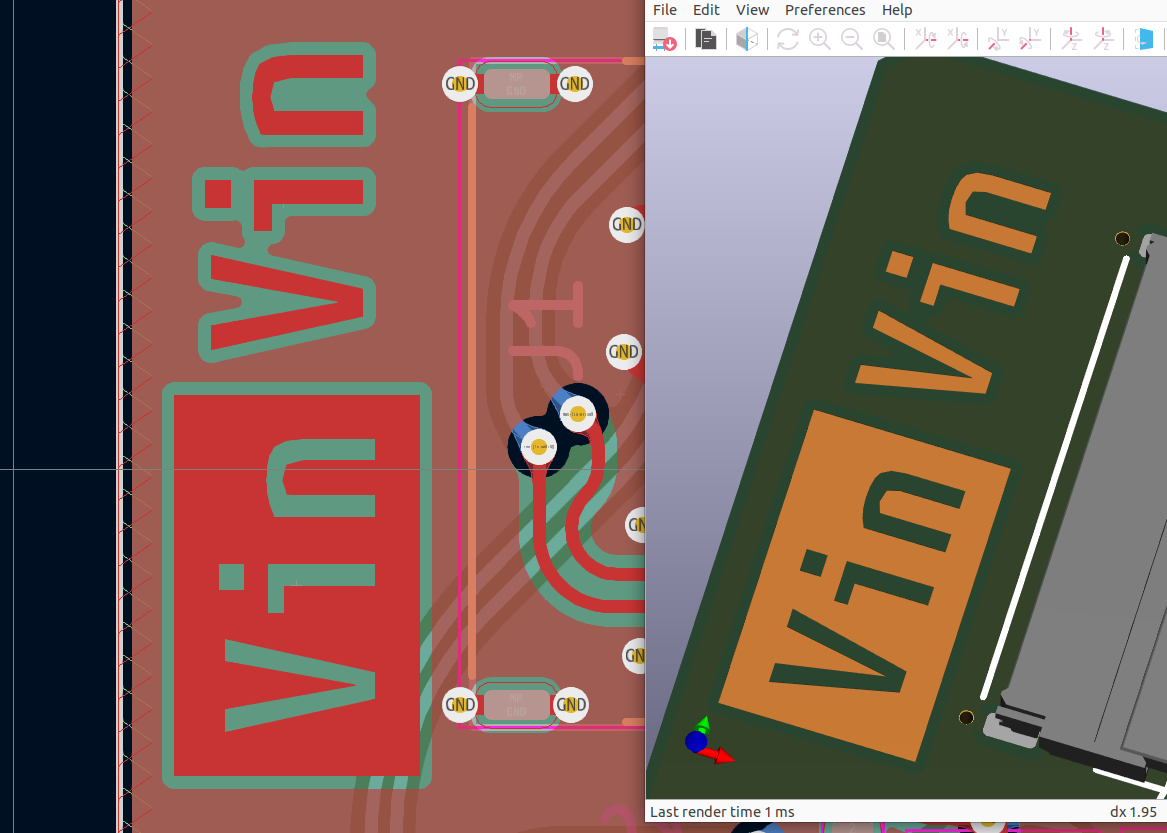

F.Cu/F.Mask option currently should create a label with the same contents on both The copper and mask layers. Screenshot from 2022-11-20 23-05-55

gregdavill avatar Nov 20 '22 12:11 gregdavill
