attach'ed hbargraph is removed if first bus gets terminated

[Jikstra]

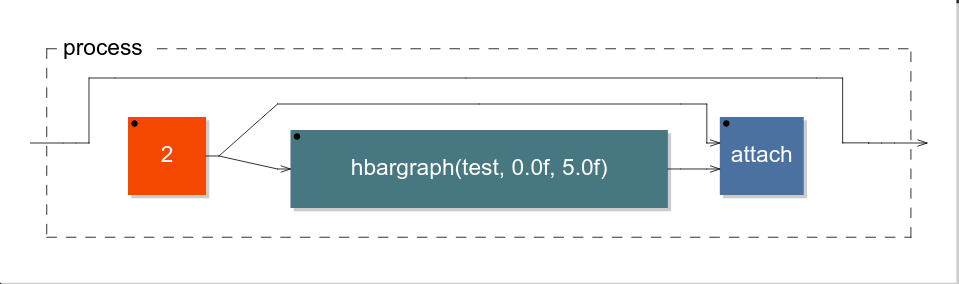

Example code: process = _, (2.0 <: _, hbargraph("test", 0, 5) : attach) : _,!; Diagram:

Expected: I would expect that an attached signal is getting exposed to the ui, even if it gets later on terminated Actual: attached signal is getting removed, even if it's part of the diagram

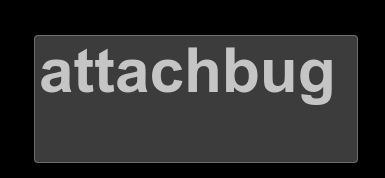

But not exposed in ui:

[sletz]

The SVG diagram is a bit misleading here: in this cas the compiler actually remove the attached part and generates this C++ code:

virtual void compute(int count, FAUSTFLOAT** RESTRICT inputs, FAUSTFLOAT** RESTRICT outputs) {
        FAUSTFLOAT* input0 = inputs[0];
	FAUSTFLOAT* output0 = outputs[0];
	for (int i0 = 0; i0 < count; i0 = i0 + 1) {
		output0[i0] = FAUSTFLOAT(float(input0[i0]));
	}
}

[josmithiii]

Yes, attach must attach to a signal that survives. It would be nice to have a primitive that works like you expected, e.g., hbargraph("test", 0, 5) : persist.

[Jikstra]

Yes, attach must attach to a signal that survives. It would be nice to have a primitive that works like you expected, e.g., hbargraph("test", 0, 5) : persist.

Yes I think something like this would be really helpful. Would this be hard to implement? I tried looking for where the logic for attach is defined, buuuut after the 5th page of search results i gave up :D

[sletz]

Read the attach primitive documentation again: https://faustdoc.grame.fr/manual/syntax/#attach-primitive. Since your program finally compute an output, you should be able to use if in the attach expression right?

[Jikstra]

Read the attach primitive documentation again: https://faustdoc.grame.fr/manual/syntax/#attach-primitive. Since your program finally compute an output, you should be able to use if in the attach expression right?

I'm currently writing a mixer with peak/dbmeter. It has 4 stereo buses for the channel, but they get terminated once they got mixxed down for the main output. So those signals don't survive, and also the attach primitive doesn't. Probably I stumbled on this problem because I did the db metering after the mixdown, maybe it would survive if i would do it before the mixdown. But anyways, I worked around this by keeping all the buses, as I write the interaction with the jack audio api myself, i can hide them there. I think now that it's clear that this is the intended behaviour of attach, It's more about an persist primitive would be helpful for faust and if it's possible to implement.

[sletz]

But you need to get the result of peak/dbmeter in a bargraph right? Why cant you attach them to the signal which is then mixe to main output ? Any "simplest" piece of code that should the problem?

[Jikstra]

But you need to get the result of peak/dbmeter in a bargraph right? Why cant you attach them to the signal which is then mixe to main output ? Any "simplest" piece of code that should the problem?

As I said, I guess I could make it work somehow, doing the metering before the mixdown. But my code would look something like this:

_,_ <: _,_,_,_  : _,_ (_,_:>_) : _, (_, (_metering : hbargraph(...)) : attach) : _,_

With a possible persist primtive

_,_ <: _,_,_,_  : _,_ (_,_:>_:metering:hbargraph(...):persist:!) : _,_

With persist i think it's more clear what happens. With attach it's why 2 inputs? What is the sense of feeding the right channel into it?

[nuchi]

Coincidentally, I just wrote a library to solve this problem: https://github.com/nuchi/faust-tap-library/

Actually I wanted something slightly different than a persist primitive — I wanted to route deeply nested signals to output without manually dealing with crossings, but when I saw this issue it was only a few extra lines to add persist functionality.

The name ("tap.lib") comes from tapping a delay line.

Please make sure to look at the "Limitations" section in the readme, there are some situations that it can't handle.

Example code:

tap = library("tap.lib");

A(k) = *(k);

complicatedExpression = _,_,_,_ : (
        (A(1) <: _,(hbargraph("first", 0, 1) : tap.T1)),
         A(2),
         A(3),
        (A(4) <: _,(hbargraph("second", 0, 1) : tap.T2)),
         A(5)
    ) ~ (_,_,_,_,_ :> _ <: _,tap.T3)
      : si.block(5)
      ;
process = tap.persist(
    tap.extract(complicatedExpression, tap.T3),
    (tap.T1, tap.T2)
);

Resulting block diagram:

EDIT: Your example:

process = _, (2.0 <: _, hbargraph("test", 0, 5) : attach) : _,!;

would be written like the following, assuming I understand correctly (I think you want a signal going straight through, and then a constant signal 2 feeding directly into an hbargraph which doesn't interact with the first signal):

tap = library("tap.lib");
process =  tap.persist(
    (_, (2.0 : hbargraph("test", 0, 5) : tap.T1) : _)
    // or just (_, (2.0 : hbargraph("test", 0, 5) : tap.T1))
    , tap.T1
);

[josmithiii]

Nice! I've often needed such taps
