Only Works in Editor Scene View, but not in Game View

[C0nstan]

Hi There, I'm on Unity 5.3.4f1 and using the new UI System. I have followed your Setup, but it doesnt work if i press Play. It just works in die Editor Scene View. Any suggestions?

[yapetrichka]

Hello i test it in Unity 5.3.4 on weekend and link tutorial video for setting mask.

[MasterMeyer]

Actually, at first, i had that problem too, but when i set 'Clear Flags' of the camera to "Don't Clear" it worked

[vicenterusso]

It works only with Screen Space - Overlay. with the other 2 render mode this same problem happens

[Calvin2274]

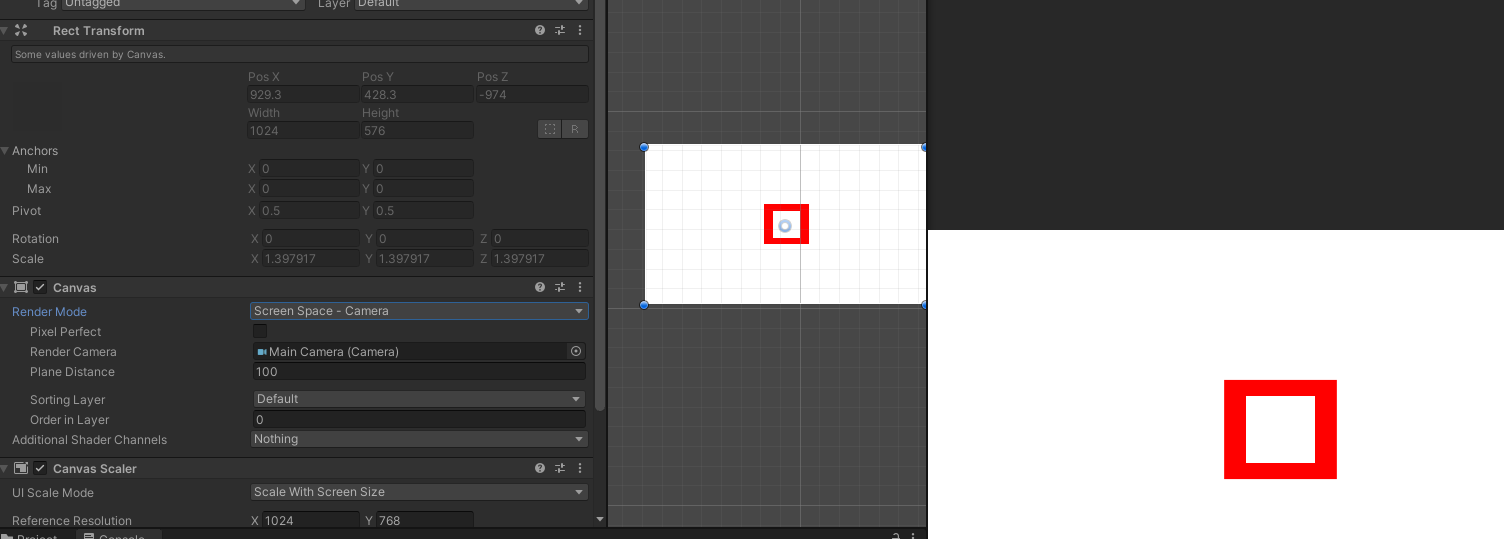

Screen Space - Camera http://puu.sh/oTLGo/754cdb3cfd.png

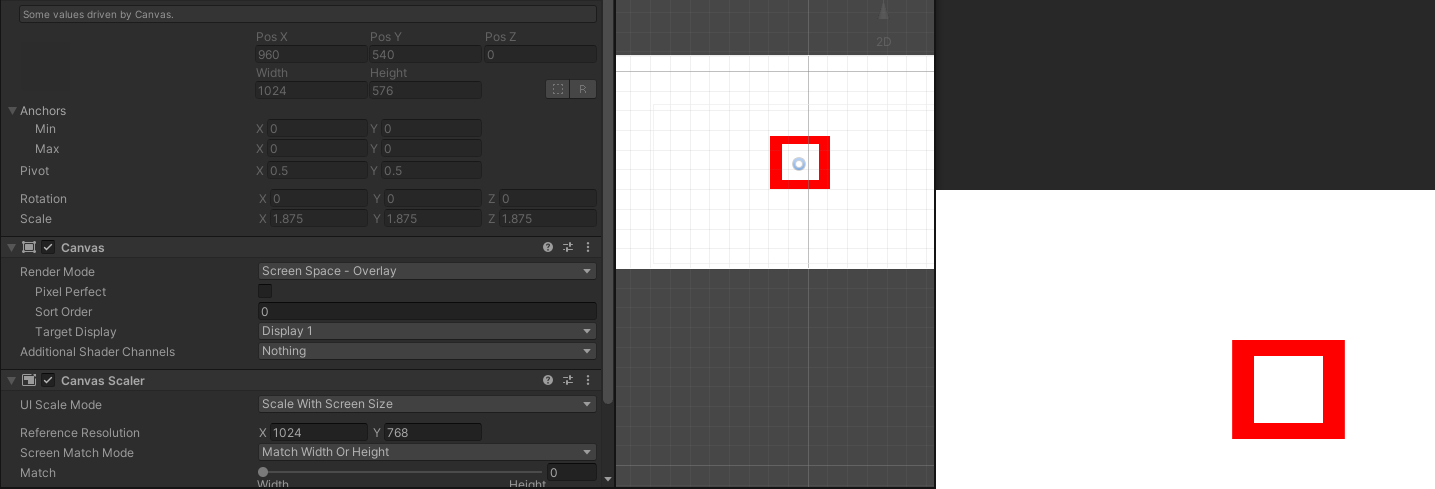

Screen Space - Overlay http://puu.sh/oTLJ9/6a506828f4.png

But i do need to use camera as render mode because i have some 3D object need to be render in front of canvas UI, any suggestion ??

[CasperPas]

I have the same problem. Then I made it works again when I put 2 objects (Mask & Masked) in the same level, not parent-child as said the guide. The reason might be in the rendering order.

[JonathanGorr]

It works for me with screen space - camera, upon assigning the camera. This might be consolation to those using 5.4. This render mode cannot, however, overlap other UI elements using screen space - overlay, unfortunately, and I believe it's much less efficient. Fixing this would be greatly appreciated mister slavaobninsk. It's an awesome asset when working.

[yapetrichka]

Now it's works on all renders mode

fixed on new component implementation Released on next weekend

[yapetrichka]

https://github.com/dreamcodestudio/UIMask/releases/tag/v0.9.0
