MAUI Blazor for Windows: PushModalAsync-Issue

Open reinhardlackner opened this issue 3 years ago • 3 comments

Description

In a MAUI blazor app, it is not always possible to open a content page as modal dialog in Windows.

  1. Start MAUI Blazor App: image

  2. Click on Button "Open modal page" (which calls a ContentPage) - Code: image

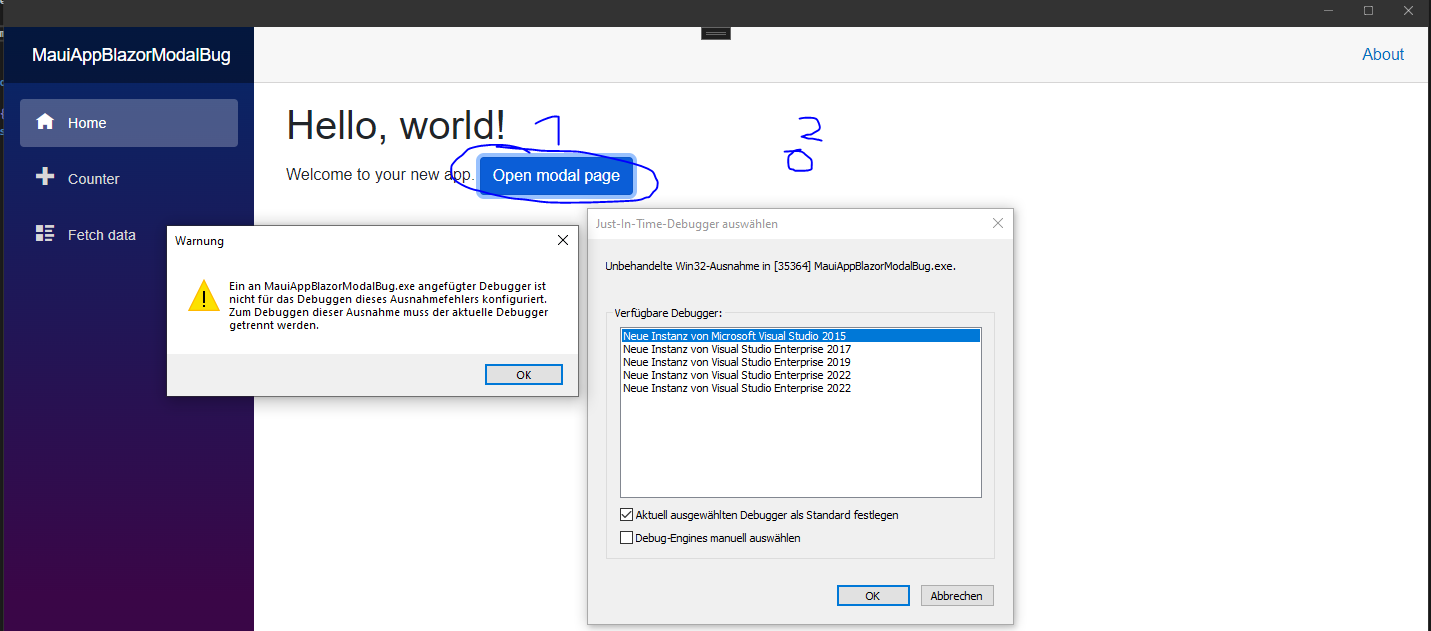

  3. Unhandled Win32 Exception appears: image

Steps to Reproduce

  1. Create .NET MAUI Blazor-App

  2. Add new .NET MAUI ContentPage (XAML) image

  3. Add new button which opens the newly created modal dialog page: image

4a) Case ERROR SHOWN: After clicking on the button, the modal ContentPage sometimes does not appear... Win32 Exception is shown instead: image

4b) Case NO ERROR SHOWN: After clicking on the button, the modal ContentPage appears correctly: image Click on "Close me" - Executed code: await Navigation.PopModalAsync();

Click on the button again (1) and click anywhere in the white background (2), before the modal page appears - Win32-Exception appears: image

MauiAppBlazorModalBug_20220809.zip

dotnet version: 6.0.400-preview.22330.6 Visual Studio Version: Enterprise - 17.3.0 Preview 6

Version with bug

6.0.400

Last version that worked well

Unknown/Other

Affected platforms

Windows

Affected platform versions

Windows 10 (my OS: Version 10.0.19044 Build 19044)

Did you find any workaround?

no

Relevant log output

No response

reinhardlackner avatar Aug 09 '22 15:08 reinhardlackner

Hi @reinhardlackner , can you show the full stack trace of the exception when this happens? That would help us route this issue to the appropriate team.

Eilon avatar Aug 09 '22 20:08 Eilon

Hi @reinhardlackner , can you show the full stack trace of the exception when this happens? That would help us route this issue to the appropriate team.

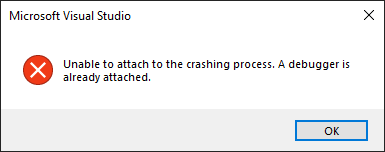

@Eilon Unfortunately I was not able to add a debugger after the crash. image

Visual Studio 2022 (Version 17.3.0) shows following error after case 4b: The program '[30464] MauiAppBlazorModalBug.exe: Program Trace' has exited with code 0 (0x0). The program '[30464] MauiAppBlazorModalBug.exe' has exited with code 3221225477 (0xc0000005) 'Access violation' image

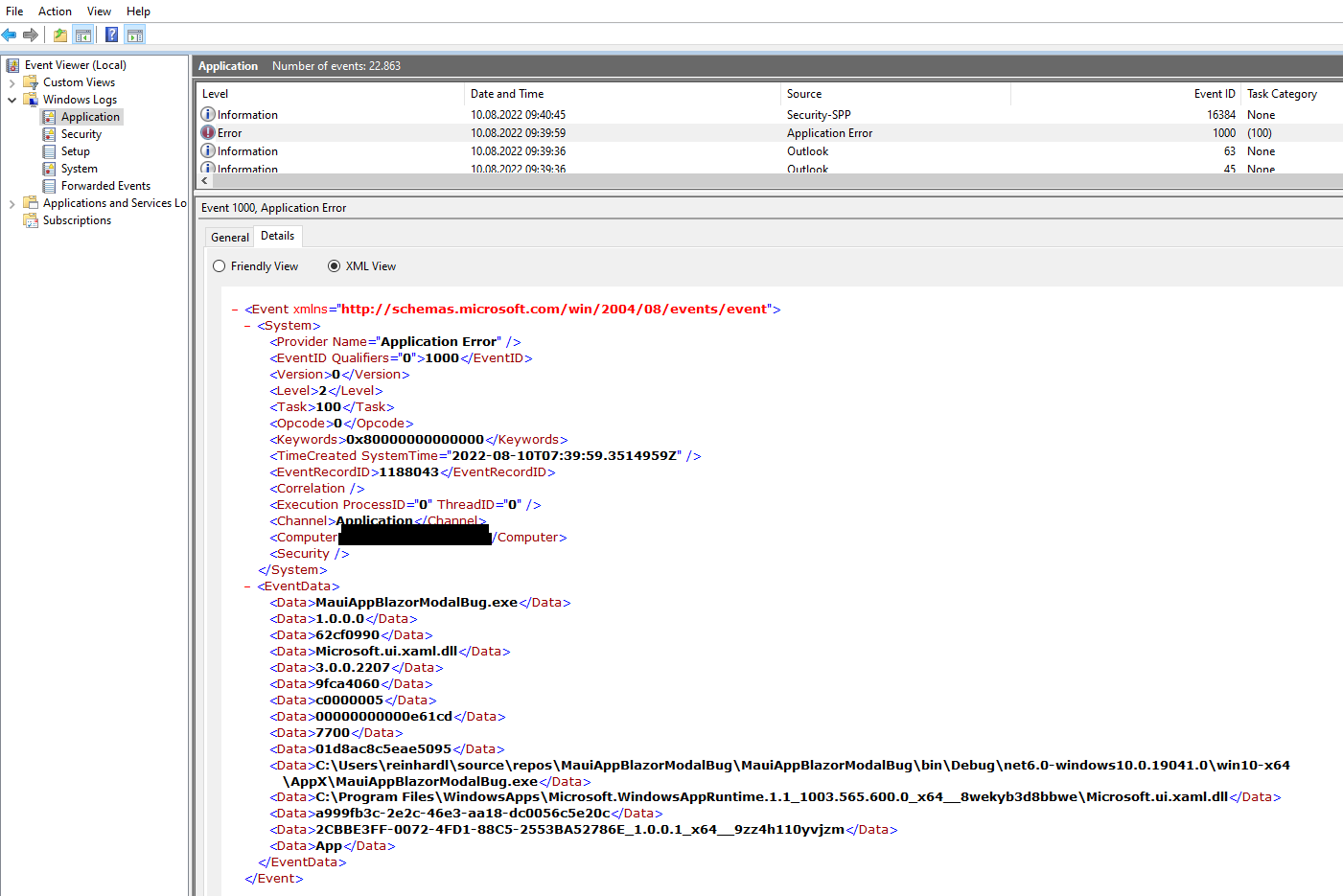

In Windows Logs (Section Application) following error is shown: Faulting application name: MauiAppBlazorModalBug.exe, version: 1.0.0.0, time stamp: 0x62cf0990 Faulting module name: Microsoft.ui.xaml.dll, version: 3.0.0.2207, time stamp: 0x9fca4060 Exception code: 0xc0000005 Fault offset: 0x00000000000e61cd Faulting process id: 0x7700 Faulting application start time: 0x01d8ac8c5eae5095 Faulting application path: C:\Users\reinhardl\source\repos\MauiAppBlazorModalBug\MauiAppBlazorModalBug\bin\Debug\net6.0-windows10.0.19041.0\win10-x64\AppX\MauiAppBlazorModalBug.exe Faulting module path: C:\Program Files\WindowsApps\Microsoft.WindowsAppRuntime.1.1_1003.565.600.0_x64__8wekyb3d8bbwe\Microsoft.ui.xaml.dll Report Id: a999fb3c-2e2c-46e3-aa18-dc0056c5e20c Faulting package full name: 2CBBE3FF-0072-4FD1-88C5-2553BA52786E_1.0.0.1_x64__9zz4h110yvjzm Faulting package-relative application ID: App


reinhardlackner avatar Aug 10 '22 07:08 reinhardlackner

Alright thank you for the info, we will try to reproduce this and investigate.

Eilon avatar Aug 10 '22 18:08 Eilon

Hi @reinhardlackner , I was able to reproduce an exception in this app when I specifically attach native debugging and catch all exceptions. I then get this error, but I'm not sure if it's the same error as you're seeing:

Exception thrown at 0x00007FFC60C7474C (KernelBase.dll) in TestMBPushModalAsync.exe: 0x40080202: WinRT transform error (parameters: 0x000000008000000B, 0x0000000080070490, 0x0000000000000014, 0x000000F0F5979D50).

>	KernelBase.dll!RaiseException()	Unknown
 	combase.dll!RoTransformErrorImpl(HRESULT oldError=0x8000000b, HRESULT newError=0x80070490, unsigned int cchMax=0, const wchar_t * message=0x000000f0f59791a0) Line 656	C++
 	twinapi.appcore.dll!Windows::ApplicationModel::Core::CoreApplication::GetCurrentView(struct Windows::ApplicationModel::Core::ICoreApplicationView * *)	Unknown
 	twinapi.appcore.dll!Windows::ApplicationModel::Core::CoreApplicationFactory::GetCurrentView()	Unknown
 	Microsoft.UI.Xaml.Controls.dll!SharedHelpers::TryGetCurrentCoreApplicationView()	Unknown
 	Microsoft.UI.Xaml.Controls.dll!NavigationView::OnApplyTemplate()	Unknown
 	Microsoft.UI.Xaml.Controls.dll!winrt::impl::produce<NavigationView,winrt::Microsoft::UI::Xaml::IFrameworkElementOverrides>::OnApplyTemplate()	Unknown
 	[Managed to Native Transition]
 	Microsoft.WinUI.dll!ABI.Microsoft.UI.Xaml.IFrameworkElementOverridesMethods.OnApplyTemplate(WinRT.IObjectReference _obj = {WinRT.ObjectReference<WinRT.Interop.IUnknownVftbl>})	Unknown
 	Microsoft.WinUI.dll!Microsoft.UI.Xaml.FrameworkElement.OnApplyTemplate()	Unknown
 	Microsoft.Maui.dll!Microsoft.Maui.Platform.MauiNavigationView.OnApplyTemplate()	Unknown
 	Microsoft.WinUI.dll!Microsoft.UI.Xaml.FrameworkElement.Microsoft.UI.Xaml.IFrameworkElementOverrides.OnApplyTemplate()	Unknown
 	Microsoft.WinUI.dll!ABI.Microsoft.UI.Xaml.IFrameworkElementOverrides.Do_Abi_OnApplyTemplate_2(System.IntPtr thisPtr)	Unknown
 	[Native to Managed Transition]
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkElementGenerated::OnApplyTemplateProtected()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkElement::OnApplyTemplateFromCore()	Unknown
 	Microsoft.ui.xaml.dll!CFrameworkElement::InvokeApplyTemplate()	Unknown
 	Microsoft.ui.xaml.dll!CFrameworkElement::MeasureCore()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::MeasureInternal()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CContentPresenter::MeasureOverride()	Unknown
 	Microsoft.ui.xaml.dll!CFrameworkElement::MeasureCore()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::MeasureInternal()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CGrid::MeasureOverride()	Unknown
 	Microsoft.ui.xaml.dll!CFrameworkElement::MeasureCore()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::MeasureInternal()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::UIElementGenerated::Measure()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::Page::MeasureOverride()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkElement::MeasureOverrideFromCore()	Unknown
 	Microsoft.ui.xaml.dll!CFrameworkElement::MeasureCore()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::MeasureInternal()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CControl::MeasureOverride()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkElementGenerated::MeasureOverride()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::ContentControl::MeasureOverride()	Unknown
 	Microsoft.ui.xaml.dll!00007ffb45f49420()	Unknown
 	[Managed to Native Transition]
 	Microsoft.WinUI.dll!ABI.Microsoft.UI.Xaml.IFrameworkElementOverridesMethods.MeasureOverride(WinRT.IObjectReference _obj = {WinRT.ObjectReference<WinRT.Interop.IUnknownVftbl>}, Windows.Foundation.Size availableSize = {Windows.Foundation.Size})	Unknown
 	Microsoft.WinUI.dll!Microsoft.UI.Xaml.FrameworkElement.MeasureOverride(Windows.Foundation.Size availableSize = {Windows.Foundation.Size})	Unknown
 	Microsoft.WinUI.dll!Microsoft.UI.Xaml.FrameworkElement.Microsoft.UI.Xaml.IFrameworkElementOverrides.MeasureOverride(Windows.Foundation.Size availableSize = {Windows.Foundation.Size})	Unknown
 	Microsoft.WinUI.dll!ABI.Microsoft.UI.Xaml.IFrameworkElementOverrides.Do_Abi_MeasureOverride_0(System.IntPtr thisPtr, Windows.Foundation.Size availableSize, Windows.Foundation.Size* result)	Unknown
 	[Native to Managed Transition]
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkElement::MeasureOverrideFromCore()	Unknown
 	Microsoft.ui.xaml.dll!CFrameworkElement::MeasureCore()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::MeasureInternal()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::UIElementGenerated::Measure()	Unknown
 	[Managed to Native Transition]
 	Microsoft.Maui.dll!Microsoft.Maui.Platform.WindowRootViewContainer.MeasureOverride(Windows.Foundation.Size availableSize)	Unknown
 	Microsoft.WinUI.dll!Microsoft.UI.Xaml.FrameworkElement.Microsoft.UI.Xaml.IFrameworkElementOverrides.MeasureOverride(Windows.Foundation.Size availableSize = {Windows.Foundation.Size})	Unknown
 	Microsoft.WinUI.dll!ABI.Microsoft.UI.Xaml.IFrameworkElementOverrides.Do_Abi_MeasureOverride_0(System.IntPtr thisPtr, Windows.Foundation.Size availableSize, Windows.Foundation.Size* result)	Unknown
 	[Native to Managed Transition]
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkElement::MeasureOverrideFromCore()	Unknown
 	Microsoft.ui.xaml.dll!CFrameworkElement::MeasureCore()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::MeasureInternal()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CUIElement::Measure()	Unknown
 	Microsoft.ui.xaml.dll!CLayoutManager::UpdateLayout()	Unknown
 	Microsoft.ui.xaml.dll!CCoreServices::NWDrawTree()	Unknown
 	Microsoft.ui.xaml.dll!CCoreServices::NWDrawMainTree()	Unknown
 	Microsoft.ui.xaml.dll!CWindowRenderTarget::Draw()	Unknown
 	Microsoft.ui.xaml.dll!CXcpBrowserHost::OnTick()	Unknown
 	Microsoft.ui.xaml.dll!CXcpDispatcher::Tick()	Unknown
 	Microsoft.ui.xaml.dll!CXcpDispatcher::OnReentrancyProtectedWindowMessage()	Unknown
 	Microsoft.ui.xaml.dll!CXcpDispatcher::WindowProc()	Unknown
 	Microsoft.ui.xaml.dll!CDeferredInvoke::DispatchQueuedMessage()	Unknown
 	Microsoft.ui.xaml.dll!Microsoft::WRL::Details::DelegateArgTraits<long (__cdecl ABI::Windows::Foundation::ITypedEventHandler_impl<ABI::Windows::Foundation::Internal::AggregateType<ABI::Microsoft::UI::Dispatching::DispatcherQueueTimer *,ABI::Microsoft::UI::Dispatching::IDispatcherQueueTimer *>,IInspectable *>::*)(ABI::Microsoft::UI::Dispatching::IDispatcherQueueTimer *,IInspectable *)>::DelegateInvokeHelper<Microsoft::WRL::Implements<Microsoft::WRL::RuntimeClassFlags<2>,ABI::Windows::Foundation::ITypedEventHandler<ABI::Microsoft::UI::Dispatching::DispatcherQueueTimer *,IInspectable *>,Microsoft::WRL::FtmBase>,<lambda_e857fdb067b9ae81889f07225ce1ccec> &,1,ABI::Microsoft::UI::Dispatching::IDispatcherQueueTimer *,IInspectable *>::Invoke()	Unknown
 	CoreMessagingXP.dll!Microsoft::WRL::Details::DelegateArgTraits<long ( Windows::Foundation::ITypedEventHandler_impl<struct Windows::Foundation::Internal::AggregateType<class Microsoft::UI::Dispatching::DispatcherQueueTimer *,struct Microsoft::UI::Dispatching::IDispatcherQueueTimer *>,struct IInspectable *>::*)(struct Microsoft::UI::Dispatching::IDispatcherQueueTimer *,struct IInspectable *)>::DelegateInvokeHelper<struct Microsoft::WRL::Implements<struct Microsoft::WRL::RuntimeClassFlags<2>,struct Windows::Foundation::ITypedEventHandler<class Microsoft::UI::Dispatching::DispatcherQueueTimer *,struct IInspectable *>,class Microsoft::WRL::FtmBase>,class <lambda_82cf8073f4f042d1a68771c460cb9f49>,-1,struct Microsoft::UI::Dispatching::IDispatcherQueueTimer *,struct IInspectable *>::Invoke(struct Microsoft::UI::Dispatching::IDispatcherQueueTimer *,struct IInspectable *)	Unknown
 	CoreMessagingXP.dll!Microsoft::WRL::InvokeTraits<-2>::InvokeDelegates<class <lambda_1e854da9c9ccd42f6138c3b007a32877>,struct Windows::Foundation::ITypedEventHandler<class Microsoft::UI::Dispatching::DispatcherQueueTimer *,struct IInspectable *> >(class <lambda_1e854da9c9ccd42f6138c3b007a32877>,class Microsoft::WRL::Details::EventTargetArray *,class Microsoft::WRL::EventSource<struct Windows::Foundation::ITypedEventHandler<class Microsoft::UI::Dispatching::DispatcherQueueTimer *,struct IInspectable *>,struct Microsoft::WRL::InvokeModeOptions<-2> > *)	Unknown
 	CoreMessagingXP.dll!Microsoft::UI::Dispatching::DispatcherQueueTimer::TimerCallback(void *)	Unknown
 	CoreMessagingXP.dll!CFlat::SehSafe::Execute<<lambda_654db17c35df07198786f0867aa10de6>>()	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::TimeoutHandler::ImportAdapter$(class CFlat::Box$1<struct CFlat::FunctionPointerAndUserData$1<long (*)(void *)> > *)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::TimeoutManager::Callback_OnDispatch(void)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::Dispatcher::Callback_DispatchNextItem(class Microsoft::CoreUI::Dispatch::DispatchItem *)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::Dispatcher::Callback_DispatchLoop(enum Microsoft::CoreUI::Dispatch::RunnablePriorityMask)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::EventLoop::Callback_RunCoreLoop(enum Microsoft::CoreUI::Dispatch::RunMode)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::UserAdapter::DrainCoreMessagingQueue(enum Microsoft::CoreUI::Dispatch::UserAdapter$UserPriority,bool,struct CFlat::Ref<struct System::IntPtr>)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::UserAdapter::OnUserDispatch(bool,enum Microsoft::CoreUI::Dispatch::UserAdapter$UserPriority,struct CFlat::Ref<struct System::IntPtr>)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::UserAdapter::OnUserDispatchRaw(enum Microsoft::CoreUI::Dispatch::UserAdapter$UserPriority,bool,struct CFlat::Ref<struct System::IntPtr>)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::UserAdapter::DoWork(struct HWND__ *,enum Microsoft::CoreUI::Dispatch::UserAdapter$UserPriority,bool)	Unknown
 	CoreMessagingXP.dll!Microsoft::CoreUI::Dispatch::UserAdapter::WindowProc(struct HWND__ *,unsigned int,unsigned __int64,__int64)	Unknown
 	user32.dll!UserCallWinProcCheckWow()	Unknown
 	user32.dll!DispatchClientMessage()	Unknown
 	user32.dll!__fnDWORD()	Unknown
 	ntdll.dll!KiUserCallbackDispatcherContinue()	Unknown
 	win32u.dll!NtUserGetMessage()	Unknown
 	user32.dll!GetMessageW()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkApplication::RunDesktopWindowMessageLoop()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkApplication::StartDesktop()	Unknown
 	Microsoft.ui.xaml.dll!DirectUI::FrameworkApplicationFactory::Start()	Unknown

Eilon avatar Aug 30 '22 17:08 Eilon

The same exception that I saw also happens without any Blazor. Lots of various Win32 (or C++?) exceptions, but they are all first-chance, so without a debugger you can't see them.

Eilon avatar Aug 30 '22 17:08 Eilon

Verified this issue with Visual Studio Enterprise 17.7.0 Preview 2.0. Not repro on Windows platform with sample project. MauiAppBlazorModalBug_20220809.zip image

homeyf avatar Jun 25 '23 09:06 homeyf

Hi @reinhardlackner. We have added the "s/try-latest-version" label to this issue, which indicates that we'd like you to try and reproduce this issue on the latest available public version. This can happen because we think that this issue was fixed in a version that has just been released, or the information provided by you indicates that you might be working with an older version.

You can install the latest version by installing the latest Visual Studio (Preview) with the .NET MAUI workload installed. If the issue still persists, please let us know with any additional details and ideally a reproduction project provided through a GitHub repository.

This issue will be closed automatically in 7 days if we do not hear back from you by then - please feel free to re-open it if you come back to this issue after that time.
