Sample image is displayed with inclining.

[HM-1-14]

Hello, DICe team @dicengine,

Your software helped me a lot.

I have one question to ask you.

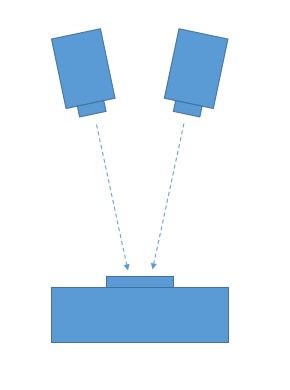

We measure relatively small field of vision. ( Less than 100mm x 100mm) Two cameras are attached to our facilities at an equal angle for the measurement side.

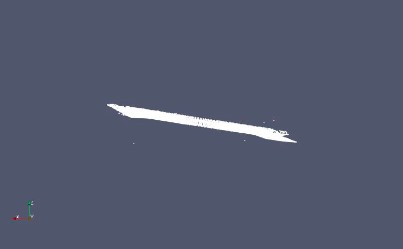

I measured the sample plate on the measurement side, after having calibrated it using a calibration board. Afterwards, the sample image inclined to the x-axis direction when I displayed the result in Paraview.

I want that it is displayed without inclining. Please tell me what I should do.

(The rotary matrix of camera 0 became an identity matrix in the calibration file, and the translation matrix of it became 0. Does this have any relation?)

[dicengine]

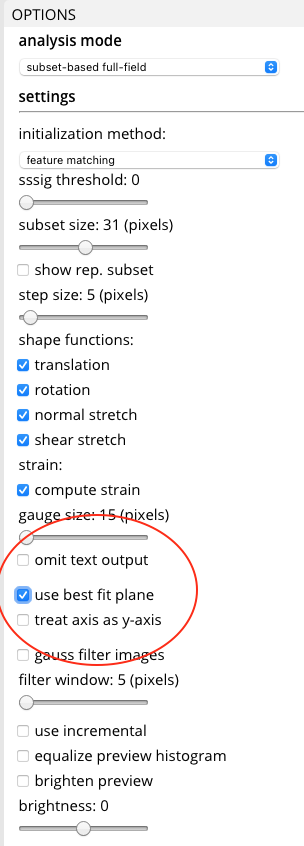

There's an option in the GUI to specify the x-axix "use best fit plane". If you select this option a blue line should show up in the left camera view and you can move the end points around to specify the origin and direction of the x-axis. s

[HM-1-14]

Thanks!
