musicxml2hum system and page break
Output xml file from Muse score includes <print new-system="yes"> for system breaks and <print new-page="yes"> for page breaks. This information is lost in musicxml2hum converter. It would make sense to keep this information in kern output possibly as !!linebreak:original and !!pagebreak:original or similarly.
Implemented in commit https://github.com/craigsapp/humlib/commit/84f4e1b5492c333e23ddf2e71439bf9e83192fb0
These can be called "analytic" page/line breaks as they will not be transferred to MEI for use in layout. It should be possible to enhance the myank tool to work with these global comments, such as:
myank -p 4 -v original
Or extracting line 3 from page 5;
myank -p 5 -l 3 -v original
To extract the music for page four of the "original" variant pages.
Multiple labels could be added to the linebreak/pagebreak system, such as:
!!linebreak:original,edition1,edition2
Where three editions "original", "edition1" and "edition2" all have a system break at the same measure.
One possibility would be to store in the Humdrum file !!!PB:original and @!!LB:original which would be shorter. These would be similar to the layout commands for line and page breaks. The equivalents being !!LO:PB:g=original and !!LO:LB:g=original (but these are not yet implemented in the Humdrum-to-MEI converter). The shorter forms would make it easier to convert to Layout codes.
Another possibility is to allow giving a page/line number after the edition variant, such as:
!!pagebreak:original:5
Where 5 is the page number in the volume containing the work. Then maybe the command:
myank -P 5 -v original
would extract that page's musical content from the full file.
Another possibility is changing the colon to an equals, which would make the page prefix more readable:
!!pagebreak=original:5,edition1:6,edition2:22
!!PB=original:5,edition1:6,edition2:22

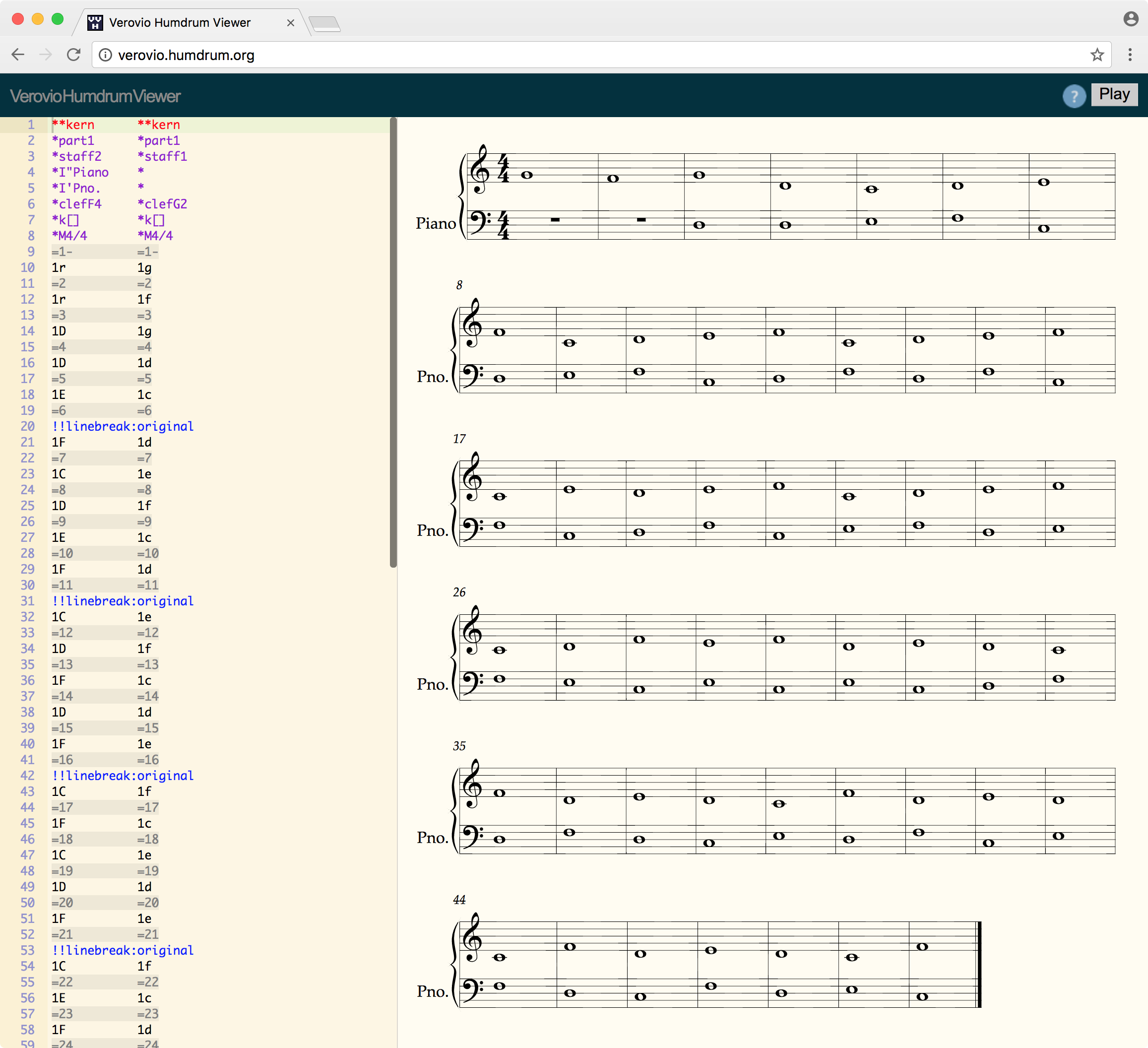

The following MusicXML data (saved to a file) dragged and dropped onto VHV will produce:
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE score-partwise PUBLIC "-//Recordare//DTD MusicXML 3.0 Partwise//EN" "http://www.musicxml.org/dtds/partwise.dtd">
<score-partwise>
<identification>
<encoding>
<software>MuseScore 2.1.0</software>
<encoding-date>2018-02-25</encoding-date>
<supports element="accidental" type="yes"/>
<supports element="beam" type="yes"/>
<supports element="print" attribute="new-page" type="yes" value="yes"/>
<supports element="print" attribute="new-system" type="yes" value="yes"/>
<supports element="stem" type="yes"/>
</encoding>
</identification>
<defaults>
<scaling>
<millimeters>7.05556</millimeters>
<tenths>40</tenths>
</scaling>
<page-layout>
<page-height>1683.36</page-height>
<page-width>1190.88</page-width>
<page-margins type="even">
<left-margin>56.6929</left-margin>
<right-margin>56.6929</right-margin>
<top-margin>56.6929</top-margin>
<bottom-margin>113.386</bottom-margin>
</page-margins>
<page-margins type="odd">
<left-margin>56.6929</left-margin>
<right-margin>56.6929</right-margin>
<top-margin>56.6929</top-margin>
<bottom-margin>113.386</bottom-margin>
</page-margins>
</page-layout>
<word-font font-family="FreeSerif" font-size="10"/>
<lyric-font font-family="FreeSerif" font-size="11"/>
</defaults>
<part-list>
<score-part id="P1">
<part-name>Piano</part-name>
<part-abbreviation>Pno.</part-abbreviation>
<score-instrument id="P1-I1">
<instrument-name>Piano</instrument-name>
</score-instrument>
<midi-device id="P1-I1" port="1"></midi-device>
<midi-instrument id="P1-I1">
<midi-channel>1</midi-channel>
<midi-program>1</midi-program>
<volume>78.7402</volume>
<pan>0</pan>
</midi-instrument>
</score-part>
</part-list>
<part id="P1">
<measure number="1" width="258.24">
<print>
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>-0.00</right-margin>
</system-margins>
<top-system-distance>70.00</top-system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<attributes>
<divisions>1</divisions>
<key>
<fifths>0</fifths>
</key>
<time>
<beats>4</beats>
<beat-type>4</beat-type>
</time>
<staves>2</staves>
<clef number="1">
<sign>G</sign>
<line>2</line>
</clef>
<clef number="2">
<sign>F</sign>
<line>4</line>
</clef>
</attributes>
<note default-x="77.35" default-y="-30.00">
<pitch>
<step>G</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note>
<rest/>
<duration>4</duration>
<voice>5</voice>
<staff>2</staff>
</note>
</measure>
<measure number="2" width="199.56">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note>
<rest/>
<duration>4</duration>
<voice>5</voice>
<staff>2</staff>
</note>
</measure>
<measure number="3" width="199.56">
<note default-x="12.00" default-y="-30.00">
<pitch>
<step>G</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="4" width="199.56">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="5" width="199.56">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="6" width="237.36">
<print new-system="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>0.00</right-margin>
</system-margins>
<system-distance>100.66</system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="7" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="8" width="204.78">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="9" width="204.78">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="10" width="204.78">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="11" width="237.36">
<print new-system="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>0.00</right-margin>
</system-margins>
<system-distance>100.66</system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="12" width="204.78">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="13" width="204.78">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="14" width="204.78">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="15" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="16" width="237.36">
<print new-system="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>0.00</right-margin>
</system-margins>
<system-distance>100.66</system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="17" width="204.78">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="18" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="19" width="204.78">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="20" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="21" width="237.36">
<print new-system="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>0.00</right-margin>
</system-margins>
<system-distance>100.66</system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="22" width="204.78">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="23" width="204.78">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="24" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="25" width="204.78">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="26" width="237.36">
<print new-system="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>0.00</right-margin>
</system-margins>
<system-distance>100.66</system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="27" width="204.78">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="28" width="204.78">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="29" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="30" width="204.78">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="31" width="237.36">
<print new-page="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>0.00</right-margin>
</system-margins>
<top-system-distance>70.00</top-system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="32" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="33" width="204.78">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="34" width="204.78">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="35" width="204.78">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="36" width="237.36">
<print new-system="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>0.00</right-margin>
</system-margins>
<system-distance>150.00</system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="37" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="38" width="204.78">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="39" width="204.78">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="40" width="204.78">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="41" width="237.36">
<print new-system="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>0.00</right-margin>
</system-margins>
<system-distance>150.00</system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="42" width="204.78">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="43" width="204.78">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="44" width="204.78">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="45" width="204.78">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="46" width="235.56">
<print new-system="yes">
<system-layout>
<system-margins>
<left-margin>21.00</left-margin>
<right-margin>-0.00</right-margin>
</system-margins>
<system-distance>150.00</system-distance>
</system-layout>
<staff-layout number="2">
<staff-distance>65.00</staff-distance>
</staff-layout>
</print>
<note default-x="51.25" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="51.25" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="47" width="202.98">
<note default-x="12.00" default-y="-40.00">
<pitch>
<step>E</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-115.00">
<pitch>
<step>F</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="48" width="202.98">
<note default-x="12.00" default-y="-45.00">
<pitch>
<step>D</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-125.00">
<pitch>
<step>D</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="49" width="202.98">
<note default-x="12.00" default-y="-50.00">
<pitch>
<step>C</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-120.00">
<pitch>
<step>E</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
</measure>
<measure number="50" width="211.98">
<note default-x="12.00" default-y="-35.00">
<pitch>
<step>F</step>
<octave>4</octave>
</pitch>
<duration>4</duration>
<voice>1</voice>
<type>whole</type>
<staff>1</staff>
</note>
<backup>
<duration>4</duration>
</backup>
<note default-x="12.00" default-y="-130.00">
<pitch>
<step>C</step>
<octave>3</octave>
</pitch>
<duration>4</duration>
<voice>5</voice>
<type>whole</type>
<staff>2</staff>
</note>
<barline location="right">
<bar-style>light-heavy</bar-style>
</barline>
</measure>
</part>
</score-partwise>
