đError when using tunnel to host website with Unicode character
Describe the bug Error when using tunnel to host website by route traffic via public dns records in cloudflare with domain name with Unicode character.

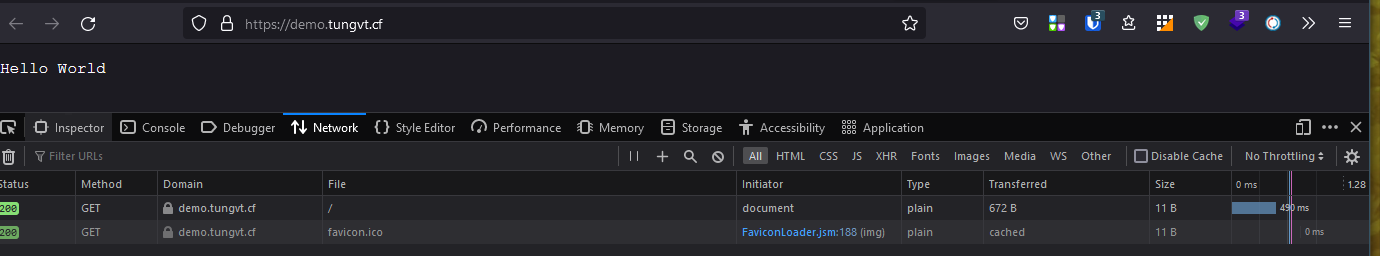

For example with my domain: xn-khn-lna.vn (KhĂ´n.vn) vs tungvt.cf
To Reproduce Steps to reproduce the behavior:
- Add a website to Cloudflare
- Change your domain nameservers to Cloudflare
- Create a Tunnel with these instructions
- Route traffic to that Tunnel: Via public DNS records in Cloudflare
- Try accessing the website
Expected behavior
Unable to access Vietnamese domain with the error code set in Catch-all Rule: http_status: xxx in tunnel config
Environment and versions
- OS: Windows 10
- Architecture: Intel Xeon E3 1270 v6
- Version: [e.g. 2022.02.0]
Logs and errors If applicable, add logs or errors to help explain your problem.
Additional context Add any other context about the problem here.
Hey @SilverKnightKMA ! We tried adding this to the UI with no problems. What do you mean by Unable to access Vietnamese domain with the error code set in Catch-all Rule: http_status: xxx in tunnel config ? Are you trying to hit this eyeball with no results?
What is the response code? Are you seeing errors on cloudflared's side?
What do you mean by Unable to access Vietnamese domain with the error code set in Catch-all Rule: http_status: xxx in tunnel config ?
What is the response code?
Response Code is what I get when I change Catch-all rule: http_status. For example, when I leave it 401, when I visit Vietnamese Domain, HTTP Response will be 401.
Are you trying to hit this eyeball with no results?

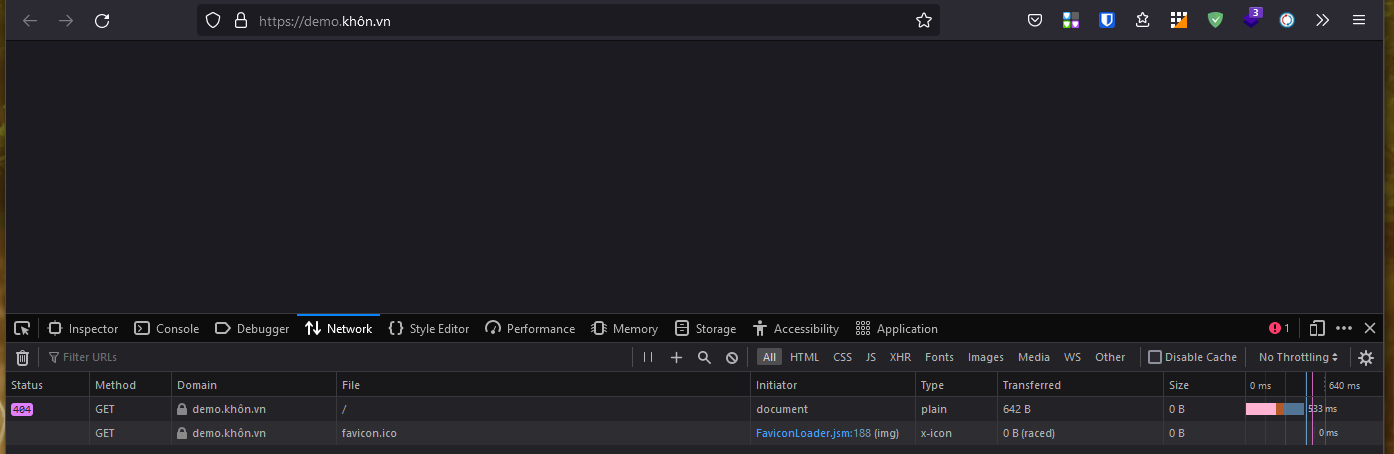

When I access the Vietnamese domain, everything is empty, if it is a normal domain, you can access it normally like in the screenshot.
Are you seeing errors on cloudflared's side?
I don't see any errors at all, everything is fine.
Thanks @SilverKnightKMA . Can you also give me your tunnel_id? This is public information and is only a reference to your tunnel. No credentials are based on this.
I looked in our logs and I didn't see anything out of the ordinary, could you run your cloudflared instance with cloudflared tunnel --loglevel debug run to see if your request makes it to cloudflared? Or if there are any reported errors in the logs?
2022-08-29T06:12:21Z INF Starting tunnel tunnelID=e21353e3-31da-4cff-bc5f-12791ee3ccef
2022-08-29T06:12:21Z INF Cannot determine default configuration path. No file [config.yml config.yaml] in [~/.cloudflared ~/.cloudflare-warp ~/cloudflare-warp]
2022-08-29T06:12:21Z INF Version 2022.7.1
2022-08-29T06:12:21Z INF GOOS: windows, GOVersion: go1.17.10, GoArch: amd64
2022-08-29T06:12:21Z INF Settings: map[loglevel:debug token:*****]
2022-08-29T06:12:21Z INF cloudflared will not automatically update on Windows systems.
2022-08-29T06:12:21Z INF Generated Connector ID: 9d51d244-3ef7-4161-8403-56158667dd78
2022-08-29T06:12:21Z INF Will be fetching remotely managed configuration from Cloudflare API. Defaulting to protocol: quic
2022-08-29T06:12:21Z INF Initial protocol quic
2022-08-29T06:12:21Z INF cloudflared does not support loading the system root certificate pool on Windows. Please use --origin-ca-pool <PATH> to specify the path to the certificate pool
2022-08-29T06:12:22Z INF Starting metrics server on 127.0.0.1:57892/metrics
2022-08-29T06:12:22Z DBG looking up edge SRV record domain=_v2-origintunneld._tcp.argotunnel.com
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.37:7844 UDP:198.41.192.37:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.27:7844 UDP:198.41.192.27:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.7:7844 UDP:198.41.192.7:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.67:7844 UDP:198.41.192.67:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.77:7844 UDP:198.41.192.77:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.57:7844 UDP:198.41.192.57:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.227:7844 UDP:198.41.192.227:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.167:7844 UDP:198.41.192.167:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.47:7844 UDP:198.41.192.47:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.192.107:7844 UDP:198.41.192.107:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.73:7844 UDP:198.41.200.73:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.13:7844 UDP:198.41.200.13:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.23:7844 UDP:198.41.200.23:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.233:7844 UDP:198.41.200.233:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.63:7844 UDP:198.41.200.63:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.113:7844 UDP:198.41.200.113:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.193:7844 UDP:198.41.200.193:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.53:7844 UDP:198.41.200.53:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.33:7844 UDP:198.41.200.33:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG Edge Address: {TCP:198.41.200.43:7844 UDP:198.41.200.43:7844 IPVersion:4}
2022-08-29T06:12:22Z DBG edgediscovery - GetAddr: Giving connection its new address connIndex=0 ip=198.41.200.13
2022-08-29T06:12:22Z DBG rpcconnect: tx (bootstrap = (questionId = 0, deprecatedObjectId = <opaque pointer>))
2022-08-29T06:12:22Z DBG rpcconnect: tx (call = (questionId = 1, target = (promisedAnswer = (questionId = 0, transform = [])), interfaceId = 17804583019846587543, methodId = 0, allowThirdPartyTailCall = false, params = (content = <opaque pointer>, capTable = []), sendResultsTo = (caller = void)))
2022-08-29T06:12:22Z WRN Your version 2022.7.1 is outdated. We recommend upgrading it to 2022.8.2
2022-08-29T06:12:22Z DBG rpcconnect: rx (return = (answerId = 0, releaseParamCaps = false, results = (content = <opaque pointer>, capTable = [(senderHosted = 0)])))
2022-08-29T06:12:22Z DBG rpcconnect: tx (finish = (questionId = 0, releaseResultCaps = false))
2022-08-29T06:12:23Z DBG rpcconnect: rx (return = (answerId = 1, releaseParamCaps = false, results = (content = <opaque pointer>, capTable = [])))
2022-08-29T06:12:23Z INF cloudflared does not support loading the system root certificate pool on Windows. Please use --origin-ca-pool <PATH> to specify the path to the certificate pool
2022-08-29T06:12:23Z INF Connection bf6186bd-8062-4bde-a637-554d12dbe3ae registered connIndex=0 ip=198.41.200.13 location=SIN
2022-08-29T06:12:23Z DBG rpcconnect: tx (finish = (questionId = 1, releaseResultCaps = false))
2022-08-29T06:12:23Z INF cloudflared does not support loading the system root certificate pool on Windows. Please use --origin-ca-pool <PATH> to specify the path to the certificate pool
2022-08-29T06:12:23Z DBG edgediscovery - GetAddr: Giving connection its new address connIndex=1 ip=198.41.192.37
2022-08-29T06:12:23Z INF Updated to new configuration config="{\"ingress\":[{\"hostname\":\"demo.tungvt.cf\",\"originRequest\":{},\"service\":\"http://10.20.87.59\"},{\"hostname\":\"demo.khĂ´n.vn\",\"originRequest\":{},\"service\":\"http://10.20.87.59\"},{\"service\":\"http_status:404\"}],\"warp-routing\":{\"enabled\":false}}" version=18
2022-08-29T06:12:23Z DBG rpcconnect: tx (bootstrap = (questionId = 0, deprecatedObjectId = <opaque pointer>))
2022-08-29T06:12:23Z DBG rpcconnect: tx (call = (questionId = 1, target = (promisedAnswer = (questionId = 0, transform = [])), interfaceId = 17804583019846587543, methodId = 0, allowThirdPartyTailCall = false, params = (content = <opaque pointer>, capTable = []), sendResultsTo = (caller = void)))
2022-08-29T06:12:23Z DBG rpcconnect: rx (return = (answerId = 0, releaseParamCaps = false, results = (content = <opaque pointer>, capTable = [(senderHosted = 0)])))
2022-08-29T06:12:23Z DBG rpcconnect: tx (finish = (questionId = 0, releaseResultCaps = false))
2022-08-29T06:12:23Z DBG rpcconnect: rx (return = (answerId = 1, releaseParamCaps = false, results = (content = <opaque pointer>, capTable = [])))
2022-08-29T06:12:23Z DBG rpcconnect: tx (finish = (questionId = 1, releaseResultCaps = false))
2022-08-29T06:12:23Z INF Connection 118c60c0-5d74-425a-a14b-0e1594e245ec registered connIndex=1 ip=198.41.192.37 location=HKG
2022-08-29T06:12:24Z DBG edgediscovery - GetAddr: Giving connection its new address connIndex=2 ip=198.41.200.63
2022-08-29T06:12:24Z DBG rpcconnect: tx (bootstrap = (questionId = 0, deprecatedObjectId = <opaque pointer>))
2022-08-29T06:12:24Z DBG rpcconnect: tx (call = (questionId = 1, target = (promisedAnswer = (questionId = 0, transform = [])), interfaceId = 17804583019846587543, methodId = 0, allowThirdPartyTailCall = false, params = (content = <opaque pointer>, capTable = []), sendResultsTo = (caller = void)))
2022-08-29T06:12:24Z DBG rpcconnect: rx (return = (answerId = 0, releaseParamCaps = false, results = (content = <opaque pointer>, capTable = [(senderHosted = 0)])))
2022-08-29T06:12:24Z DBG rpcconnect: tx (finish = (questionId = 0, releaseResultCaps = false))
2022-08-29T06:12:25Z DBG edgediscovery - GetAddr: Giving connection its new address connIndex=3 ip=198.41.192.67
2022-08-29T06:12:25Z DBG rpcconnect: tx (bootstrap = (questionId = 0, deprecatedObjectId = <opaque pointer>))
2022-08-29T06:12:25Z DBG rpcconnect: tx (call = (questionId = 1, target = (promisedAnswer = (questionId = 0, transform = [])), interfaceId = 17804583019846587543, methodId = 0, allowThirdPartyTailCall = false, params = (content = <opaque pointer>, capTable = []), sendResultsTo = (caller = void)))
2022-08-29T06:12:25Z DBG rpcconnect: rx (return = (answerId = 0, releaseParamCaps = false, results = (content = <opaque pointer>, capTable = [(senderHosted = 0)])))
2022-08-29T06:12:25Z DBG rpcconnect: tx (finish = (questionId = 0, releaseResultCaps = false))
2022-08-29T06:12:25Z DBG rpcconnect: rx (return = (answerId = 1, releaseParamCaps = false, results = (content = <opaque pointer>, capTable = [])))
2022-08-29T06:12:25Z INF Connection 23bc02cd-6476-429d-9b77-74c5a94f0322 registered connIndex=2 ip=198.41.200.63 location=SIN
2022-08-29T06:12:25Z DBG rpcconnect: tx (finish = (questionId = 1, releaseResultCaps = false))
2022-08-29T06:12:25Z DBG rpcconnect: rx (return = (answerId = 1, releaseParamCaps = false, results = (content = <opaque pointer>, capTable = [])))
2022-08-29T06:12:25Z DBG rpcconnect: tx (finish = (questionId = 1, releaseResultCaps = false))
2022-08-29T06:12:25Z INF Connection cfb155bb-cbb6-49ca-a5da-9e3d85927b32 registered connIndex=3 ip=198.41.192.67 location=HKG
2022-08-29T06:12:28Z DBG CF-RAY: 7423236bc924464f-SIN GET https://demo.tungvt.cf/ HTTP/1.1
2022-08-29T06:12:28Z DBG Inbound request CF-RAY=7423236bc924464f-SIN Header="map[Accept:[text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8] Accept-Encoding:[gzip] Accept-Language:[en-US,en;q=0.5] Cdn-Loop:[cloudflare] Cf-Connecting-Ip:[101.96.121.196] Cf-Ipcountry:[VN] Cf-Ray:[7423236bc924464f-SIN] Cf-Visitor:[{\"scheme\":\"https\"}] Cf-Warp-Tag-Id:[016d7373-dfe0-45d7-a1e7-d99b9d204d2f] Priority:[u=1] Referer:[https://dash.teams.cloudflare.com/] Sec-Fetch-Dest:[document] Sec-Fetch-Mode:[navigate] Sec-Fetch-Site:[cross-site] Sec-Fetch-User:[?1] Upgrade-Insecure-Requests:[1] User-Agent:[Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:104.0) Gecko/20100101 Firefox/104.0] X-Forwarded-For:[101.96.121.196] X-Forwarded-Proto:[https]]" host=demo.tungvt.cf path=/ rule=0
2022-08-29T06:12:28Z DBG CF-RAY: 7423236bc924464f-SIN Request content length 0
2022-08-29T06:12:28Z DBG CF-RAY: 7423236bc924464f-SIN Status: 200 OK served by ingress 0
2022-08-29T06:12:28Z DBG CF-RAY: 7423236bc924464f-SIN Response Headers map[Cache-Control:[private, no-cache, no-store, must-revalidate] Connection:[keep-alive] Content-Length:[721] Content-Security-Policy:[default-src 'self';script-src 'self' 'unsafe-inline' http://cdn.jsdelivr.net/npm/@apollographql/;style-src 'self' 'unsafe-inline' http://cdn.jsdelivr.net/npm/@apollographql/ https://fonts.googleapis.com/;script-src-attr 'self' 'unsafe-inline' http://cdn.jsdelivr.net/npm/@apollographql/ https://fonts.googleapis.com/;font-src 'self' data: https://fonts.gstatic.com/;img-src 'self' data: https://* http://*;connect-src 'self' wss://* ws://* data: http://* https://*;object-src 'self' data: http://* https://*;frame-src 'self' data: http://* https://*] Content-Type:[text/html; charset=utf-8] Date:[Mon, 29 Aug 2022 06:13:07 GMT] Etag:[W/"2d1-d8nrOJgBe12aS0jtebjIn4tChzI"] Expect-Ct:[max-age=30, enforce] Expires:[-1] Keep-Alive:[timeout=5] Origin-Agent-Cluster:[?1] Pragma:[no-cache] Referrer-Policy:[unsafe-url] Strict-Transport-Security:[max-age=15552000; includeSubDomains] Vary:[Accept-Encoding] X-Content-Type-Options:[nosniff] X-Dns-Prefetch-Control:[off] X-Download-Options:[noopen] X-Frame-Options:[SAMEORIGIN] X-Permitted-Cross-Domain-Policies:[none] X-Ratelimit-Limit:[10000] X-Ratelimit-Remaining:[9999] X-Ratelimit-Reset:[1661753588] X-Xss-Protection:[0]]
2022-08-29T06:12:28Z DBG CF-RAY: 7423236bc924464f-SIN Response content length 721
2022-08-29T06:12:32Z DBG CF-RAY: 7423237fe9c5464f-SIN POST https://demo.tungvt.cf/graphql HTTP/1.1
2022-08-29T06:12:32Z DBG Inbound request CF-RAY=7423237fe9c5464f-SIN Header="map[Accept:[*/*] Accept-Encoding:[gzip] Accept-Language:[en-US,en;q=0.5] Cdn-Loop:[cloudflare] Cf-Connecting-Ip:[101.96.121.196] Cf-Ipcountry:[VN] Cf-Ray:[7423237fe9c5464f-SIN] Cf-Visitor:[{\"scheme\":\"https\"}] Cf-Warp-Tag-Id:[016d7373-dfe0-45d7-a1e7-d99b9d204d2f] Content-Length:[1169] Content-Type:[application/json] Origin:[https://demo.tungvt.cf] Priority:[u=4] Referer:[https://demo.tungvt.cf/dashboard] Sec-Fetch-Dest:[empty] Sec-Fetch-Mode:[cors] Sec-Fetch-Site:[same-origin] User-Agent:[Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:104.0) Gecko/20100101 Firefox/104.0] X-Forwarded-For:[101.96.121.196] X-Forwarded-Proto:[https]]" host=demo.tungvt.cf path=/graphql rule=0
2022-08-29T06:12:32Z DBG CF-RAY: 7423237fe9c5464f-SIN Request content length 1169
2022-08-29T06:12:32Z DBG CF-RAY: 7423237fe9c5464f-SIN Status: 200 OK served by ingress 0
2022-08-29T06:12:32Z DBG CF-RAY: 7423237fe9c5464f-SIN Response Headers map[Access-Control-Allow-Origin:[*] Connection:[keep-alive] Content-Length:[1647] Content-Type:[application/json; charset=utf-8] Date:[Mon, 29 Aug 2022 06:13:10 GMT] Etag:[W/"66f-qNmjLVTYzELXaJ6docZzldHeytg"] Keep-Alive:[timeout=5] X-Powered-By:[Express]]
2022-08-29T06:12:32Z DBG CF-RAY: 7423237fe9c5464f-SIN Response content length 1647
2022-08-29T06:12:32Z DBG CF-RAY: 74232384faf1464f-SIN POST https://demo.tungvt.cf/graphql HTTP/1.1
2022-08-29T06:12:32Z DBG Inbound request CF-RAY=74232384faf1464f-SIN Header="map[Accept:[*/*] Accept-Encoding:[gzip] Accept-Language:[en-US,en;q=0.5] Cdn-Loop:[cloudflare] Cf-Connecting-Ip:[101.96.121.196] Cf-Ipcountry:[VN] Cf-Ray:[74232384faf1464f-SIN] Cf-Visitor:[{\"scheme\":\"https\"}] Cf-Warp-Tag-Id:[016d7373-dfe0-45d7-a1e7-d99b9d204d2f] Content-Length:[983] Content-Type:[application/json] Origin:[https://demo.tungvt.cf] Priority:[u=4] Referer:[https://demo.tungvt.cf/dashboard] Sec-Fetch-Dest:[empty] Sec-Fetch-Mode:[cors] Sec-Fetch-Site:[same-origin] User-Agent:[Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:104.0) Gecko/20100101 Firefox/104.0] X-Forwarded-For:[101.96.121.196] X-Forwarded-Proto:[https]]" host=demo.tungvt.cf path=/graphql rule=0
2022-08-29T06:12:32Z DBG CF-RAY: 74232384faf1464f-SIN Request content length 983
2022-08-29T06:12:32Z DBG CF-RAY: 74232384faf1464f-SIN Status: 200 OK served by ingress 0
2022-08-29T06:12:32Z DBG CF-RAY: 74232384faf1464f-SIN Response Headers map[Access-Control-Allow-Origin:[*] Connection:[keep-alive] Content-Length:[865] Content-Type:[application/json; charset=utf-8] Date:[Mon, 29 Aug 2022 06:13:10 GMT] Etag:[W/"361-/mNT7QyhOAP6WmmH3hfbmKa80uU"] Keep-Alive:[timeout=5] X-Powered-By:[Express]]
2022-08-29T06:12:32Z DBG CF-RAY: 74232384faf1464f-SIN Response content length 865
2022-08-29T06:12:39Z DBG CF-RAY: 742323ac684b4673-SIN GET https://demo.xn--khn-lna.vn/ HTTP/1.1
2022-08-29T06:12:39Z DBG Inbound request CF-RAY=742323ac684b4673-SIN Header="map[Accept:[text/html,application/xhtml+xml,application/xml;q=0.9,image/avif,image/webp,*/*;q=0.8] Accept-Encoding:[gzip] Accept-Language:[en-US,en;q=0.5] Cdn-Loop:[cloudflare] Cf-Connecting-Ip:[101.96.121.196] Cf-Ipcountry:[VN] Cf-Ray:[742323ac684b4673-SIN] Cf-Visitor:[{\"scheme\":\"https\"}] Cf-Warp-Tag-Id:[016d7373-dfe0-45d7-a1e7-d99b9d204d2f] Priority:[u=1] Referer:[https://dash.teams.cloudflare.com/] Sec-Fetch-Dest:[document] Sec-Fetch-Mode:[navigate] Sec-Fetch-Site:[cross-site] Sec-Fetch-User:[?1] Upgrade-Insecure-Requests:[1] User-Agent:[Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:104.0) Gecko/20100101 Firefox/104.0] X-Forwarded-For:[101.96.121.196] X-Forwarded-Proto:[https]]" host=demo.xn--khn-lna.vn path=/ rule=2
2022-08-29T06:12:39Z DBG CF-RAY: 742323ac684b4673-SIN Request content length 0
2022-08-29T06:12:39Z DBG CF-RAY: 742323ac684b4673-SIN Status: 404 Not Found served by ingress 2
2022-08-29T06:12:39Z DBG CF-RAY: 742323ac684b4673-SIN Response Headers map[]
2022-08-29T06:12:39Z DBG CF-RAY: 742323ac684b4673-SIN Response content length 0
2022-08-29T06:12:39Z DBG CF-RAY: 742323b1295d4673-SIN GET https://demo.xn--khn-lna.vn/favicon.ico HTTP/1.1
2022-08-29T06:12:39Z DBG Inbound request CF-RAY=742323b1295d4673-SIN Header="map[Accept:[image/avif,image/webp,*/*] Accept-Encoding:[gzip] Accept-Language:[en-US,en;q=0.5] Cdn-Loop:[cloudflare] Cf-Connecting-Ip:[101.96.121.196] Cf-Ipcountry:[VN] Cf-Ray:[742323b1295d4673-SIN] Cf-Visitor:[{\"scheme\":\"https\"}] Cf-Warp-Tag-Id:[016d7373-dfe0-45d7-a1e7-d99b9d204d2f] Priority:[u=6] Referer:[https://demo.xn--khn-lna.vn/] Sec-Fetch-Dest:[image] Sec-Fetch-Mode:[no-cors] Sec-Fetch-Site:[same-origin] User-Agent:[Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:104.0) Gecko/20100101 Firefox/104.0] X-Forwarded-For:[101.96.121.196] X-Forwarded-Proto:[https]]" host=demo.xn--khn-lna.vn path=/favicon.ico rule=2
2022-08-29T06:12:39Z DBG CF-RAY: 742323b1295d4673-SIN Request content length 0
2022-08-29T06:12:39Z DBG CF-RAY: 742323b1295d4673-SIN Status: 404 Not Found served by ingress 2
2022-08-29T06:12:39Z DBG CF-RAY: 742323b1295d4673-SIN Response Headers map[]
2022-08-29T06:12:39Z DBG CF-RAY: 742323b1295d4673-SIN Response content length 0
2022-08-29T06:12:48Z INF Initiating graceful shutdown due to signal interrupt ...
2022-08-29T06:12:48Z DBG Graceful shutdown signalled
2022-08-29T06:12:48Z DBG rpcconnect: tx (call = (questionId = 1, target = (importedCap = 0), interfaceId = 17804583019846587543, methodId = 1, allowThirdPartyTailCall = false, params = (content = <opaque pointer>, capTable = []), sendResultsTo = (caller = void)))
2022-08-29T06:12:48Z DBG rpcconnect: tx (call = (questionId = 1, target = (importedCap = 0), interfaceId = 17804583019846587543, methodId = 1, allowThirdPartyTailCall = false, params = (content = <opaque pointer>, capTable = []), sendResultsTo = (caller = void)))
2022-08-29T06:12:48Z DBG rpcconnect: tx (call = (questionId = 1, target = (importedCap = 0), interfaceId = 17804583019846587543, methodId = 1, allowThirdPartyTailCall = false, params = (content = <opaque pointer>, capTable = []), sendResultsTo = (caller = void)))
2022-08-29T06:12:48Z DBG rpcconnect: tx (call = (questionId = 1, target = (importedCap = 0), interfaceId = 17804583019846587543, methodId = 1, allowThirdPartyTailCall = false, params = (content = <opaque pointer>, capTable = []), sendResultsTo = (caller = void)))
I have sent requests to 2 domains pointing to the same host, demo.tungvt.cf and demo.xn-khn-lna.vn (demo.khĂ´n.vn)
Those logs show that:
- demo.tungvt.cf was handled correctly, responding with 200 OK, after talking to localhost:32400
- demo.xn-khn-lna.vn had a 404 because it found no matching public hostname rule in your Tunnel config
You seem to be indicating that you expect that to match asf.khĂ´n.vn ? I may be missing something, but nothing will convert demo.xn-khn-lna.vn into asf.khĂ´n.vn in the cloudflared tunnel route matching, so that's why you are getting a 404. Why isn't your ingress rule using demo.xn-khn-lna.vn ?

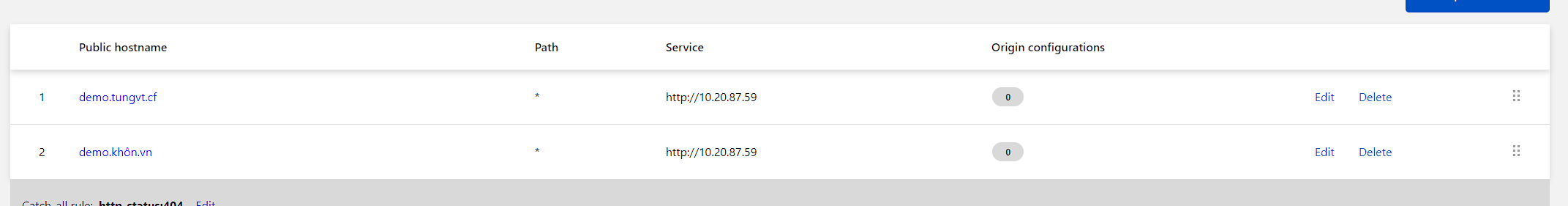

Let me correct you, both are subdomains in the form of demo.${domain}, you can see it in the config
2022-08-29T06:12:23Z INF Updated to new configuration config="{\"ingress\":[{\"hostname\":\"demo.tungvt.cf\",\"originRequest\":{},\"service\":\"http://10.20.87.59\"},{\"hostname\":\"demo.khĂ´n.vn\",\"originRequest\":{},\"service\":\"http://10.20.87.59\"},{\"service\":\"http_status:404\"}],\"warp-routing\":{\"enabled\":false}}" version=18
demo.xn-khn-lna.vn had a 404 because it found no matching public hostname rule in your Tunnel config
As far as I can see, the domain in the config sent to cloudflared agent is demo.khĂ´n.vn, and when the request is sent, it's demo.xn--khn-lna.vn I can't set it to demo.xn--khn-lna.vn because the web config doesn't allow it
Oh, and I would like to update the current tunnel id: e21353e3-31da-4cff-bc5f-12791ee3ccef
As far as I can see, the domain in the config sent to cloudflared agent is demo.khĂ´n.vn, and when the request is sent, it's demo.xn--khn-lna.vn I can't set it to demo.xn--khn-lna.vn because the web config doesn't allow it
When you go to https://dash.cloudflare.com/websites and click on the zone (the one about this problematic hostname), what is the Zone ID that shows up on the right?
Thanks. While I understand this to be wrong, it's not clear to me where the issue lies (within our systems) so we'll have to take some time to investigate.
One final question: your first post shows that you access your Unicode hostname and the Network tooling in your browser shows that the same exactly string is sent over the wire.
However, when I tried that (on Chrome, Safari and Firefox), it always gets converted with Punnycode (https://en.wikipedia.org/wiki/Punycode) which is the source of the problem.
Did you configure anything in your browser for that? Maybe it depends on the OS lang configured.
As far as I remember, when sending a request from the browser to an address with special characters, it is always converted to Punnycode as you said. The text you see on my machine is just for display.
In my opinion, this is a problem of web config as it fixes the domain by the real domain, not the punnycode domain

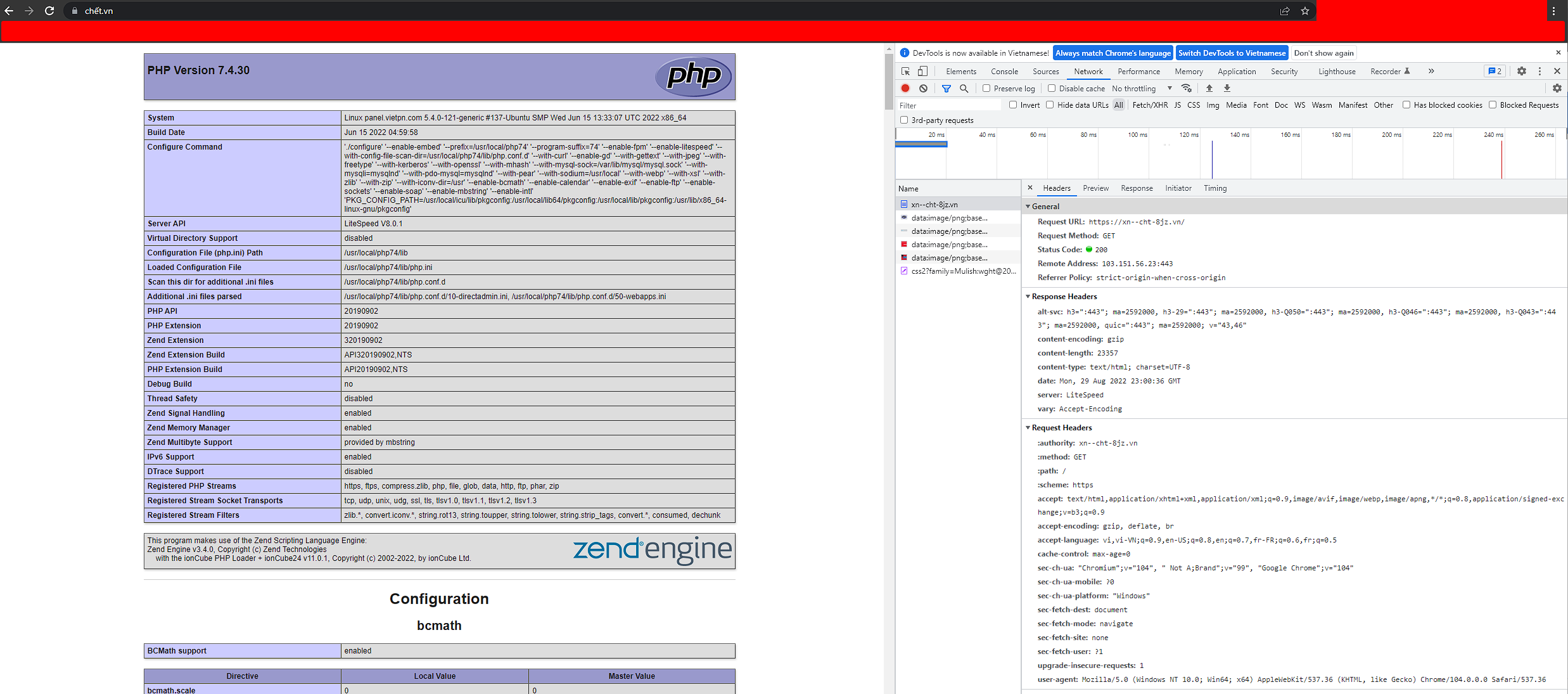

Proof from another demo website of my friend, although it doesn't use cloudflared, it's a Vietnamese domain with special character.
To help address this, we will now locally construct the punycode version of hostname for the ingress rule and apply it to incoming requests (https://github.com/cloudflare/cloudflared/commit/b3e26420c082e250447038a3d66301ce63ad87eb). Feel free to try out the master branch version of cloudflared or this should be available in the next release!
