USB ports with usb map kext seems wrong in hackintool - monterey 12.4 vm in qemu

[82ghost82]

Hi! I'm not sure it's a proper issue, but for me it doesn't look correct what I'm seeing in hackintool 3.8.7. I'm running a mac os monterey 12.4 virtual machine inside qemu 7.0 + libvirt. I have an usb map kext to define my ports. Here are my usb controllers:

1. Fresco logic pcie usb card (passed through from the host to the vm)
2. virtual ehci controller defined in libvirt xml
3. virtual uhci companion controller defined in libvirt xml Here the relevant blocks of the vm xml:

usb 2/1 virtual controllers:

    <controller type='usb' index='0' model='ich9-ehci1'>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x1'/>
    </controller>
    <controller type='usb' index='0' model='ich9-uhci1'>
      <master startport='0'/>
      <address type='pci' domain='0x0000' bus='0x00' slot='0x04' function='0x0' multifunction='on'/>
    </controller>

Fresco logic card passed through:

    <hostdev mode='subsystem' type='pci' managed='yes'>
      <driver name='vfio'/>
      <source>
        <address domain='0x0000' bus='0x84' slot='0x00' function='0x0'/>
      </source>
      <address type='pci' domain='0x0000' bus='0x04' slot='0x00' function='0x0'/>
    </hostdev>

Layout is as follows: A kvm switch is attached to a Fresco logic port (input port 1), input port 2 is attached to another usb 2 port of the host system, mouse/keyboard dongle is attached to the output port of the kvm switch (this to be able to use keyboard/mouse both in the vm and in the host). A webcam is atatched to the virtual controller ehci. A usb wifi dongle is attached to the virtual controller ehci.

I have the usb map kext injected for ehci and xhci (for uhci only power properties): USBPower.kext.zip

My ioreg seems correct: ioreg.zip

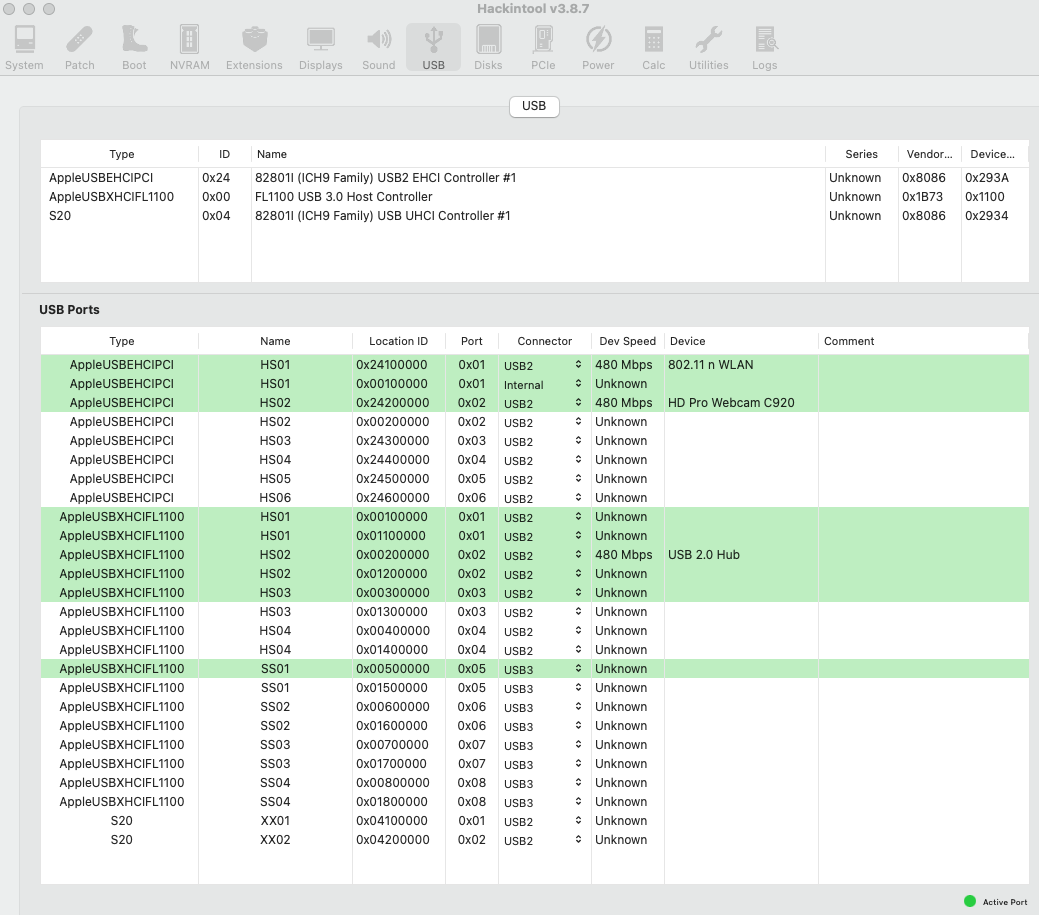

But what I'm seeing in hackintool doesn't seem correct, I can see several double entries for my ports (?)

Is this my config error or a bug in hackintool?
