No output file-Inkscape message error
Hello, I'm triying to use the extension but I'm having problems with the "Export to kicad" step. When I prepare the test viruspcb and I click on export as a module and I click on apply Inskcape return the following Python traceback from the extension:
Traceback (most recent call last): File "export.py", line 750, in <module> _main() File "export.py", line 746, in _main e.run() File "/snap/inkscape/7921/share/inkscape/extensions/inkex/base.py", line 140, in run self.save_raw(self.effect()) File "export.py", line 323, in effect self.processExportLayer() File "export.py", line 497, in processExportLayer with open(kicad_file, 'r') as f: FileNotFoundError: [Errno 2] No such file or directory: '/home/jcarolinares/snap/inkscape/7921/.svg2shenzhen-cache/viruspcb.pretty/F.Cu_g8165.kicad_mod'
My setup is:
- Ubuntu 16.04
- Snap packet of Inkscape. Inkscape version 1.0
Any idea about how to fix this problem? Thank you!
Hello!
It happens with every .svg file, but in this case, the log is from the example file "viruspcb" found on the readme of this repo:
https://raw.githubusercontent.com/badgeek/svg2shenzhen-next/master/examples/viruspcb.svg
I've tried to figure myself what is happening but no luck.
Regards!

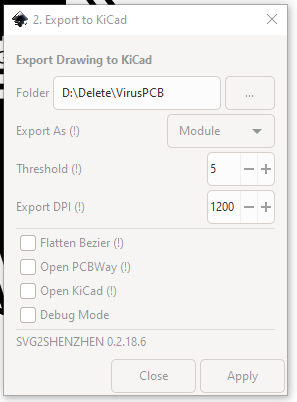

@jcarolinares I just exported without any error in windows. By looking at your error looks like you have Open KiCad option checked. Try one more time by unchecking all options under Export to Kicad.
Something Like this....
Hi.
Sorry, but I'm using Ubuntu 16.04 as I commented above... Yes, of course, it works on windows, the problem is on Ubuntu 16.04 :+1:
The error happens with the "open on Kicad", flatten bezier, and PCBway unchecked.
Regards
can you screenshot me "Export to Kicad" dialog ?
On Fri, Sep 11, 2020 at 7:13 PM Julián Caro Linares < [email protected]> wrote:
Hi.
Sorry, but I'm using Ubuntu 16.04 as I commented above... Yes, of course, it works on windows, the problem is on Ubuntu 16.04 👍
The error happens with the "open on Kicad", flatten bezier, and PCBway unchecked.
Regards
— You are receiving this because you are subscribed to this thread. Reply to this email directly, view it on GitHub https://github.com/badgeek/svg2shenzhen/issues/104#issuecomment-691057262, or unsubscribe https://github.com/notifications/unsubscribe-auth/AAAPZ4GMYXDY3Z6JE6XO5ILSFIH5ZANCNFSM4Q534B4A .
-- Budi Prakosa e: [email protected] | [email protected] p: +62 811 268 995 w: manticore.deadmediafm.org | lifepatch.org
It looks like there's an error preventing the file in the cache from being created.
I saw this when bitmap2component_linux64 wasn't found... though there could be other reasons, like not returning or checking any error code.
