List and Export linked files

[leoheck]

This is an attempt to list unique linked files of the assembly. I also export files into a zip package with the name of the file + asm4_zip in the assembly folder.

[hasecilu]

I tried to load the changes but no icons are loaded in the WB, there is something in InitGui.py that breaks it. Edit: ok, I'll check it but i have a problem with dependencies

[leoheck]

Thanks. It happens that Freecad has a different file path for the file being loaded when using the GUI and the CLI. I improved the behavior of the zip exporter.

Now, I don't have issues with InitGui.py Could you check if your copy it is updated and does not have changes?

[hasecilu]

Is anytree, I have it in my system but not in FreeCAD's enviroment

[leoheck]

Did you do/try this?

sudo -H pip install anytree

[leoheck]

I installed it this way and it was working.

[hasecilu]

Ok, I solved it copying the anytree folder to the A4 folder.

The icon of List Linked Files is white/light gray and very similiar the the BOM buttons, maybe change to a similar color as List Linked Files (Tree) to have them "grouped" visually? Both commands work fine. There are typos in the svg files they say: Liked.

I got some errors with Export FIles and I think it's because those files were used more than once in the Assembly, so the function tries to add them again.

13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/T8_leadscrew/T8_leadscrew_500mm.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/SHF08/SHF08.FCStd
13:22:32  /snap/freecad-realthunder/70/usr/lib/python3.8/zipfile.py:1517: UserWarning: Duplicate name: 'cad/FreeCAD-library/SHF08/SHF08.FCStd'
  return self._open_to_write(zinfo, force_zip64=force_zip64)
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/KFL08/KFL08.FCStd
13:22:32  /snap/freecad-realthunder/70/usr/lib/python3.8/zipfile.py:1517: UserWarning: Duplicate name: 'cad/FreeCAD-library/KFL08/KFL08.FCStd'
  return self._open_to_write(zinfo, force_zip64=force_zip64)
13:22:32  ASM4> [ZIP] Adding file: sub-assemblies/Electronics.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/Board4electronics.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/step/Arduino_CNC_shield.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/step/Fuente_12V_10A.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/Slot_T_nuts/Slot_T_nuts.FCStd
13:22:32  /snap/freecad-realthunder/70/usr/lib/python3.8/zipfile.py:1517: UserWarning: Duplicate name: 'cad/FreeCAD-library/Slot_T_nuts/Slot_T_nuts.FCStd'
  return self._open_to_write(zinfo, force_zip64=force_zip64)
13:22:32  ASM4> [ZIP] Adding file: cad/Spacer_20.FCStd
13:22:32  ASM4> [ZIP] Adding file: sub-assemblies/SW_X.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/step/Limit_SW_PCB.FCStd
13:22:32  /snap/freecad-realthunder/70/usr/lib/python3.8/zipfile.py:1517: UserWarning: Duplicate name: 'cad/step/Limit_SW_PCB.FCStd'
  return self._open_to_write(zinfo, force_zip64=force_zip64)
13:22:32  ASM4> [ZIP] Adding file: sub-assemblies/Green.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FDM/Light.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/step/Green_indicator.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/NEMA/NEMA_17_with_connector.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/Steel L-Bracket for NEMA 17.FCStd
13:22:32  /snap/freecad-realthunder/70/usr/lib/python3.8/zipfile.py:1517: UserWarning: Duplicate name: 'cad/Steel L-Bracket for NEMA 17.FCStd'
  return self._open_to_write(zinfo, force_zip64=force_zip64)
13:22:32  ASM4> [ZIP] Adding file: cad/FDM/NEMA17_support.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/Coupling/Beam-coupling-8mm-5mm.FCStd
13:22:32  /snap/freecad-realthunder/70/usr/lib/python3.8/zipfile.py:1517: UserWarning: Duplicate name: 'cad/FreeCAD-library/Coupling/Beam-coupling-8mm-5mm.FCStd'
  return self._open_to_write(zinfo, force_zip64=force_zip64)
13:22:32  ASM4> [ZIP] Adding file: sub-assemblies/3D-printed_corner.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FDM/Big_Corner/Big_Corner.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/Slot_T_nuts/Slot_T_nuts.FCStd
13:22:32  ASM4> [ZIP] Adding file: sub-assemblies/Bed_full.FCStd
13:22:32  ASM4> [ZIP] Adding file: sub-assemblies/Bed_top.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/Plate_03.FCStd
13:22:32  ASM4> [ZIP] Adding file: sub-assemblies/Bed_bottom.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/SK08/SK08.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/KP08/KP08.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/8mmx500_rod.FCStd
13:22:32  /snap/freecad-realthunder/70/usr/lib/python3.8/zipfile.py:1517: UserWarning: Duplicate name: 'cad/8mmx500_rod.FCStd'
  return self._open_to_write(zinfo, force_zip64=force_zip64)
13:22:32  ASM4> [ZIP] Adding file: cad/FreeCAD-library/T8_leadscrew/T8_leadscrew_500mm.FCStd
13:22:32  /snap/freecad-realthunder/70/usr/lib/python3.8/zipfile.py:1517: UserWarning: Duplicate name: 'cad/FreeCAD-library/T8_leadscrew/T8_leadscrew_500mm.FCStd'
  return self._open_to_write(zinfo, force_zip64=force_zip64)
13:22:32  ASM4> [ZIP] Adding file: sub-assemblies/SW_Y.FCStd
13:22:32  ASM4> [ZIP] Adding file: cad/FDM/LSW_support_Y.FCStd

[hasecilu]

Did you do/try this?

sudo -H pip install anytree

I have just tried this and did not work in both snap and AppImage

[leoheck]

hm, I thought those "UserWarning: Duplicate name:" were just a warning, this may not be the case. They have to be added to preserve the hierarchy when unpacking the zip. I could rename all items before inserting in the package, and then I did not have errors, but this is not the fix since they won't be renamed back to the original when unpacking the zip. I am investigating this thing.

[hasecilu]

They still manage to be packed in the zip files, even with the unzip command I get messages asking me to replace the same files.

[leoheck]

try to extract it and load the main assembly, please.

[hasecilu]

For some reason in the list the googley eyes, Spacer 6.35 and V slot profile 370 mm are not detected and the files are not saved in the zip.

The assembly in the zip file is almost complete but due to above error there are errors about file not found

[leoheck]

It seems there is no duplicated files, only in the zip

Examining this case here:

17:54:17  ASM4> [ZIP] Adding file: cad/Steel L-Bracket for NEMA 17.FCStd
17:54:17  /tmp/.mount_FreeCARwPJVr/usr/lib/python3.10/zipfile.py:1517: UserWarning: Duplicate name: 'cad/Steel L-Bracket for NEMA 17.FCStd'

Then we see that there is only one file with this name:

➜  diy-pcb-cnc git:(testing) ✗ find -name "*Steel L-Bracket for NEMA 17.FCStd*"
./cad/Steel L-Bracket for NEMA 17.FCStd

This is the whole list of files.

17:58:01  ASM4> Listing uniq linked files
17:58:01    1 - ASSembly.FCStd
17:58:01    2 - cad/8mmx300_rod.FCStd
17:58:01    3 - cad/8mmx500_rod.FCStd
17:58:01    4 - cad/Board4electronics.FCStd
17:58:01    5 - cad/CNC_mount/CNC_mount_V2.FCStd
17:58:01    6 - cad/Drill_bit.FCStd
17:58:01    7 - cad/FDM/Big_Corner/Big_Corner.FCStd
17:58:01    8 - cad/FDM/Emergency_button_case.FCStd
17:58:01    9 - cad/FDM/LSW_support_Y.FCStd
17:58:01   10 - cad/FDM/LSW_support_Z.FCStd
17:58:01   11 - cad/FDM/Light.FCStd
17:58:01   12 - cad/FDM/NEMA17_support.FCStd
17:58:01   13 - cad/FreeCAD-library/2020_V-slot_Al_extrusion/2020x450_V_slot_profile.FCStd
17:58:01   14 - cad/FreeCAD-library/2020_V-slot_Al_extrusion/2020x490_V_slot_profile.FCStd
17:58:01   15 - cad/FreeCAD-library/Corner/2020_corner_bracket.FCStd
17:58:01   16 - cad/FreeCAD-library/Coupling/Beam-coupling-8mm-5mm.FCStd
17:58:01   17 - cad/FreeCAD-library/Electrical Switches/EmergencyButton_LAY37.fcstd
17:58:01   18 - cad/FreeCAD-library/KFL08/KFL08.FCStd
17:58:01   19 - cad/FreeCAD-library/KP08/KP08.FCStd
17:58:01   20 - cad/FreeCAD-library/NEMA/NEMA_17_with_connector.FCStd
17:58:01   21 - cad/FreeCAD-library/SC8UU/SC8UU.FCStd
17:58:01   22 - cad/FreeCAD-library/SHF08/SHF08.FCStd
17:58:01   23 - cad/FreeCAD-library/SK08/SK08.FCStd
17:58:01   24 - cad/FreeCAD-library/Slot_T_nuts/Slot_T_nuts.FCStd
17:58:01   25 - cad/FreeCAD-library/T8_housing_bracket/T8_housing_bracket.FCStd
17:58:01   26 - cad/FreeCAD-library/T8_leadscrew/T8_leadscrew_350mm.FCStd
17:58:01   27 - cad/FreeCAD-library/T8_leadscrew/T8_leadscrew_500mm.FCStd
17:58:01   28 - cad/FreeCAD-library/T8_screw_nut/Anti_backlash_nut/T8_antibacklash_nut_simplified.FCStd
17:58:01   29 - cad/Mototool.FCStd
17:58:01   30 - cad/Plate_03.FCStd
17:58:01   31 - cad/Plate_04.FCStd
17:58:01   32 - cad/Plate_05.FCStd
17:58:01   33 - cad/Side_wood.FCStd
17:58:01   34 - cad/Spacer_20.FCStd
17:58:01   35 - cad/Steel L-Bracket for NEMA 17.FCStd <============ THIS ONE
17:58:01   36 - cad/Timing_belt_GT2.FCStd
17:58:01   37 - cad/Timing_pulley_GT2_20.FCStd
17:58:01   38 - cad/Timing_pulley_GT2_60.FCStd
17:58:01   39 - cad/step/Arduino_CNC_shield.FCStd
17:58:01   40 - cad/step/Fuente_12V_10A.FCStd
17:58:01   41 - cad/step/Green_indicator.FCStd
17:58:01   42 - cad/step/Limit_SW_PCB.FCStd
17:58:01   43 - sub-assemblies/3D-printed_corner.FCStd
17:58:01   44 - sub-assemblies/Base.FCStd
17:58:01   45 - sub-assemblies/Bed_bottom.FCStd
17:58:01   46 - sub-assemblies/Bed_full.FCStd
17:58:01   47 - sub-assemblies/Bed_top.FCStd
17:58:01   48 - sub-assemblies/Corner.FCStd
17:58:01   49 - sub-assemblies/Electronics.FCStd
17:58:01   50 - sub-assemblies/Emergency.FCStd
17:58:01   51 - sub-assemblies/Green.FCStd
17:58:01   52 - sub-assemblies/SW_X.FCStd
17:58:01   53 - sub-assemblies/SW_Y.FCStd
17:58:01   54 - sub-assemblies/SW_Z.FCStd
17:58:01   55 - sub-assemblies/Vertical_frame_XZ.FCStd
17:58:01   56 - sub-assemblies/XZ.FCStd
17:58:01   57 - sub-assemblies/Z_axis.FCStd

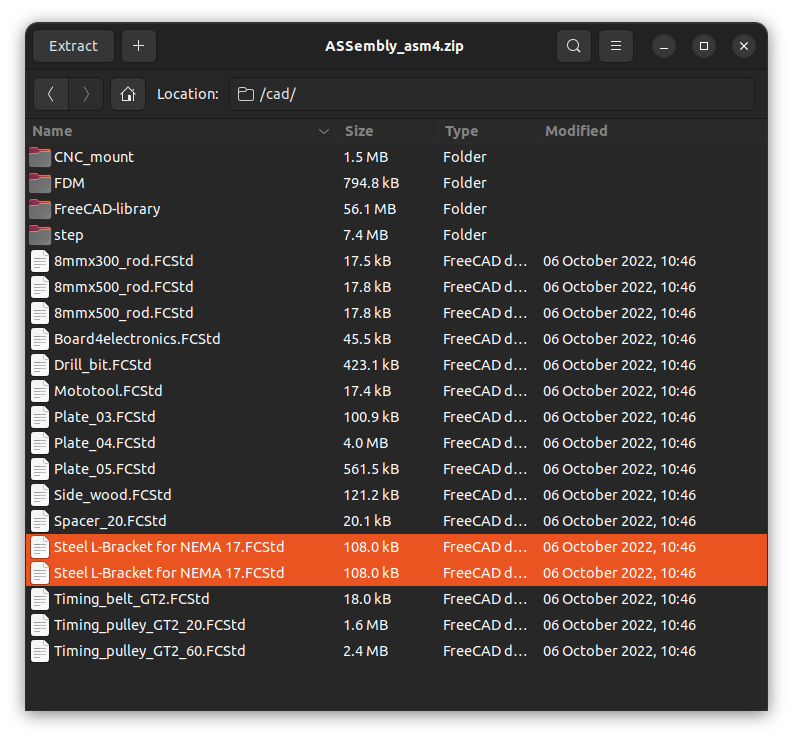

However, the zip, as you showed, shows it twice

[leoheck]

Ah, the list of files I was using did not have unique files. It is fixed now. Zip is being created. But there are some issues when opening the main assembly file.

[leoheck]

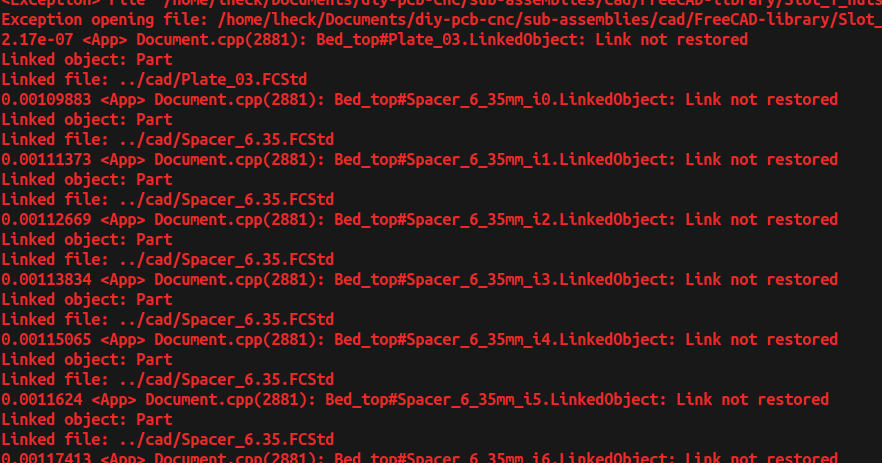

These files are not being restored

Linked file: ../cad/Spacer_6.35.FCStd
Linked file: ../cad/FreeCAD-library/2020_V-slot_Al_extrusion/2020x370_V_slot_profile.FCStd
Linked file: ../cad/Googly_eyes.FCStd

But they exist

➜  diy-pcb-cnc git:(testing) ✗ find -name Googly_eyes.FCStd
./cad/Googly_eyes.FCStd

➜  diy-pcb-cnc git:(testing) ✗ find -name 2020x370_V_slot_profile.FCStd
./cad/FreeCAD-library/2020_V-slot_Al_extrusion/2020x370_V_slot_profile.FCStd

➜  diy-pcb-cnc git:(testing) ✗ find -name Spacer_6.35.FCStd
./cad/Spacer_6.35.FCStd

Maybe my parser is not finding them.

[leoheck]

Yeah, they are not in the above list with 57 items.

[leoheck]

Bed_full has spacers And these are links from links. I was not expecting nested links yet.

[hasecilu]

The Import Part from A4 imports the external files as Links and Links have the Element Count property so I changed it and that generates all those sub-links

[leoheck]

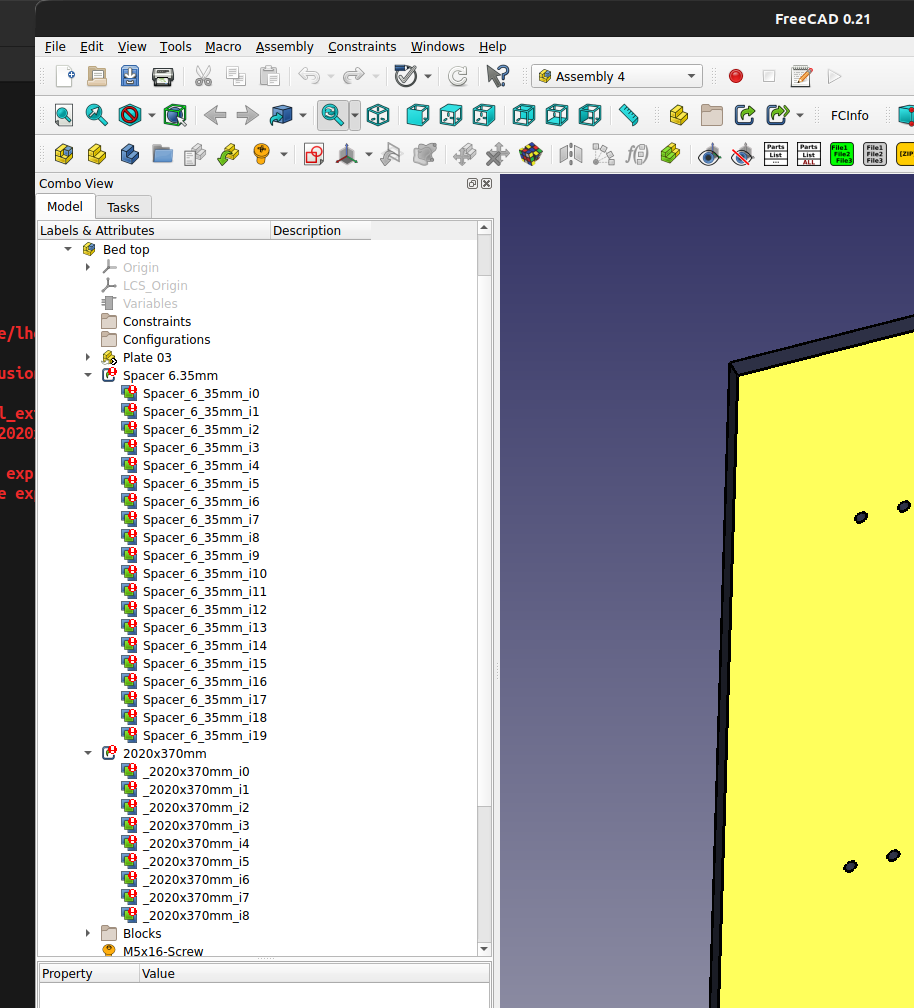

I found your Bed_top has issues. What is the most updated code you have? Is it on master or is it still in the testing branch?

[hasecilu]

These files are not being restored

Linked file: ../cad/Spacer_6.35.FCStd
Linked file: ../cad/FreeCAD-library/2020_V-slot_Al_extrusion/2020x370_V_slot_profile.FCStd
Linked file: ../cad/Googly_eyes.FCStd

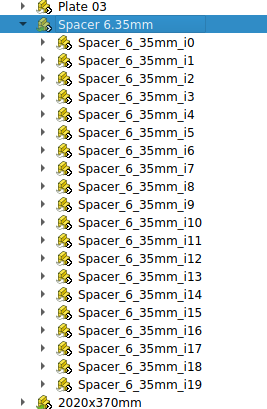

Those files had the Element Count property used.

[leoheck]

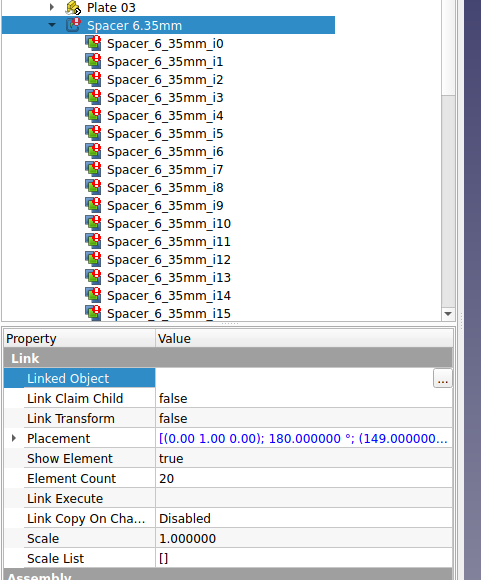

but look what my FC says

[leoheck]

There is no linked object

[leoheck]

ah, the file is missing, please, check if it was added to the repo.

[hasecilu]

It is in the repo but it's not in the zip file

[leoheck]

yeah, I was looking the wrong file, sorry

[leoheck]

@hasecilu took some time but now it exports all files of the main assembly. Now, considering your repo, if you try to export a sub-assembly. It does not work yet. Some paths need to be manipulated since the current flow only handles nested files/folders and not files and folders that are not inside of the same folder...

An example of that would be Bed_top.FCStd where most of the files come from outside ../cad

[hasecilu]

Cool, it's working!

An example of that would be Bed_top.FCStd where most of the files come from outside ../cad

I'm not sure if there are file location guidelines for (sub) assemblies, moving cad inside of sub-assemblies could be a workaround but don´t know if there is a way to move linked files without breaking the links in assemblies.

[leoheck]

I was thinking that I could export the parent folder that has both assembly and its parts.

So if the assembly and related files are like this:

• myass.FCSd
• ../partslib/part1.FCstd

Then it would normalize paths, considering the folder that has both (all) the parts. It may work even if the paths are not related, I guess.

Also, some things to do

• Improve toolbar images
• Add a dialog so the user can choose the zip name and path while exporting
• Allow this to work with any kind of assembly (assemblies that do not have parts nested).

[leoheck]

Hey, @hasecilu now it exports assemblies with files in other folders. So it works with the Bed_top.FCSd the way I was thinking before. And the elegant thing would be to add a symlink to the exported assembly inside the root folder when the main assembly is not in the root folder. I will implement this tomorrow.

[hasecilu]

Tested and working!

And the elegant thing would be to add a symlink to the exported assembly inside the root folder when the main assembly is not in the root folder. I will implement this tomorrow.

Sounds nice, could be useful when a assembly is made of many subassemblies and you need to find the main one.

[leoheck]

I got it working, but it happens that FreeCad can not handle symlinks since the internal links won't be adjusted if a symlink is being used. It could be a bug on Freecad or just something that was not thought of yet.

Then since symlink is in another place, the linked files cannot be found anymore.

Freecad could identify a symlink is being used to load the file from the original place, instead.
