[Bug]: Multiple drawing change the behavior of the start cell.

[deshiloh]

trafficstars

Is the bug applicable and reproducable to the latest version of the package and hasn't it been reported before?

• [X] Yes, it's still reproducable

What version of Laravel Excel are you using?

3.1.40

What version of Laravel are you using?

9.22.1

What version of PHP are you using?

8.1.0

Describe your issue

Having at least 2 drawings increase the start cell.

How can the issue be reproduced?

Here my export file :

<?php

namespace App\Exports;

use App\Enum\AdresseEntrepriseTypeEnum;
use App\Models\Entreprise;
use App\Models\Reservation;
use Carbon\Carbon;
use Maatwebsite\Excel\Concerns\FromCollection;
use Maatwebsite\Excel\Concerns\ShouldAutoSize;
use Maatwebsite\Excel\Concerns\WithColumnFormatting;
use Maatwebsite\Excel\Concerns\WithCustomStartCell;
use Maatwebsite\Excel\Concerns\WithDefaultStyles;
use Maatwebsite\Excel\Concerns\WithDrawings;
use Maatwebsite\Excel\Concerns\WithEvents;
use Maatwebsite\Excel\Concerns\WithHeadings;
use Maatwebsite\Excel\Concerns\WithMapping;
use Maatwebsite\Excel\Concerns\WithStyles;
use Maatwebsite\Excel\Events\AfterSheet;
use PhpOffice\PhpSpreadsheet\Style\Alignment;
use PhpOffice\PhpSpreadsheet\Style\Border;
use PhpOffice\PhpSpreadsheet\Style\Fill;
use PhpOffice\PhpSpreadsheet\Style\NumberFormat;
use PhpOffice\PhpSpreadsheet\Style\Style;
use PhpOffice\PhpSpreadsheet\Worksheet\Drawing;
use PhpOffice\PhpSpreadsheet\Worksheet\PageSetup;
use PhpOffice\PhpSpreadsheet\Worksheet\Worksheet;
use PhpOffice\PhpSpreadsheet\Style\Color;

class ReservationsExport implements WithStyles, ShouldAutoSize, WithDefaultStyles, WithCustomStartCell, WithHeadings, WithEvents, FromCollection, WithDrawings, WithMapping, WithColumnFormatting
{
    private \Illuminate\Database\Eloquent\Collection $reservations;
    private string $entrepriseName;

    private int $indexDepart = 23;
    private string $lastColumn;
    private string $priceColumn;
    private string $coordinatePrices;
    private string $htTextCoordinate;
    private string $htValueCoordinate;
    private string $tvaTextCoordinate;
    private string $tvaValueCoordinate;
    private string $ttcTextCoordinate;
    private string $ttcValueCoordinate;
    private int $year;
    private int $month;
    private Entreprise $entreprise;
    private $datePeriod;

    public function __construct(int $year, int $month, Entreprise $entreprise)
    {
        $htTextColumn = 'H';
        $tvaTextColumn = 'H';
        $ttcTextColumn = 'H';

        $this->entrepriseName = $entreprise->nom;
        $this->reservations = $this->getReservations();

        $this->priceColumn = 'I';
        $this->lastColumn = 'I';

        if (in_array($this->entrepriseName, config('motobleu.export.entreprisesCode'))) {
            $this->priceColumn = 'J';
            $this->lastColumn = 'J';

            $htTextColumn = 'I';
            $tvaTextColumn = 'I';
            $ttcTextColumn = 'I';
        }

        if (in_array($this->entrepriseName, config('motobleu.export.entreprisesFacturation'))) {
            $this->lastColumn = 'K';
        }

        $this->coordinatePrices = sprintf(
            '%s%s:%s%s',
            $this->priceColumn,
            $this->indexDepart + 1,
            $this->priceColumn,
            $this->getReservations()->count() - 1
        );

        $this->generateHtCoordinates($htTextColumn);
        $this->generateTvaCoordinates($tvaTextColumn);
        $this->generateTtcCoordinates($ttcTextColumn);

        $this->year = $year;
        $this->month = $month;
        $this->entreprise = $entreprise;

        $this->datePeriod = Carbon::create($year, $month, '1');
    }

    public function collection()
    {
        return $this->reservations;
    }

    public function defaultStyles(Style $defaultStyle)
    {
        return [
            'alignment' => [
                'horizontal' => Alignment::HORIZONTAL_CENTER,
                'vertical' => Alignment::VERTICAL_CENTER,
            ],
        ];
    }

    public function styles(Worksheet $sheet)
    {
        $styles = [];

        $styles[$this->indexDepart] = [
            'fill' => [
                'fillType' => Fill::FILL_SOLID,
                'startColor' => ['argb' => config('motobleu.export.backgroundColor')],
            ],
            'font' => [
                'color' => ['argb' => Color::COLOR_WHITE]
            ],
            'alignment' => [
                'horizontal' => Alignment::HORIZONTAL_CENTER,
                'vertical' => Alignment::VERTICAL_CENTER,
            ],
            'borders' => [
                'allBorders' => [
                    'borderStyle' => Border::BORDER_THIN,
                    'color' => ['argb' => Color::COLOR_BLACK]
                ]
            ]
        ];

        for ($i = 1; $i <= 7; $i++) {
            $index = sprintf('A%s:%s%s',
                $i,
                $this->lastColumn,
                $i
            );
            $styles[$index] = [
                'fill' => [
                    'fillType' => Fill::FILL_SOLID,
                    'startColor' => ['argb' => config('motobleu.export.backgroundColor')],
                ],
            ];
        }

        for ($i = $this->indexDepart; $i <= $this->reservations->count() + $this->indexDepart; $i++) {
            if ($i % 2 == 0) {
                $styles[$i] = [
                    'fill' => [
                        'fillType' => Fill::FILL_SOLID,
                        'startColor' => ['argb' => 'FFE0E0E0'],
                    ],
                    'borders' => [
                        'allBorders' => [
                            'borderStyle' => Border::BORDER_THIN,
                            'color' => ['argb' => Color::COLOR_BLACK]
                        ]
                    ]
                ];
            }
        }
        return $styles;
    }

    public function startCell(): string
    {
        return 'A' . $this->indexDepart;
    }

    private function getReservations()
    {
        return Reservation::all();
    }

    public function headings(): array
    {
        $headers = [
            'Course N°',
            'Secrétaire',
            'Date',
            'Client',
            'Heure',
            'Départ',
            'Arrivée',
            'Commentaires',
            'Prix TTC (en €)',
        ];

        if (in_array($this->entrepriseName, config('motobleu.export.entreprisesCode'))) {
            array_splice($headers, 1, 0, [
                'Code'
            ]);
        }

        if (in_array($this->entrepriseName, config('motobleu.export.entreprisesFacturation'))) {
            array_push($headers, 'Facturation', 'COST CENTER');
        }

        return $headers;
    }

    public function registerEvents(): array
    {
        return [
            AfterSheet::class => function (AfterSheet $sheet) {
                // Settings
                $sheet->getDelegate()->getPageSetup()->setOrientation(PageSetup::ORIENTATION_LANDSCAPE);
                $sheet->getSheet()->getProtection()->setSheet(true);
                $sheet->getDelegate()->getRowDimension(20)->setRowHeight(30);

                // Header
                $sheet->getSheet()->getCell($this->lastColumn . 9)->setValue(sprintf(
                    'Levallois, le %s',
                    Carbon::now()->format('d/m/Y')
                ))->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $sheet->getSheet()->getCell($this->lastColumn . 10)->setValue(
                    $this->entreprise->nom
                )->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $sheet->getSheet()->getCell($this->lastColumn . 11)->setValue(
                    $this->entreprise->getAdresse(AdresseEntrepriseTypeEnum::PHYSIQUE)->adresse_full
                )->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $sheet->getSheet()->getCell('A14')->setValue(
                    'Période :'
                )->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $sheet->getSheet()->getCell('B14')->setValue(
                    $this->datePeriod->monthName . ' ' . $this->datePeriod->year
                )->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $sheet->getSheet()->getCell('A15')->setValue(
                    'Compte client :'
                )->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $sheet->getSheet()->getCell('B15')->setValue(
                    $this->entreprise->nom
                )->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $sheet->getSheet()->getCell('A16')->setValue(
                    'Contact facturation:'
                )->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $sheet->getSheet()->getCell('B16')->setValue(
                    $this->entreprise->getAdresse(AdresseEntrepriseTypeEnum::FACTURATION)->email
                )->getStyle()->getAlignment()->setHorizontal(Alignment::HORIZONTAL_LEFT);

                $title = $sheet->getSheet()->getCell('G20')->setValue(
                    'RELEVE DE COURSES / PERIODE ' .$this->datePeriod->monthName . ' ' . $this->datePeriod->year
                );

                $title->getStyle()->getFont()->setBold(true);
                $title->getStyle()->getFont()->setSize(20);

                // Affichage du total
                $sheet->getSheet()->getCell($this->htTextCoordinate)->setValue(
                    'Montant HT (en €)'
                );
                $sheet->getSheet()->getCell($this->htValueCoordinate)->setValue(
                    sprintf(
                        '=%s/1.10',
                        $this->ttcValueCoordinate
                    )
                );
                $sheet->getSheet()->getCell($this->tvaTextCoordinate)->setValue(
                    'Montant de la TVA '
                );
                $sheet->getSheet()->getCell($this->tvaValueCoordinate)->setValue(
                    sprintf('=%s*0.10', $this->htValueCoordinate)
                );
                $sheet->getSheet()->getCell($this->ttcTextCoordinate)->setValue(
                    'Montant TTC (en €)'
                );
                $sheet->getSheet()->getCell($this->ttcValueCoordinate)->setValue(
                    sprintf(
                        '=SUM(%s)',
                        $this->coordinatePrices
                    )
                );

                // Footer
                $startFooter = $this->indexDepart + $this->reservations->count() + 7;
                $sheet->getSheet()->getCell('A' . $startFooter)->setValue(
                    'FOOTER'
                );
            }
        ];
    }

    public function drawings()
    {
        $drawing = new Drawing();
        $drawing->setName('Logo');
        $drawing->setDescription('Logo motobleu');
        $drawing->setPath(public_path('storage/Motobleu.png'));
        $drawing->setHeight(90);
        $drawing->setOffsetX(20);
        $drawing->setCoordinates('A2');

        $footer = new Drawing();
        $footer->setName('Footer');
        $footer->setDescription('Footer motobleu');
        $footer->setPath(public_path('storage/xls_footer.png'));
        $footer->setHeight(90);
        $footer->setOffsetX(20);
        $footer->setCoordinates('A30');

        return [$drawing, $footer];
    }

    /**
     * @param Reservation $row
     * @return array
     */
    public function map($row): array
    {
        $datas = [
            $row->reference,
            $row->passager->user->full_name,
            $row->pickup_date->format('d/m/Y'),
            $row->passager->nom,
            $row->pickup_date->format('H:s'),
            $row->display_from,
            $row->display_to,
            $row->comment,
            $row->tarif,
        ];

        if (in_array($this->entrepriseName, config('motobleu.export.entreprisesCode'))) {
            array_splice($datas, 1, 0, [
                'CODE'
            ]);
        }

        if (in_array($this->entrepriseName, config('motobleu.export.entreprisesFacturation'))) {
            array_push($datas, 'test', 'trest');
        }

        return $datas;
    }

    public function columnFormats(): array
    {
        return [
            $this->coordinatePrices => NumberFormat::FORMAT_CURRENCY_EUR_SIMPLE
        ];
    }

    /**
     * @param $textColumn
     * @return void
     */
    private function generateHtCoordinates($textColumn): void
    {
        $position = $this->indexDepart + $this->getReservations()->count() + 2;

        $this->htTextCoordinate = sprintf(
            '%s%s',
            $textColumn,
            $position,
        );

        $this->htValueCoordinate = sprintf(
            '%s%s',
            $this->priceColumn,
            $position,
        );
    }

    /**
     * @param $textColumn
     * @return void
     */
    private function generateTvaCoordinates($textColumn): void
    {
        $position = $this->indexDepart + $this->getReservations()->count() + 3;

        $this->tvaTextCoordinate = sprintf(
            '%s%s',
            $textColumn,
            $position,
        );

        $this->tvaValueCoordinate = sprintf(
            '%s%s',
            $this->priceColumn,
            $position,
        );
    }

    /**
     * @param $textColumn
     * @return void
     */
    private function generateTtcCoordinates($textColumn): void
    {
        $position = $this->indexDepart + $this->getReservations()->count() + 4;

        $this->ttcTextCoordinate = sprintf(
            '%s%s',
            $textColumn,
            $position,
        );

        $this->ttcValueCoordinate = sprintf(
            '%s%s',
            $this->priceColumn,
            $position,
        );
    }
}

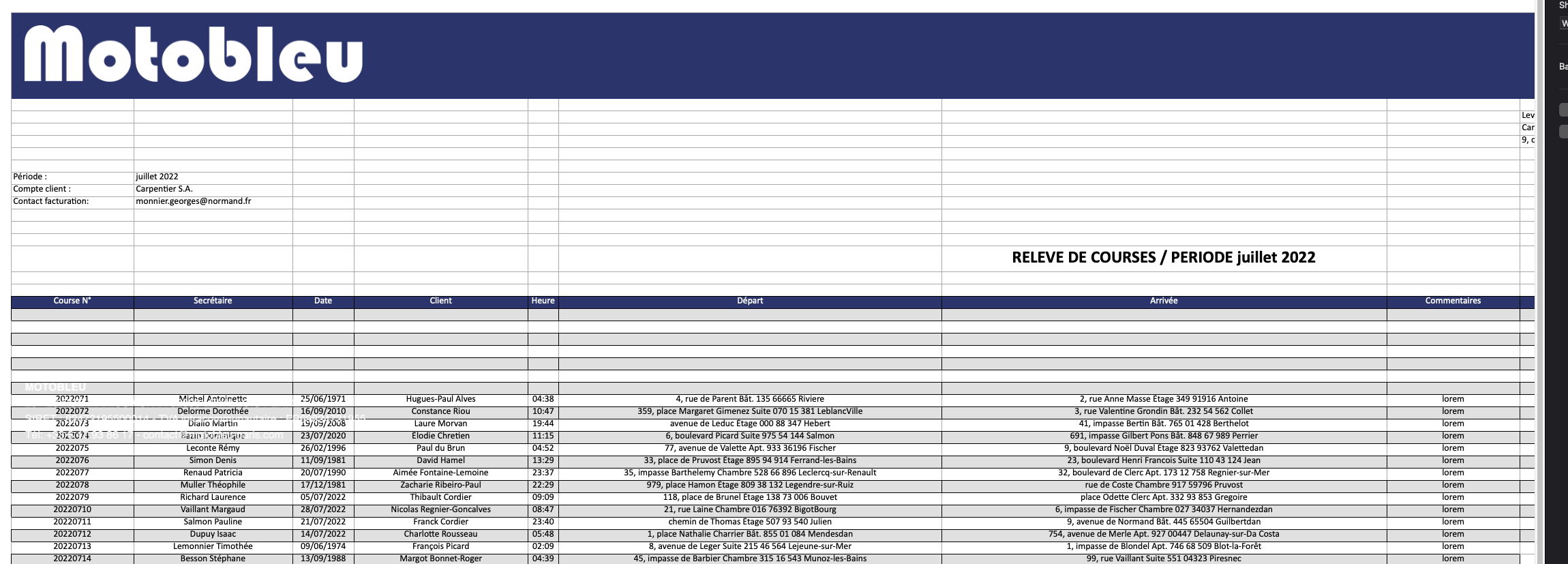

The result : (it's faker datas)

What should be the expected behaviour?

The 2nd drawing should start on the right cell, but without disturbing all the data collection.

[patrickbrouwers]

Please to to provide a much more easy to reproduce example by stripping out all irrelevant code.

[deshiloh]

<?php

namespace App\Exports;

use App\Models\Reservation;
use Maatwebsite\Excel\Concerns\FromCollection;
use Maatwebsite\Excel\Concerns\ShouldAutoSize;
use Maatwebsite\Excel\Concerns\WithCustomStartCell;
use Maatwebsite\Excel\Concerns\WithDefaultStyles;
use Maatwebsite\Excel\Concerns\WithDrawings;
use Maatwebsite\Excel\Concerns\WithEvents;
use Maatwebsite\Excel\Concerns\WithHeadings;
use Maatwebsite\Excel\Concerns\WithMapping;
use Maatwebsite\Excel\Concerns\WithStyles;
use Maatwebsite\Excel\Events\AfterSheet;
use PhpOffice\PhpSpreadsheet\Style\Alignment;
use PhpOffice\PhpSpreadsheet\Style\Style;
use PhpOffice\PhpSpreadsheet\Worksheet\Drawing;
use PhpOffice\PhpSpreadsheet\Worksheet\Worksheet;

class ReservationsExport implements WithStyles, ShouldAutoSize, WithDefaultStyles, WithCustomStartCell, WithHeadings, WithEvents, FromCollection, WithDrawings, WithMapping
{
    public function collection()
    {
        return Reservation::all();
    }

    public function defaultStyles(Style $defaultStyle)
    {
        return [
            'alignment' => [
                'horizontal' => Alignment::HORIZONTAL_CENTER,
                'vertical' => Alignment::VERTICAL_CENTER,
            ],
        ];
    }

    public function styles(Worksheet $sheet)
    {

    }

    public function startCell(): string
    {
        return 'A23';
    }

    public function headings(): array
    {
        $headers = [
            'Course N°',
            'Secrétaire',
            'Date',
            'Client',
            'Heure',
            'Départ',
            'Arrivée',
            'Commentaires',
            'Prix TTC (en €)',
        ];


        return $headers;
    }

    public function registerEvents(): array
    {
        return [
            AfterSheet::class => function (AfterSheet $sheet) {
                // Settings

            }
        ];
    }

    public function drawings()
    {
        $drawing = new Drawing();
        $drawing->setName('Logo');
        $drawing->setDescription('Logo motobleu');
        $drawing->setPath(public_path('storage/Motobleu.png'));
        $drawing->setHeight(90);
        $drawing->setOffsetX(20);
        $drawing->setCoordinates('A2');

        $footer = new Drawing();
        $footer->setName('Footer');
        $footer->setDescription('Footer motobleu');
        $footer->setPath(public_path('storage/xls_footer.png'));
        $footer->setHeight(90);
        $footer->setOffsetX(20);
        $footer->setCoordinates('A30');

        return [$drawing, $footer];
    }

    /**
     * @param Reservation $row
     * @return array
     */
    public function map($row): array
    {
        $datas = [
            $row->reference,
            $row->passager->user->nom,
            $row->pickup_date->format('d/m/Y'),
            $row->passager->nom,
            $row->pickup_date->format('H:s'),
            $row->display_from,
            $row->display_to,
            $row->comment,
            $row->tarif,
        ];

        return $datas;
    }
}

[patrickbrouwers]

@deshiloh I still can't easily reproduce this if you use a model that I don't have. Try to reproduce it with FromArray or something that I can just copy paste into my own application without having to create a model and migration.

[stale[bot]]

This bug report has been automatically closed because it has not had recent activity. If this is still an active bug, please comment to reopen. Thank you for your contributions.

[deshiloh]

<?php

namespace App\Exports;

use App\Models\Reservation;
use Maatwebsite\Excel\Concerns\FromArray;
use Maatwebsite\Excel\Concerns\FromCollection;
use Maatwebsite\Excel\Concerns\ShouldAutoSize;
use Maatwebsite\Excel\Concerns\WithCustomStartCell;
use Maatwebsite\Excel\Concerns\WithDefaultStyles;
use Maatwebsite\Excel\Concerns\WithDrawings;
use Maatwebsite\Excel\Concerns\WithEvents;
use Maatwebsite\Excel\Concerns\WithHeadings;
use Maatwebsite\Excel\Concerns\WithMapping;
use Maatwebsite\Excel\Concerns\WithStyles;
use Maatwebsite\Excel\Events\AfterSheet;
use PhpOffice\PhpSpreadsheet\Style\Alignment;
use PhpOffice\PhpSpreadsheet\Style\Style;
use PhpOffice\PhpSpreadsheet\Worksheet\Drawing;
use PhpOffice\PhpSpreadsheet\Worksheet\Worksheet;

class ReservationsExport implements WithStyles, ShouldAutoSize, WithDefaultStyles, WithCustomStartCell, WithHeadings, WithEvents, FromArray, WithDrawings
{
    public function defaultStyles(Style $defaultStyle)
    {
        return [
            'alignment' => [
                'horizontal' => Alignment::HORIZONTAL_CENTER,
                'vertical' => Alignment::VERTICAL_CENTER,
            ],
        ];
    }

    public function styles(Worksheet $sheet)
    {

    }

    public function startCell(): string
    {
        return 'A23';
    }

    public function headings(): array
    {
        $headers = [
            'Course N°',
            'Secrétaire',
            'Date',
            'Client',
            'Heure',
            'Départ',
            'Arrivée',
            'Commentaires',
            'Prix TTC (en €)',
        ];


        return $headers;
    }

    public function registerEvents(): array
    {
        return [
            AfterSheet::class => function (AfterSheet $sheet) {
                // Settings

            }
        ];
    }

    public function drawings()
    {
        $drawing = new Drawing();
        $drawing->setName('Logo');
        $drawing->setDescription('Logo motobleu');
        $drawing->setPath(public_path('storage/Motobleu.png'));
        $drawing->setHeight(90);
        $drawing->setOffsetX(20);
        $drawing->setCoordinates('A2');

        $footer = new Drawing();
        $footer->setName('Footer');
        $footer->setDescription('Footer motobleu');
        $footer->setPath(public_path('storage/xls_footer.png'));
        $footer->setHeight(90);
        $footer->setOffsetX(20);
        $footer->setCoordinates('A30');

        return [$drawing, $footer];
    }

    public function array(): array
    {
        return [
            ['test', 'test', 'test'],
            ['test', 'test', 'test'],
            ['test', 'test', 'test'],
            ['test', 'test', 'test'],
            ['test', 'test', 'test'],
            ['test', 'test', 'test'],
            ['test', 'test', 'test'],
            ['test', 'test', 'test'],
            ['test', 'test', 'test'],
        ];
    }
}

I can't do easier to just copy and paste.

You will have to play with it by removing the $footer part in the drawing method and you will see that the startCell will change.

Use any image in the setPath, hope will something easy for you to be able to help me.
