运行PaddleNLP/applications/document_intelligence/doc_vqa/中的汽车说明书跨模态智能问答出现问题
请提出你的问题
我在运行OCR检测时（代码位置：PaddleNLP/applications/document_intelligence/doc_vqa/OCR_process/ocr_process.py）出现以下问题，请问是什么原因？
[2022-10-26 16:30:36,060] [ INFO] - Already cached /root/.paddlenlp/models/layoutxlm-base-uncased/sentencepiece.bpe.model
[2022-10-26 16:30:36,584] [ INFO] - tokenizer config file saved in /root/.paddlenlp/models/layoutxlm-base-uncased/tokenizer_config.json
[2022-10-26 16:30:36,584] [ INFO] - Special tokens file saved in /root/.paddlenlp/models/layoutxlm-base-uncased/special_tokens_map.json
[2022/10/26 16:30:36] ppocr DEBUG: Namespace(alpha=1.0, benchmark=False, beta=1.0, cls_batch_num=6, cls_image_shape='3, 48, 192', cls_model_dir='/root/.paddleocr/whl/cls/ch_ppocr_mobile_v2.0_cls_infer', cls_thresh=0.9, cpu_threads=10, crop_res_save_dir='./output', det=True, det_algorithm='DB', det_box_type='quad', det_db_box_thresh=0.6, det_db_score_mode='fast', det_db_thresh=0.3, det_db_unclip_ratio=1.5, det_east_cover_thresh=0.1, det_east_nms_thresh=0.2, det_east_score_thresh=0.8, det_limit_side_len=960, det_limit_type='max', det_model_dir='/root/.paddleocr/whl/det/ch/ch_PP-OCRv3_det_infer', det_pse_box_thresh=0.85, det_pse_min_area=16, det_pse_scale=1, det_pse_thresh=0, det_sast_nms_thresh=0.2, det_sast_score_thresh=0.5, draw_img_save_dir='./inference_results', drop_score=0.5, e2e_algorithm='PGNet', e2e_char_dict_path='./ppocr/utils/ic15_dict.txt', e2e_limit_side_len=768, e2e_limit_type='max', e2e_model_dir=None, e2e_pgnet_mode='fast', e2e_pgnet_score_thresh=0.5, e2e_pgnet_valid_set='totaltext', enable_mkldnn=False, fourier_degree=5, gpu_mem=500, help='==SUPPRESS==', image_dir=None, image_orientation=False, ir_optim=True, kie_algorithm='LayoutXLM', label_list=['0', '180'], lang='ch', layout=True, layout_dict_path=None, layout_model_dir=None, layout_nms_threshold=0.5, layout_score_threshold=0.5, max_batch_size=10, max_text_length=25, merge_no_span_structure=True, min_subgraph_size=15, mode='structure', ocr=True, ocr_order_method=None, ocr_version='PP-OCRv3', output='./output', page_num=0, precision='fp32', process_id=0, re_model_dir=None, rec=True, rec_algorithm='SVTR_LCNet', rec_batch_num=6, rec_char_dict_path='/home/anaconda3/envs/lc_detectron/lib/python3.7/site-packages/paddleocr/ppocr/utils/ppocr_keys_v1.txt', rec_image_inverse=True, rec_image_shape='3, 48, 320', rec_model_dir='/root/.paddleocr/whl/rec/ch/ch_PP-OCRv3_rec_infer', recovery=False, save_crop_res=False, save_log_path='./log_output/', scales=[8, 16, 32], ser_dict_path='../train_data/XFUND/class_list_xfun.txt', ser_model_dir=None, show_log=True, sr_batch_num=1, sr_image_shape='3, 32, 128', sr_model_dir=None, structure_version='PP-Structurev2', table=True, table_algorithm='TableAttn', table_char_dict_path=None, table_max_len=488, table_model_dir=None, total_process_num=1, type='ocr', use_angle_cls=True, use_dilation=False, use_gpu=True, use_mp=False, use_npu=False, use_onnx=False, use_pdf2docx_api=False, use_pdserving=False, use_space_char=True, use_tensorrt=False, use_visual_backbone=True, use_xpu=False, vis_font_path='./doc/fonts/simfang.ttf', warmup=False)
Traceback (most recent call last):
File "ocr_process.py", line 287, in
还是不行，出现如下错误：
Traceback (most recent call last):
File "ocr_process.py", line 287, in
File "tools/export_model.py", line 172, in <module>
main()
File "tools/export_model.py", line 165, in main
sub_model_save_path, logger)
File "tools/export_model.py", line 99, in export_single_model
paddle.jit.save(model, save_path)
File "<decorator-gen-101>", line 2, in save
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/wrapped_decorator.py", line 25, in __impl__
return wrapped_func(*args, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/base.py", line 51, in __impl__
return func(*args, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/jit.py", line 744, in save
inner_input_spec)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/dygraph_to_static/program_translator.py", line 517, in concrete_program_specify_input_spec
*desired_input_spec)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/dygraph_to_static/program_translator.py", line 427, in get_concrete_program
concrete_program, partial_program_layer = self._program_cache[cache_key]
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/dygraph_to_static/program_translator.py", line 723, in __getitem__
self._caches[item] = self._build_once(item)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/dygraph_to_static/program_translator.py", line 714, in _build_once
**cache_key.kwargs)
File "<decorator-gen-99>", line 2, in from_func_spec
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/wrapped_decorator.py", line 25, in __impl__
return wrapped_func(*args, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/base.py", line 51, in __impl__
return func(*args, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/dygraph_to_static/program_translator.py", line 662, in from_func_spec
outputs = static_func(*inputs)
File "/paddle/debug/PaddleOCR/ppocr/modeling/architectures/base_model.py", line 79, in forward
x = self.backbone(x)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/layers.py", line 917, in __call__
return self._dygraph_call_func(*inputs, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/layers.py", line 907, in _dygraph_call_func
outputs = self.forward(*inputs, **kwargs)
File "/paddle/debug/PaddleOCR/ppocr/modeling/backbones/det_mobilenet_v3.py", line 146, in forward
x = self.conv(x)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/layers.py", line 917, in __call__
return self._dygraph_call_func(*inputs, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/layers.py", line 907, in _dygraph_call_func
outputs = self.forward(*inputs, **kwargs)
File "/paddle/debug/PaddleOCR/ppocr/modeling/backbones/det_mobilenet_v3.py", line 179, in forward
x = self.conv(x)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/layers.py", line 917, in __call__
return self._dygraph_call_func(*inputs, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/dygraph/layers.py", line 907, in _dygraph_call_func
outputs = self.forward(*inputs, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/nn/layer/conv.py", line 677, in forward
use_cudnn=self._use_cudnn)
File "/usr/local/lib/python3.7/site-packages/paddle/nn/functional/conv.py", line 148, in _conv_nd
type=op_type, inputs=inputs, outputs=outputs, attrs=attrs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/layer_helper.py", line 43, in append_op
return self.main_program.current_block().append_op(*args, **kwargs)
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/framework.py", line 3184, in append_op
attrs=kwargs.get("attrs", None))
File "/usr/local/lib/python3.7/site-packages/paddle/fluid/framework.py", line 2224, in __init__
for frame in traceback.extract_stack():
ExternalError: CUDNN error(1), CUDNN_STATUS_NOT_INITIALIZED.
[Hint: 'CUDNN_STATUS_NOT_INITIALIZED'. The cuDNN library was not initialized properly. This error is usually returned when a call to cudnnCreate() fails or when cudnnCreate() has not been called prior to calling another cuDNN routine. In the former case, it is usually due to an error in the CUDA Runtime API called by cudnnCreate() or by an error in the hardware setup. ] (at /paddle/paddle/phi/backends/gpu/gpu_resources.cc:211)
[operator < conv2d_fusion > error]
建议查看一下系统的cuda版本，cudnn版本，cuda driver版本，当前主要是paddle环境没有安装正确，导致的报错。 可以查看一下对应的文档 https://www.paddlepaddle.org.cn/install/quick?docurl=/documentation/docs/zh/develop/install/pip/linux-pip.html
跑了下PaddleNLP/applications/document_intelligence/doc_vqa/下面的三个模块，发现OCR处理模块可以跑通输出结果。 但是Rerank模块的训练部分无法运行，请帮忙确认一下代码是否可正确运行？我这边一直跑不通
File "./src/train_ce.py", line 392, in <module>
main(args)
File "./src/train_ce.py", line 146, in main
ernie_config=ernie_config)
File "/users_2/d00477216/docvqa/Rerank/src/cross_encoder.py", line 112, in create_model
graph_vars = _model(is_noise=True)
File "/users_2/d00477216/docvqa/Rerank/src/cross_encoder.py", line 65, in _model
is_noise=is_noise)
File "/users_2/d00477216/docvqa/Rerank/src/model/ernie.py", line 105, in __init__
task_ids, input_mask)
File "/users_2/d00477216/docvqa/Rerank/src/model/ernie.py", line 181, in _build_model
name=model_name + 'encoder')
File "/users_2/d00477216/docvqa/Rerank/src/model/transformer_encoder.py", line 328, in encoder
name=name + '_layer_' + str(i))
File "/users_2/d00477216/docvqa/Rerank/src/model/transformer_encoder.py", line 267, in encoder_layer
name=name + '_multi_head_att')
File "/users_2/d00477216/docvqa/Rerank/src/model/transformer_encoder.py", line 141, in multi_head_attention
dropout_rate)
File "/users_2/d00477216/docvqa/Rerank/src/model/transformer_encoder.py", line 116, in scaled_dot_product_attention
weights = layers.softmax(product)
File "/home/anaconda3/envs/lc_detectron/lib/python3.7/site-packages/paddle/fluid/layers/nn.py", line 1416, in softmax
attrs=attrs)
File "/home/anaconda3/envs/lc_detectron/lib/python3.7/site-packages/paddle/fluid/layer_helper.py", line 44, in append_op
return self.main_program.current_block().append_op(*args, **kwargs)
File "/home/anaconda3/envs/lc_detectron/lib/python3.7/site-packages/paddle/fluid/framework.py", line 3621, in append_op
attrs=kwargs.get("attrs", None))
File "/home/anaconda3/envs/lc_detectron/lib/python3.7/site-packages/paddle/fluid/framework.py", line 2635, in __init__
for frame in traceback.extract_stack():
ExternalError: CUDNN error(1), CUDNN_STATUS_NOT_INITIALIZED.
[Hint: 'CUDNN_STATUS_NOT_INITIALIZED'. The cuDNN library was not initialized properly. This error is usually returned when a call to cudnnCreate() fails or when cudnnCreate() has not been called prior to calling another cuDNN routine. In the former case, it is usually due to an error in the CUDA Runtime API called by cudnnCreate() or by an error in the hardware setup. ] (at /paddle/paddle/phi/backends/gpu/gpu_resources.cc:211)
[operator < softmax > error]
terminate called without an active exception
上面表示环境还没有正确安装好，cudnn跟cuda可能配置没有匹配上，建议运行一下这个看一下。
import paddle
paddle.utils.run_check()

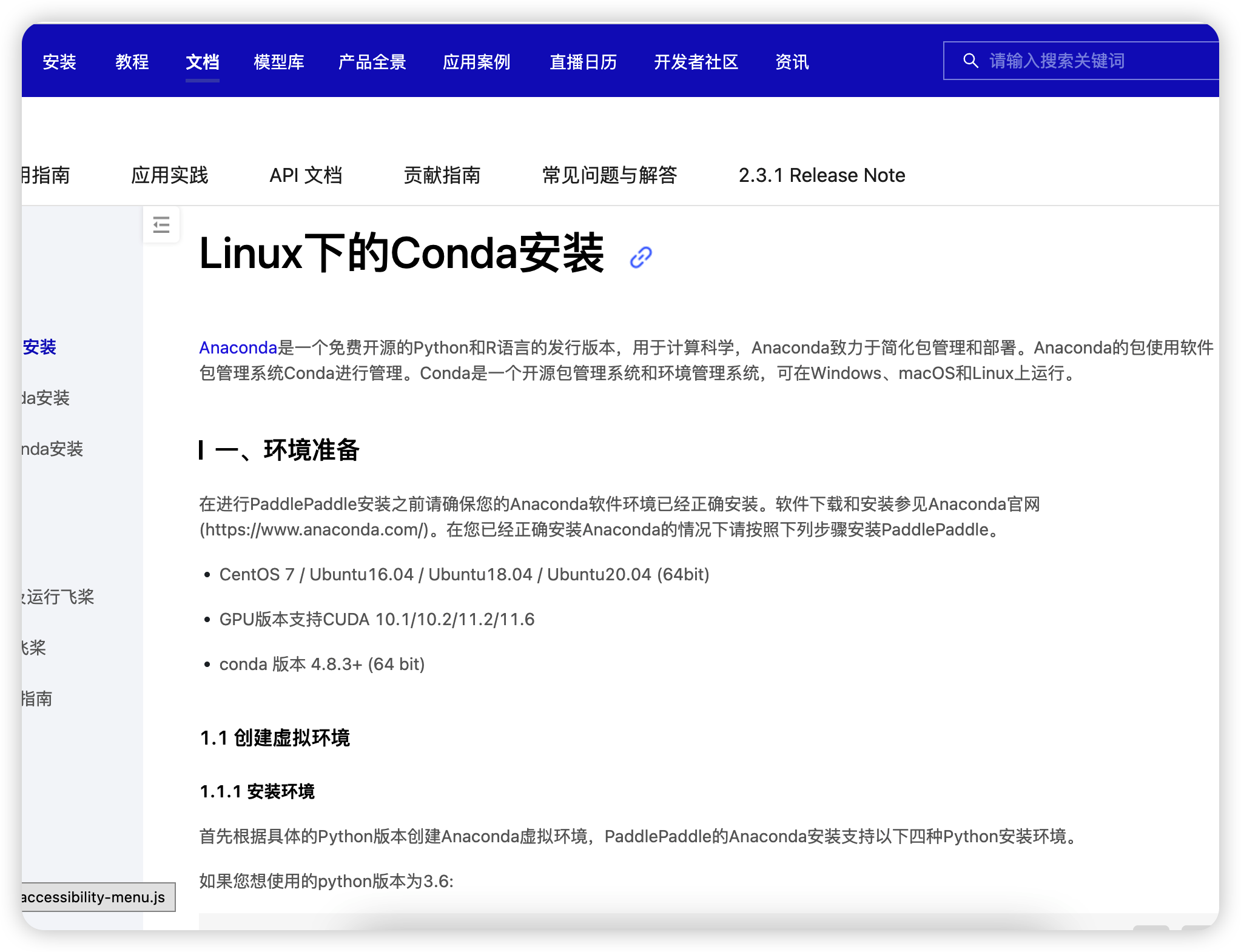

https://www.paddlepaddle.org.cn/documentation/docs/zh/install/conda/linux-conda.html#anchor-0
建议使用anaconda配置一下环境，
看这个安装确实成功了，但是使用的时候还是有报错，这就得确定是出什么问题了，建议先检查一下下面的命令能否运行。
import paddle
x_var = paddle.uniform((2, 4, 8, 8), dtype='float32', min=-1., max=1.)
conv = paddle.nn.Conv2D(4, 6, (3, 3))
y_var = conv(x_var)
print(y_var.shape)
# (2, 6, 6, 6)
