`self.play(Create(G))` connects edges to the centre of vertices unlike `self.add(G)` for Graphs

[drdebmath]

Description of bug / unexpected behavior

The edges connect to the center of vertices in self.play(Create(G))

Expected behavior

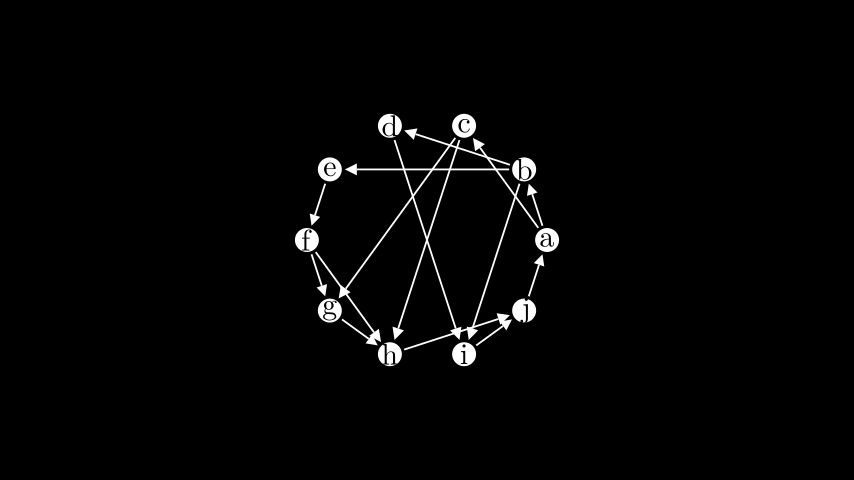

I would expect it to output a graph similar to what happens in self.add(G)

How to reproduce the issue

Code for reproducing the problem

from manim import *

class bugreport_expected(Scene):
    def construct(self):
        edges = [(1, 2), (1, 3), (2, 4), (2, 5), (2, 9), (3, 7), (3, 8), (4, 9), (9, 10), (5, 6), (6, 7), (6, 8), (7, 8), (8, 10), (10, 1)]
        vertices = list(range(1,11))
        vertex_config = {}
        for i in vertices:
            vertex_config[i] = {'radius': 0.2, 'color': WHITE}
        edge_config = {}
        for i in edges:
            edge_config[i] = {'stroke_width': 3, 'tip_length': 0.2, 'color': WHITE}
        labels = {}
        labels_text = "abcdefghij"
        for i in vertices:
            labels[i] = Tex(r''+labels_text[i-1], color=BLACK)
        G = Graph(vertices, edges, layout="circular", vertex_config=vertex_config, edge_config=edge_config, edge_type=Arrow, labels = labels)
        self.add(G)

class bugreport_actual(Scene):
    def construct(self):
        edges = [(1, 2), (1, 3), (2, 4), (2, 5), (2, 9), (3, 7), (3, 8), (4, 9), (9, 10), (5, 6), (6, 7), (6, 8), (7, 8), (8, 10), (10, 1)]
        vertices = list(range(1,11))
        vertex_config = {}
        for i in vertices:
            vertex_config[i] = {'radius': 0.2, 'color': WHITE}
        edge_config = {}
        for i in edges:
            edge_config[i] = {'stroke_width': 3, 'tip_length': 0.2, 'color': WHITE}
        labels = {}
        labels_text = "abcdefghij"
        for i in vertices:
            labels[i] = Tex(r''+labels_text[i-1], color=BLACK)
        G = Graph(vertices, edges, layout="circular", vertex_config=vertex_config, edge_config=edge_config, edge_type=Arrow, labels = labels)
        self.play(Create(G))

Additional media files

Images/GIFs

https://user-images.githubusercontent.com/5823408/174984342-1fbc91c4-5f1d-4f95-afa8-23dccc8f24f7.mp4

Logs

Terminal output

PASTE HERE OR PROVIDE LINK TO https://pastebin.com/ OR SIMILAR

System specifications

System Details

• OS (with version, e.g., Windows 10 v2004 or macOS 10.15 (Catalina)): Mac OS 12
• RAM: 8GB
• Python version (python/py/python3 --version): 3.10
• Installed modules (provide output from pip list):

PASTE HERE

LaTeX details

• LaTeX distribution (e.g. TeX Live 2020): TeX Live 2021
• Installed LaTeX packages:

FFMPEG

Output of ffmpeg -version:

PASTE HERE

Additional comments

[behackl]

This is a problem with how the graph is updated so that if vertices are moved, the endpoints of the edges move too -- if you do not care about moving vertices, you can run G.clear_updaters() before creating the graph, that should help.

[drdebmath]

Thank you @behackl for the solution, it works. But I don't understand where the vertices have moved during the construction of the graph.

[drdebmath]

Is it perhaps that the vertices are added at the center as usual when running Create(G) while add(G) directly adds it at the desired position, and thus resulting in a discrepancy in the endpoint location for the edges?

[behackl]

They did not move: the Graph has an updater function attached which ensures that the endpoints of the edges match the vertices. This function is not called when you render a static image, but when rendering a video, the function is called at the end of every rendered frame.

[drdebmath]

Thank you @noamzaks for the fix. I didn't expect it to be just a function call difference. But it seems like there are issues with the tests related to the 3D view of the vertices. Have you figured out any solution?

[noamzaks]

Hi. Sorry, not yet. I'll try again today. I tried to create the supposed npz result and compare the framed, but without success

[noamzaks]

Hey, small update; I found out some "workaround", but if you need this for something right now, you can try to use my WIP fix and make sure it looks good in your case

[drdebmath]

Thank you. But I have already finished my presentation with a static graph, so not in any immediate need. I will wait for the next release.
