scale bar display issues

Open demisjohn opened this issue 4 years ago • 1 comments

While zooming in/out, the scale bar disappears at certain zooms, then reappears at other zoom ranges:

https://user-images.githubusercontent.com/5370181/112157943-eeaacb00-8ba4-11eb-841e-25ab7dfd505d.mov

Version: KLayout 26.9, MacOS 10.14.6

demisjohn avatar Mar 23 '21 13:03 demisjohn

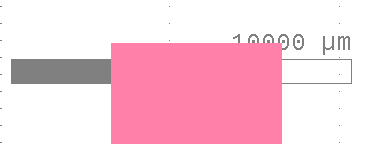

Also, scale bar is hidden by objects in the Layout, as if scale bar is on "back" display layer. Adding here rather than separate issue since perhaps they are related, or can be solved at the same time. scale bar bug - overlaid

Still in Version 0.26.12, MacOS 10.14

demisjohn avatar May 11 '21 21:05 demisjohn
