Fedora -X option does not exclude /run/user/0/doc with tmpfs excluded with check_command

[LinuxPersonEC]

Describe the bug

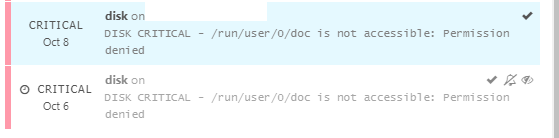

In trying to exclude /run/user/0/doc, the GUI shows DISK CRITICAL - /run/user/0/doc is not accessible: Permission denied even when tmpfs is being excluded.

To Reproduce

Provide a link to a live example, or an unambiguous set of steps to reproduce this bug. Include configuration, logs, etc. to reproduce, if relevant. Here is my config in hosts.conf:

  vars.disks["disk /"] = {
    disk_partitions = "/"
    vars.disk_ignore_eregi_path = [ "/run" ]
    vars.disk_exclude_type = ["overlay","tmpfs","nsfs","sysfs","shm","debugfs","tracefs","nfs"]
    vars.disk_ignore_ereg_path = ["/run/0/doc"]
    vars.disk_partitions_excluded = ["/run","/run/0/doc", "/run/user/0/doc"]

  }
  vars.disk_exclude_type = [
          "tmpfs",
          "sysfs",
          "proc",
          "configfs",
          "devtmpfs",
          "devfs",
          "mtmfs",
          "tracefs",
          "cgroup",
          "fuse.gvfsd-fuse",
          "fuse.gvfs-fuse-daemon",
          "fdescfs",
          "overlay",
          "nsfs",
          "squashfs"
      ]
  check_command = "hostalive"

Expected behavior

/run/user/0/doc should not be displayed.

Screenshots

Your Environment

Include as many relevant details about the environment you experienced the problem in

• Version used (icinga2 --version):

icinga2 --version
icinga2 - The Icinga 2 network monitoring daemon (version: 2.13.1-1)

Copyright (c) 2012-2021 Icinga GmbH (https://icinga.com/)
License GPLv2+: GNU GPL version 2 or later <https://gnu.org/licenses/gpl2.html>
This is free software: you are free to change and redistribute it.
There is NO WARRANTY, to the extent permitted by law.

System information:
  Platform: Fedora
  Platform version: 34 (Server Edition)
  Kernel: Linux
  Kernel version: 5.13.19-200.fc34.x86_64
  Architecture: x86_64

Build information:
  Compiler: GNU 11.2.1
  Build host: unknown
  OpenSSL version: OpenSSL 1.1.1l  FIPS 24 Aug 2021

Application information:

General paths:
  Config directory: /etc/icinga2
  Data directory: /var/lib/icinga2
  Log directory: /var/log/icinga2
  Cache directory: /var/cache/icinga2
  Spool directory: /var/spool/icinga2
  Run directory: /run/icinga2

Old paths (deprecated):
  Installation root: /usr
  Sysconf directory: /etc
  Run directory (base): /run
  Local state directory: /var

Internal paths:

  Package data directory: /usr/share/icinga2
  State path: /var/lib/icinga2/icinga2.state
  Modified attributes path: /var/lib/icinga2/modified-attributes.conf
  Objects path: /var/cache/icinga2/icinga2.debug
  Vars path: /var/cache/icinga2/icinga2.vars
  PID path: /run/icinga2/icinga2.pid

• Operating System and version: Fedora 34
• Enabled features (icinga2 feature list): Enabled features: api checker command ido-mysql mainlog notification syslog
• Icinga Web 2 version and modules (System - About): 2.9.3
• Config validation (icinga2 daemon -C):

icinga2 daemon -C
[2021-10-12 12:16:44 -0400] information/cli: Icinga application loader (version: 2.13.1-1)
[2021-10-12 12:16:44 -0400] information/cli: Loading configuration file(s).
[2021-10-12 12:16:44 -0400] information/ConfigItem: Committing config item(s).
[2021-10-12 12:16:44 -0400] information/ApiListener: My API identity: mandelbrot.dsm.fordham.edu
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 IcingaApplication.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 2 HostGroups.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 5 Hosts.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 2 NotificationCommands.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 Downtime.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 SyslogLogger.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 5 Comments.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 FileLogger.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 CheckerComponent.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 ApiListener.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 IdoMysqlConnection.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 3 Zones.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 ExternalCommandListener.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 Endpoint.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 22 Notifications.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 ApiUser.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 244 CheckCommands.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 NotificationComponent.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 UserGroup.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 User.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 3 TimePeriods.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 3 ServiceGroups.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 1 ScheduledDowntime.
[2021-10-12 12:16:44 -0400] information/ConfigItem: Instantiated 27 Services.
[2021-10-12 12:16:44 -0400] information/ScriptGlobal: Dumping variables to file '/var/cache/icinga2/icinga2.vars'
[2021-10-12 12:16:44 -0400] information/cli: Finished validating the configuration file(s).

Additional context

I would think this is an issue with the Nagios plugin. Lower case, -x does work.

[Al2Klimov]

"Nagios plugin"? Are you using Nagios plugins or monitoring plugins?

[LinuxPersonEC]

"Nagios plugin"?

Well I'm basing it on Lee's comment on discourse.

Are you using Nagios plugins or monitoring plugins?

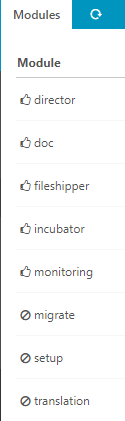

Apologies I'm still learning the nomenclature. Here are the modules we are using. So whatever comes with Fedora, and this is a new install.

icinga2 feature list
Disabled features: compatlog debuglog elasticsearch gelf graphite icingadb influxdb influxdb2 livestatus opentsdb perfdata statusdata
Enabled features: api checker command ido-mysql mainlog notification syslog

[dgoetz]

Fedora like EPEL is still using Nagios-Plugins. (The difference is the vendor and if you want to know more details about just google and you will find the history)

You can see the vendor by looking at the URL of the package:

rpm -qi nagios-plugins | grep ^URL
URL         : https://www.nagios-plugins.org/

[LinuxPersonEC]

rpm -qi nagios-plugins | grep ^URL

Confirmed:

rpm -qi nagios-plugins | grep ^URL
URL         : https://www.nagios-plugins.org/

[Al2Klimov]

TODO

• [ ] ITL: extra arg just for Nagios plugins

[LinuxPersonEC]

TODO

• [ ] ITL: extra arg just for Nagios plugins

Thanks Alex, do you know of a way I can manually use a config file now to achieve this?

[Al2Klimov]

You could update the shipped Icinga 2 command, but it should be overwritten on package update.

[LinuxPersonEC]

You could update the shipped Icinga 2 command

Can you provide a hint as to how? Also if the issue is with check_disk command how does upgrading the icinga2 command help?

[Al2Klimov]

Edit this one:

https://github.com/Icinga/icinga2/blob/a7a2f4bed0453c9a24173670438040fece9f2c13/itl/command-plugins.conf#L1337-L1490

[LinuxPersonEC]

Edit this one:

Thanks are you suggesting I hard code the system path in value = "$disk_partitions_excluded$"

[LinuxPersonEC]

Is there a way to include multiple -x options? I'm seeing several tmpfs directories that are not automatically being excluded. Other examples include one from X2Go, /tmp/.x2go-ouruser/spool/C-ouruser-50-1637675492_stDMATE_dp32 and /run/media/ouruser/SanDisk1

[Al2Klimov]

vars.disk_partitions_excluded = ["a", "b"]

[LinuxPersonEC]

vars.disk_partitions_excluded = ["a", "b"]

Is that done in the command line? How do I do this in the GUI?

[Al2Klimov]

GUI = Director?

[LinuxPersonEC]

GUI = Director?

Yes

[Al2Klimov]

I'm not familiar with the Director.

[andreasscherbaum]

I ran into the same problem, and added fuse to vars.disk_exclude_type. Not sure if this can and should be applied generally, but it solves the problem for me.

Oh, and I copied the original disk command, and created my own copy in Director, with the extended array. It was also necessary to create an extra data field disk_exclude_type with type Array.

[LinuxPersonEC]

I saw in another thread about the df -aT command:

gvfsd-fuse                                                          fuse.gvfsd-fuse          0          0          0    - /run/user/xxxx/gvfs
portal                                                              fuse.portal              0          0          0    - /run/user/xxxx/doc
[email protected]:/cygdrive/C/Users/myuser/X2GO~1/S-5B9B~1/spool     fuse.sshfs               0          0          0    - /tmp/.x2go-myuser/spool/C-myuser-51-1638210896_stDXFCE_dp32

So I added fuse.sshfs and fuse.portal to vars.disk_exclude_type (Services → Service Templates, which is the -X option) and all the errors went away. Hope this helps someone down the line but perhaps this should be documented somewhere?

[Al2Klimov]

TODO

• [ ] ITL: extra arg just for Nagios plugins

Forget this, both vendors support both -x and -X.

[yhabteab]

vars.disks["disk /"] = { disk_partitions = "/" vars.disk_ignore_eregi_path = [ "/run" ] vars.disk_exclude_type = ["overlay","tmpfs","nsfs","sysfs","shm","debugfs","tracefs","nfs"] vars.disk_ignore_ereg_path = ["/run/0/doc"] vars.disk_partitions_excluded = ["/run","/run/0/doc", "/run/user/0/doc"]

}

Hi, is this a copy-paste error? Otherwise this is not doing what you might be expecting. Unless it is a copy-paste error, then there is no way for the check command to know about the ignored file systems. You can see the resulting host vars structure via the Icinga 2 API:

...
                "type": "Host",
                "vars": {
                    "disks": {
                        "disk /": {
                            "disk_partitions": "/",
                            "vars": {
                                "disk_exclude_type": [
                                    "overlay",
                                    "tmpfs",
                                    "nsfs",
                                    "sysfs",
                                    "shm",
                                    "debugfs",
                                    "tracefs",
                                    "nfs"
                                ],
                                "disk_ignore_ereg_path": [
                                    "/run/0/doc"
                                ],
                                "disk_ignore_eregi_path": [
                                    "/run"
                                ],
                                "disk_partitions_excluded": [
                                    "/run",
                                    "/run/0/doc",
                                    "/run/user/0/doc"
                                ]
                            }
                        }
                    },
...

You have to change your configs to:

vars.disks["disk /"] = {
     disk_partitions = "/"
     disk_ignore_eregi_path = [ "/run" ]
     disk_exclude_type = ["overlay","tmpfs","nsfs","sysfs","shm","debugfs","tracefs","nfs"]
     disk_ignore_ereg_path = ["/run/0/doc"]
     disk_partitions_excluded = ["/run","/run/0/doc", "/run/user/0/doc"]
}
