Media: Video Segmentation Prototype

[timarney]

Context

Automatically split videos into smaller parts.

Example: you upload a 2 minute video and we allow you to split it into 15 seconds long segments (so 8 parts in total), putting every segment on its own page.

For this prototype we can create a new feature flag and some simple button (and maybe a range slider to set the segmentation length) somewhere that triggers this action.

Summary

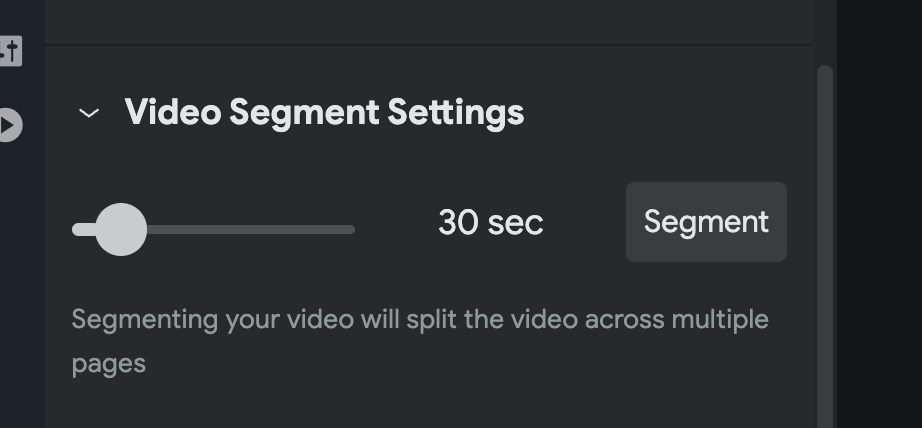

Adds a segment video panel under styles when you select a video

Pressing segment will split the selected video into parts based on the number of seconds selected

Relevant Technical Choices

To-do

User-facing changes

Testing Instructions

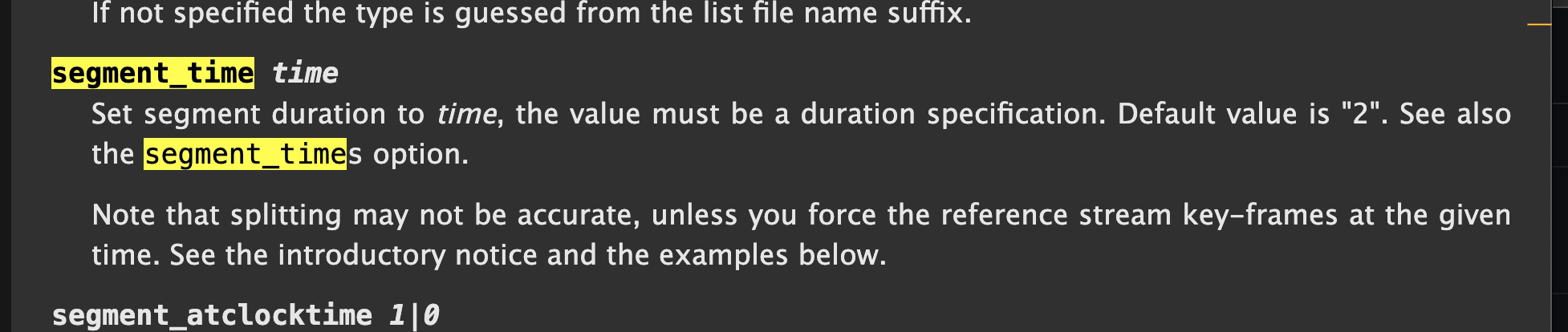

👉 Note: the video is segmented based on the videos keyframes i.e. using a 30 sec segment length will not result in exactly 30 secs segments but rather the segments will be based on the closet keyframe.

Note that splitting may not be accurate, unless you force the reference stream key-frames at the given time. See the introductory notice and the examples below.

• [ ] This is a non-user-facing change and requires no QA

This PR can be tested by following these steps:

• Enable the segment video feature
• upload a video to be segmented
• select the video from the canvas
• visit the style tab / video segment panel
• select the # of seconds to segment the video into
• press segment
• the video should get segmented + split onto multiple pages

Reviews

Does this PR have a security-related impact?

No

Does this PR change what data or activity we track or use?

No

Does this PR have a legal-related impact?

No

Checklist

• [x] This PR addresses an existing issue and I have linked this PR to it in ZenHub
• [x] I have tested this code to the best of my abilities
• [ ] I have verified accessibility to the best of my abilities (docs)
• [ ] I have verified i18n and l10n (translation, right-to-left layout) to the best of my abilities
• [ ] This code is covered by automated tests (unit, integration, and/or e2e) to verify it works as intended (docs)
• [ ] I have added documentation where necessary
• [x] I have added a matching Type: XYZ label to the PR

---

Fixes #12164

[timarney]

@spacedmonkey @swissspidy --- adding this as ready for review now to get some feedback --- still testing on my end.

1. I think the UI (to let the user know something is happening) needs more work --- currently just using a disabled button and the snackbar.

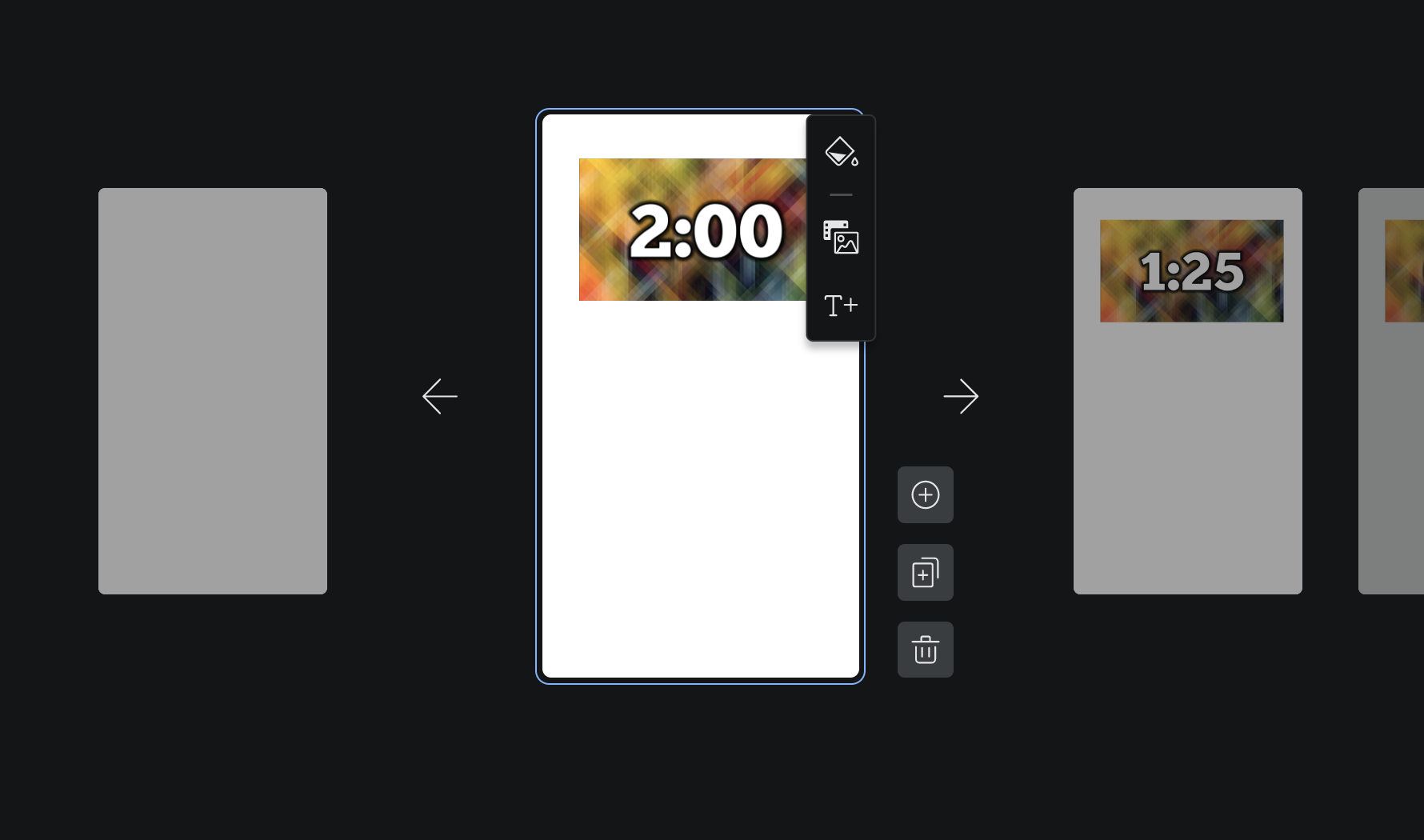

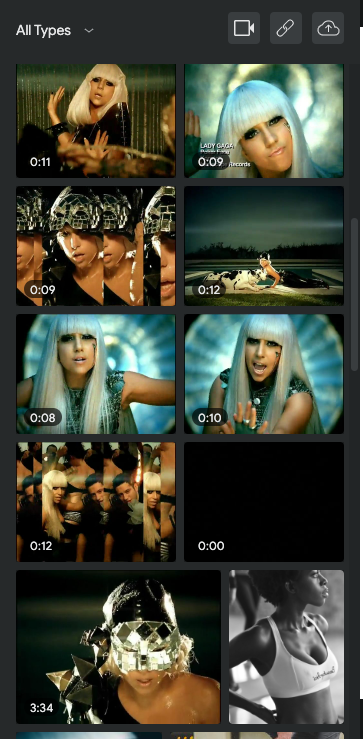

2. I'm seeing some cases where the segmented videos end up out of order --- typically seeing this error when that happens.

---

https://github.com/GoogleForCreators/web-stories-wp/pull/12335#issuecomment-1255910357
