routeDomain isn't honored-server is placed into default route-domain

[arturbarczewski]

Environment

• Application Services Version: 3.33.0
• BIG-IP Version:  BIG-IP 15.1.5

Summary

When i set the routedomain to a route-domain value I expect that the route domain is attached to the pool-member. I use fqdn discovery. The server is placed into the default route-domain instead.

Steps To Reproduce

Steps to reproduce the behavior: See Json

{
    "class": "AS3",
    "action": "deploy",
    "persist": true,
    "declaration": {
        "class": "ADC",
        "schemaVersion": "3.0.0",
        "id": "apphosting_commonservices_dev",
        "label": "label apphosting_commonservices_dev",
        "remark": "as3 config from Do 01 Sep 2022 17:06:25 CEST",
        "apphosting_commonservices_dev_git": {
            "class": "Tenant",
            "vip_apps.dev.xxxx.ch_443": {
                "class": "Application",
                "https_apps.dev.xxxx.ch_443": {
                    "class": "Service_HTTP",
                    "profileTCP": {
                        "bigip": "/Common/tcp"
                    },
                    "profileHTTP": {
                        "use": "http_profile_x_forward"
                    },
                    "persistenceMethods": [],
                    "virtualPort": 443,
                    "virtualAddresses": [
                        {
                            "use": "bgpadvertise_apps.dev.xxxx.ch"
                        }
                    ],
                    "maxConnections": 2000000,
                    "rateLimit": 0,
                    "pool": "pool_ottbigscreen_apps.dev.xxxx.ch",
                    "snat": {
                        "bigip": "/Common/snatpool-traffic-group-21"
                    },
                    "iRules": [],
                    "addressTranslationEnabled": true,
                    "portTranslationEnabled": true,
                    "redirect80": false
                },
                "http_profile_x_forward": {
                    "class": "HTTP_Profile",
                    "xForwardedFor": true
                },
                "bgpadvertise_apps.dev.xxxx.ch": {
                    "class": "Service_Address",
                    "routeAdvertisement": "selective",
                    "virtualAddress": "1.1.1.1%2",
                    "trafficGroup": "traffic-group-2",
                    "arpEnabled": false
                },
                "pool_ottbigscreen_apps.dev.xxxx.ch": {
                    "class": "Pool",
                    "monitors": [
                        {
                            "use": "monitor_apps_dev_xxxx_ch_443_ottbigscreen_serverport_80"
                        }
                    ],
                    "loadBalancingMode": "least-connections-member",
                    "minimumMembersActive": 1,
                    "members": [
                        {
                            "addressDiscovery": "fqdn",
                            "hostname": "tvhdmc1-vaph00.stvd02.scstv",
                            "priorityGroup": 5,
                            "ratio": 71,
                            "routeDomain": 2,
                            "shareNodes": false,
                            "servicePort": 80
                        }
                    ]
                },
                "monitor_apps_dev_xxxx_ch_443_ottbigscreen_serverport_80": {
                    "class": "Monitor",
                    "monitorType": "http",
                    "receive": "test",
                    "send": "GET /PingService/Default.aspx"
                }
            }
        }
    }
}

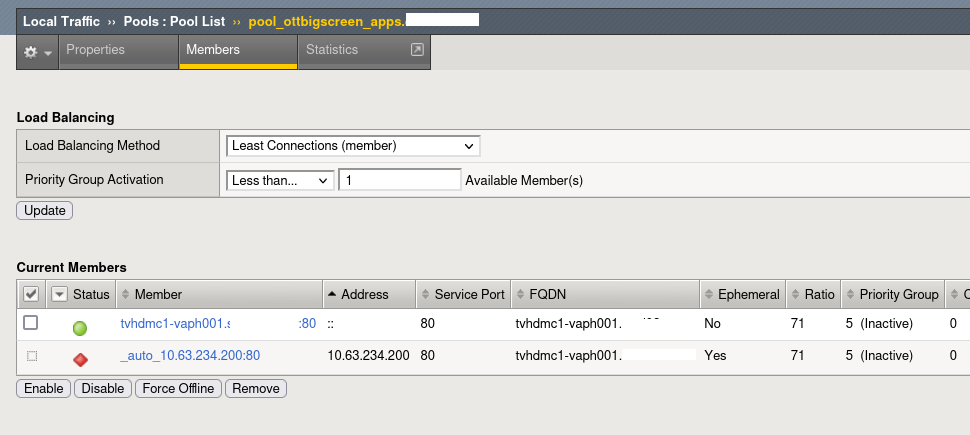

2. Observe the following error response: To proove that the pool member is really in the default partition i checked with tcpdump the self-ip used to monitor the member. And this self-IP belongs to the default route domain. the screenshot doesn't show any percentage symbol to point to the route domain.

Expected Behavior

The pool member should be in the route-domain 2.

Actual Behavior

The pool member in the default route-domain.

[dstokesf5]

Do you see the same behavior with static nodes?

[arturbarczewski]

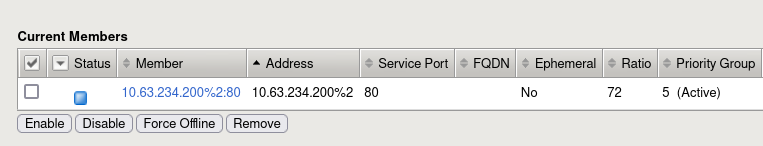

hello when i change to static i see the correct route-domain. The reason for the fqdn is that we want to build a SSL connection from F5 to the pool members, so we need the pool-member name. Artur "members": [ { "addressDiscovery": "static", "priorityGroup": 5, "ratio": 72, "routeDomain": 2, "shareNodes": false, "servicePort": 80, "serverAddresses": [ "10.63.234.200%2" ] }

[sunitharonan]

Hi @arturbarczewski, please contact us at  [email protected] so we can prioritize.

[arturbarczewski]

hi Suntiha so can you confirm that this is a bug? Artur

[sunitharonan]

Hi @arturbarczewski, yes it seems to be a bug. I have added this issue to our internal product backlog as AUTOTOOL-3443. Could you please contact us at [email protected] so we can prioritize.

[arturbarczewski]

hi any news on that topic? I blocks us from enhanving our automation Regards Artur Barczewski

[sunitharonan]

We don't support FQDN nodes for non-default route domains: https://support.f5.com/csp/article/K29925900
