Component/Schema not found

[kevinpallado]

• L5-Swagger Version: #.#.# (composer show | grep l5-swagger) : 8.3.1
• PHP Version (php -v): 8.0.17
• OS: Ubuntu 20.04.3 LTS

Description:

As I am following the steps how it is done here I got this error says

Steps To Reproduce:

Add this to your controller

/**
  * @OA\Get(
  *     path="/accounts",
  *     tags={"Account"},
  *     summary="Get list of accounts",
  *     @OA\Response(
  *          response=200,
  *          description="Successful operation",
  *          @OA\JsonContent(ref="#/components/schemas/AccountsResource")
  *     )
  * )
  */

Run php artisan l5-swagger:generate

[DerManoMann]

Looks like the schema for AccountsResource is not found.

So either you do not have annotated that resource at all or for some reason the annotations for it is in a place where PHP reflection cannot find it. Typically this happens for annotations that are not associated with a class/method or similar. The swagger-php FAQ has some more details.

[kevinpallado]

@DerManoMann I tried to use my own resource replacing

@OA\JsonContent(ref="#/components/schemas/AccountsResource") into

@OA\JsonContent(ref="App\Http\Resources\AccountsResource") and then I run generate all good.

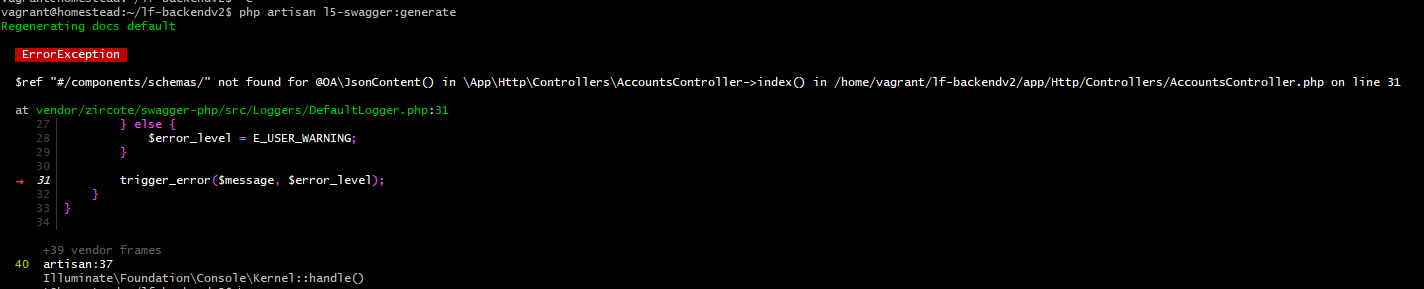

But then have this error

How do I reference my own json resource response?

[DerManoMann]

Using "#/components/schemas/AccountsResource" is the correct way.

My guess as to why this is not working is that the AccountsResource annotation is not found.

One way to prove this would be to take out that reference at all from your controller, so you get a working spec. Then you can inspect the generated JSON/YAML and I would expect that AccountsResource is missing in there.

If that is the case then it would be good if we could see the annotation for that and also if that annotation has a class or other structural element associated. What I mean with that is something like:

/**
 * @OA\Schema()
 */
class AccountsResource { /* .... */}

Without the class AccountsResource { /* .... */} the code will ignore the annotation and therefore it cannot be referenced.

[rickysut]

where to put #/components/schemas/AccountsResource actually when I am using Laravel??

[bhattaxay]

Hii,

@DerManoMann, @DarkaOnLine Can you please show this with some code reference?

[DerManoMann]

All files/classes must be autoloadable and all direcories in the list of scanned directories (which should be the case using L5)

Controller.php

<?php

namespace App\Http\Controllers;

use OpenApi\Annotations as OA;

/**
 * @OA\Get(
 *     path="/accounts",
 *     tags={"Account"},
 *     summary="Get list of accounts",
 *     @OA\Response(
 *          response=200,
 *          description="Successful operation",
 *          @OA\JsonContent(ref="#/components/schemas/AccountsResource")
 *     )
 * )
 */
class Controller {}

AccountsResource.php

<?php

namespace App\Http\Resources;

use OpenApi\Annotations as OA;

/**
 * @OA\Schema()
 */
class AccountsResource {}

Api.php (this is for shared annotations, etc)

<?php

namespace App;

use OpenApi\Annotations as OA;

/**
 * @OA\Info(title="Components", version="0.1")
 */
class Api {}

spec

openapi: 3.0.0
info:
  title: Components
  version: '0.1'
paths:
  /accounts:
    get:
      tags:
        - Account
      summary: 'Get list of accounts'
      responses:
        '200':
          description: 'Successful operation'
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/AccountsResource'
components:
  schemas:
    AccountsResource: {  }
