ENH: Move light source to fix front and back views

[westurner]

trafficstars

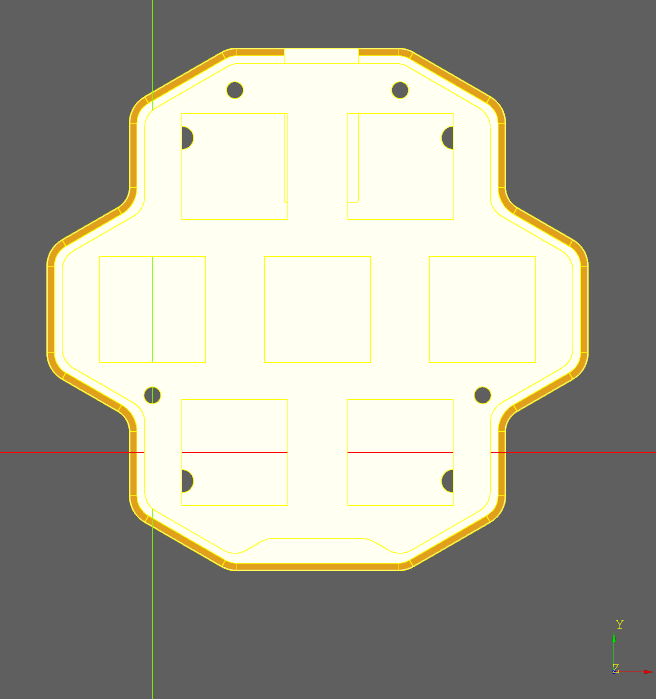

The "front" and "back" views look washed-out: (optionally by configuration?) moving the [point?] light source so that it's non-orthogonal could help make these views more useful by showing shadows to indicate depth and showing the colors specified as arguments to show_object(options=dict(color=(0, 0, 0)))

[s-ol]

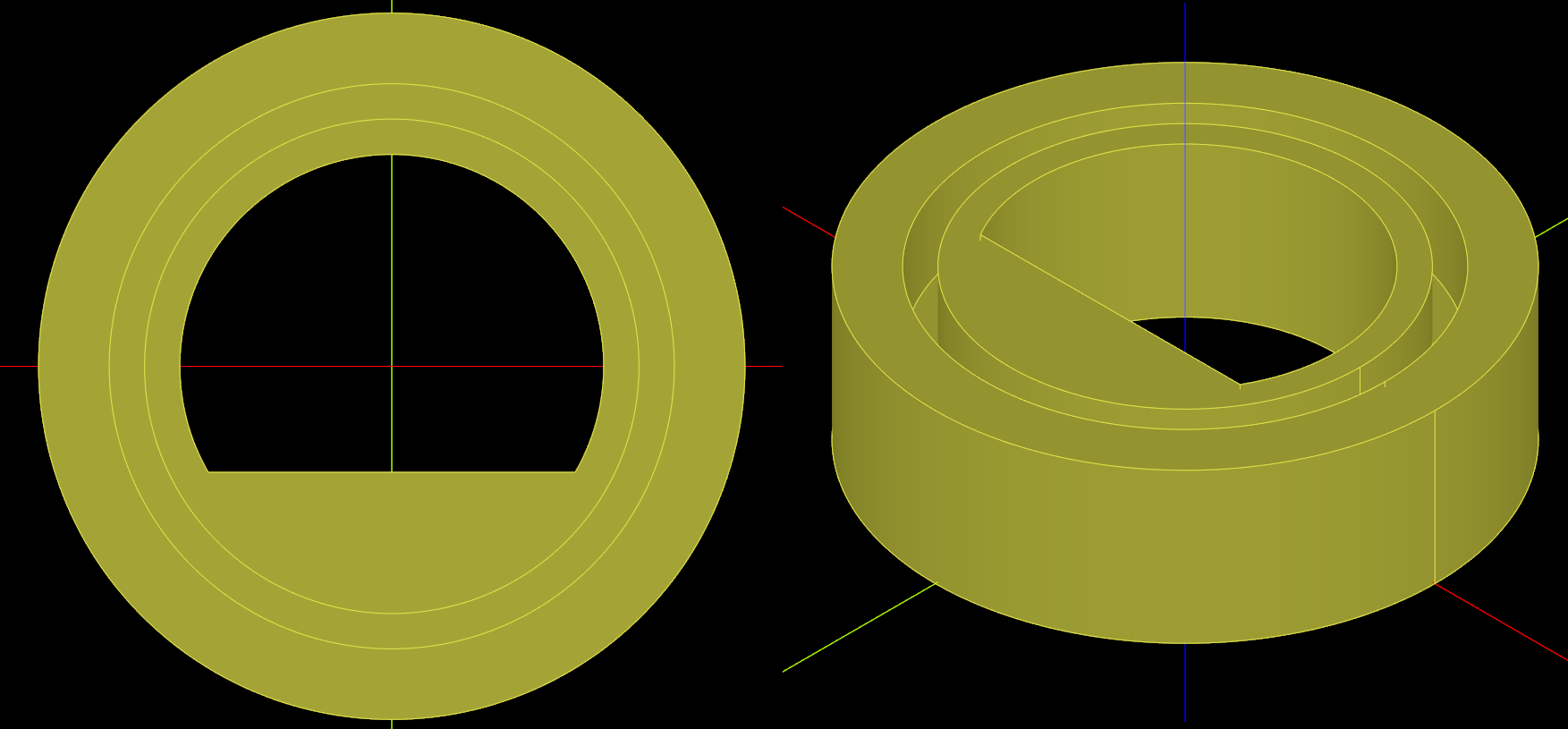

This has also been bothering me, in views like these it is very hard to make out any detail at all:

I think diagonal light should be a more sensible default, but maybe a function similar to show_object could be provided. E.g.

directional_light((-1, -1, -1), colo=(1,1,1))
directional_light((0, 0, -1), color=(.8, 0, 0))

[eyJhb]

Also having this issue. Did there ever come a fix for it?

[voneiden]

I can work on this, however I'd like to see some discussion on how to handle it best. There are two separate things to consider:

1. Material. The default material in OCCT is brass, which is shiny. CQ-Editor doesn't do anything to the material currently. Some other default or custom material might work better (reduce the specular channel). It would also be possibly interesting if one could define custom materials for example with show_object and when doing assemblies.

2. Light source. The OCCT default light source(s) that CQ-Editor also uses consist of an ambient light and a directional "headlight" which is shining white light straight on the object from the direction of the camera viewpoint. It might be interesting if it was possible to define the light scene dynamically.

So a quick fix would be to change the default material to being less shiny, but there's room for further improvement beyond that.

Here's a demo how things look with a barely reflective plastic material:

Edit: Could also consider having a button to turn off the headlight temporarily Edit2: Or just disable the specular reflections:

shading_aspect = ctx.DefaultDrawer().ShadingAspect()
default_material = Graphic3d_MaterialAspect(Graphic3d_NameOfMaterial_Brass)
default_material.SetReflectionModeOff(Graphic3d_TOR_SPECULAR)
shading_aspect.SetMaterial(default_material, Aspect_TOFM_BOTH_SIDE)

[westurner]

Cool. A start at some tasks and possibly different issues depending on complexity estimates from persons with more familiarly with the code base:

• [ ] ENH,DOC: README: How to specify default and per-assembly-object material types
• [ ] ENH: Custom material types
• [ ] ENH,UBY: Button to toggle camera headlight on/off
• [ ] ENH: configure offset for camera headlight
• [ ] ENH: script additional light sources
• [ ] ENH: motion paths for light sources & cameras

On Tue, Jul 26, 2022, 8:38 AM Matti Eiden @.***> wrote:

I can work on this, however I'd like to see some discussion on how to handle it best. There are two separate things to consider:

Material. The default material in OCCT is brass, which is shiny. CQ-Editor doesn't do anything to the material currently. Some other default or custom material might work better (reduce the specular channel). It would also be possibly interesting if one could define custom materials for example with show_object and when doing assemblies. 2.

Light source. The OCCT default light source(s) that CQ-Editor also uses consist of an ambient light and a directional "headlight" which is shining white light straight on the object from the direction of the camera viewpoint. It might be interesting if it was possible to define the light scene dynamically.

So a quick fix would be to change the default material to being less shiny, but there's room for further improvement beyond that.

— Reply to this email directly, view it on GitHub https://github.com/CadQuery/CQ-editor/issues/190#issuecomment-1195427982, or unsubscribe https://github.com/notifications/unsubscribe-auth/AAAMNS5CIGM4JGMNF6LHBXTVV7L3VANCNFSM4RZDBIVQ . You are receiving this because you authored the thread.Message ID: @.***>

[westurner]

• [ ] DOC: README: How to import the assembly(ies) into Blender"
• [ ] ENH: motion over time t as an independent variable; maybe just like the Blender Python API?

On Tue, Jul 26, 2022, 9:36 AM Wes Turner @.***> wrote:

Cool. A start at some tasks and possibly different issues depending on complexity estimates from persons with more familiarly with the code base:

• [ ] ENH,DOC: README: How to specify default and per-assembly-object material types
• [ ] ENH: Custom material types
• [ ] ENH,UBY: Button to toggle camera headlight on/off
• [ ] ENH: configure offset for camera headlight
• [ ] ENH: script additional light sources
• [ ] ENH: motion paths for light sources & cameras

On Tue, Jul 26, 2022, 8:38 AM Matti Eiden @.***> wrote:

I can work on this, however I'd like to see some discussion on how to handle it best. There are two separate things to consider:

Material. The default material in OCCT is brass, which is shiny. CQ-Editor doesn't do anything to the material currently. Some other default or custom material might work better (reduce the specular channel). It would also be possibly interesting if one could define custom materials for example with show_object and when doing assemblies. 2.

Light source. The OCCT default light source(s) that CQ-Editor also uses consist of an ambient light and a directional "headlight" which is shining white light straight on the object from the direction of the camera viewpoint. It might be interesting if it was possible to define the light scene dynamically.

So a quick fix would be to change the default material to being less shiny, but there's room for further improvement beyond that.

— Reply to this email directly, view it on GitHub https://github.com/CadQuery/CQ-editor/issues/190#issuecomment-1195427982, or unsubscribe https://github.com/notifications/unsubscribe-auth/AAAMNS5CIGM4JGMNF6LHBXTVV7L3VANCNFSM4RZDBIVQ . You are receiving this because you authored the thread.Message ID: @.***>

[adam-urbanczyk]

@westurner sounds like something out of scope of CQ-editor ATM. @voneiden that'd be great. Just change the default material and if you have some time add a Default object material configuration option for the material (see widgets.viewer).

[westurner]

Yeah that's more work

• [ ] e.g. Glossy showroom floor might be doable with per-object materials?
• Glossy floor + light/camera paths: Blender

On Tue, Jul 26, 2022, 2:57 PM AU @.***> wrote:

@westurner https://github.com/westurner sounds like something out of scope of CQ-editor ATM. @voneiden https://github.com/voneiden that'd be great. Just change the default material and if you have some time add a Default object material configuration option for the material (see widgets.viewer).

— Reply to this email directly, view it on GitHub https://github.com/CadQuery/CQ-editor/issues/190#issuecomment-1195864175, or unsubscribe https://github.com/notifications/unsubscribe-auth/AAAMNS7SJNEPOJ3EBFCEEPDVWAYIRANCNFSM4RZDBIVQ . You are receiving this because you were mentioned.Message ID: @.***>
