Enhancement request: separate links between same pairs of nodes

[TrevorDArcyEvans]

Currently links between same pairs of nodes are stacked over each other. This has the following issues:

• no way to know how many links there are
• no way to select a specific link

It would be nice to have these links spaced apart 'in some sensible way' (!), possibly with some parameters in DiagramLinkOptions to control spacing

Example: https://blazor-diagrams.zhaytam.com/demos/simple

• create a new link over an existing link
• observe:
  • cannot see how many links are present
  • cannot select a specific link

[zHaytam]

Hello, sorry I thought I already replied to this one... This is a known "problem", and it's a bit hard to tackle since we need to find a generic solution that can handle whatever number of links you throw at it. I'll do some research and see how feasible this is.

[zHaytam]

One solution could be to dynamically add vertices when there are multiple links.

[TrevorDArcyEvans]

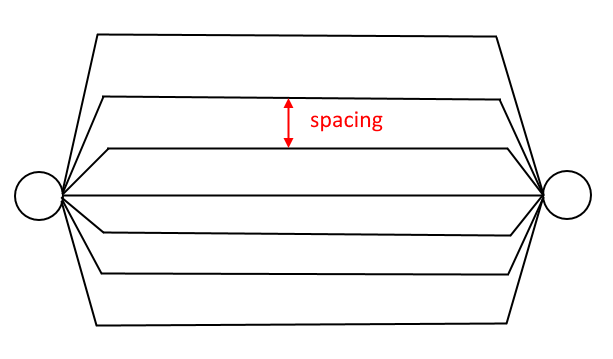

Worked on a product many years ago which rendered multiple links like this:

There was a user accessible parameter which controlled the spread of links.

This only scaled to a handful of multiple links. IIRC, over a threshold number of links, the extra (diagram) links were rendered as a thicker link. A user could then double click to display the extra links etc.
